£6.98
excl. VAT
£8.38 incl. VAT
£8.38
incl. VAT
£6.98 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Additional info | Compression nuts and olives sold seperately |
|---|---|
| Cone angle | 24 ° |
| Connection 1, thread diameter | M22 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M22 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 27.0 mm |

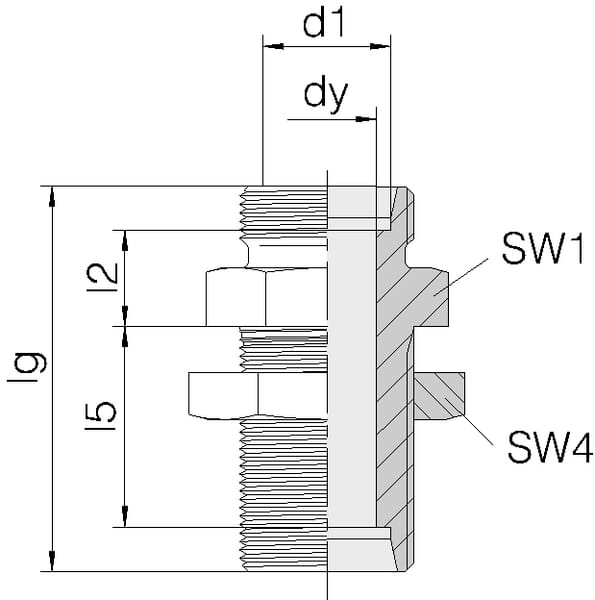

| Connection no 1 diameter | 15 mm |
| d1Connection 2, diameter | 15 mm |
| DIN standard | 80750, 2401, 2353 |
| dyInside diameter | 12 mm |
| i2Connection 2, length | 43 mm |
| IgTotal length | 57 mm |
| Long description | Application range:, Hydraulic hose, Hydraulic pipes, Benefits:, Low risk of leakage, Details:, Connect directly to a metric hose nut or a pre-assembled coupling, Properties:, Mu |
| Material | Steel |
| Max working pressure | 400 BAR |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Hydraulic hose, Hydraulic pipes |
| Pros | Reduced risk of leakage |
| S2Hexagon nut size | 30 mm |
| Series connection 1 | 15L |
| Series connection 2 | 15L |
| Shape | Straight |
| Surface treatment | Nickel-plated, Zinc |
| SW4Connection no 1 wrench size | 27.0 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 129 g |
| Dimensions | 56 × 30 × 30 mm |
| Dangerous goods | No |
