Roll over image to zoom in · Click to see full view
£13.92
excl. VAT
£16.70 incl. VAT
£16.70
incl. VAT
£13.92 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Additional info | Compression nuts and olives sold seperately |
|---|---|
| Cone angle | 24 ° |
| Connection 1, thread diameter | M26 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M26 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 32.0 mm |

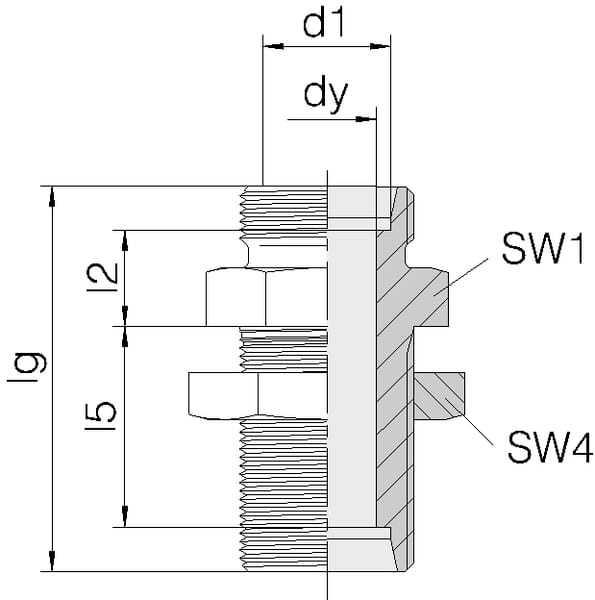

| Connection no 1 diameter | 18 mm |
| d1Connection 2, diameter | 18 mm |
| DIN standard | 80750, 2401, 2353 |
| dyInside diameter | 15 mm |
| i2Connection 2, length | 46 mm |
| IgTotal length | 61 mm |
| Long description | Application range:, Hydraulic hose, Hydraulic pipes, Benefits:, Low risk of leakage, Details:, Connect directly to a metric hose nut or a pre-assembled coupling, Properties:, Mu |
| Material | Steel |
| Max working pressure | 400 BAR |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Hydraulic hose, Hydraulic pipes |
| Pros | Reduced risk of leakage |
| S2Hexagon nut size | 36 mm |
| Series connection 1 | 18L |
| Series connection 2 | 18L |
| Shape | Straight |
| Surface treatment | Nickel-plated, Zinc |
| SW4Connection no 1 wrench size | 32.0 mm |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 199 g |
| Dimensions | 124 × 58 × 18 mm |
| Dangerous goods | No |
