Roll over image to zoom in · Click to see full view
£43.90
excl. VAT
£52.68 incl. VAT
£52.68
incl. VAT
£43.90 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Additional info | Compression nuts and olives sold seperately |
|---|---|
| Cone angle | 24 ° |
| Connection 1, thread diameter | M42 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M42 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 50.0 mm |

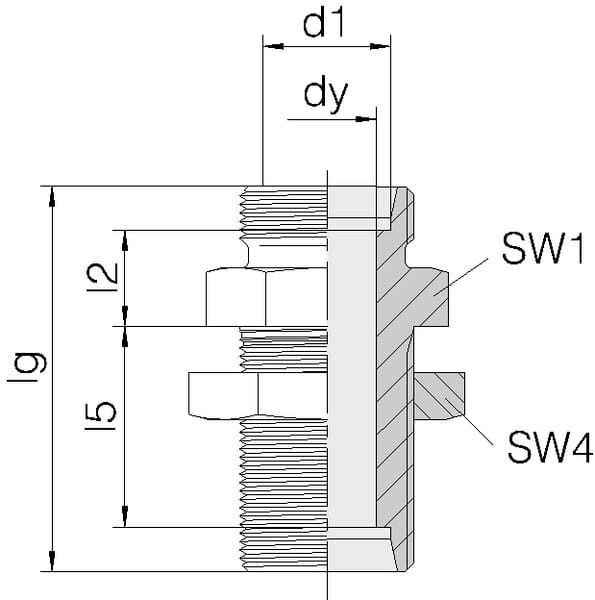

| Connection no 1 diameter | 30 mm |
| d1Connection 2, diameter | 30 mm |
| DIN standard | 80750, 2401, 2353 |
| dyInside diameter | 25 mm |
| i2Connection 2, length | 59 mm |
| IgTotal length | 86 mm |
| Material | Steel |
| Max working pressure | 400 BAR |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Hydraulic hose, Hydraulic pipes |
| Pros | Reduced risk of leakage |
| S2Hexagon nut size | 50 mm |
| Series connection 1 | 30S |
| Series connection 2 | 30S |
| Shape | Straight |
| Surface treatment | Nickel-plated, Zinc |
| SW4Connection no 1 wrench size | 50.0 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 635 g |
| Dimensions | 86 × 58 × 58 mm |
| Dangerous goods | No |
