£41.42
excl. VAT
£49.70 incl. VAT
£49.70
incl. VAT
£41.42 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Additional info | Compression nuts and olives sold seperately |
|---|---|
| Cone angle | 24 ° |
| Connection 1, thread diameter | M45 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M45 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 50.0 mm |

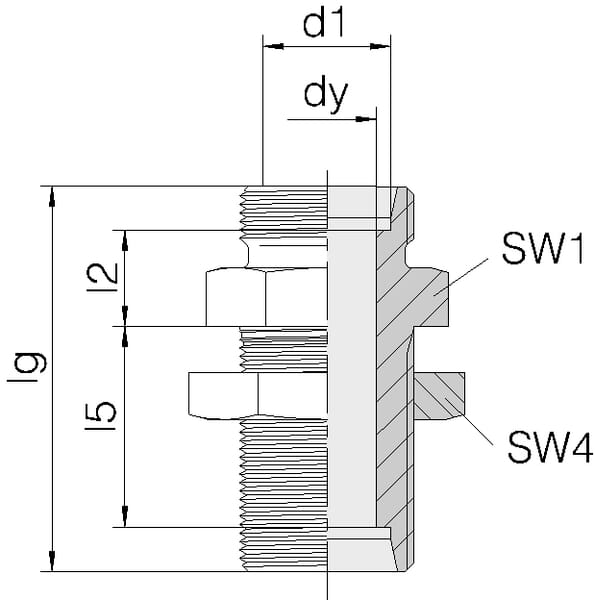

| Connection no 1 diameter | 35 mm |
| d1Connection 2, diameter | 35 mm |
| DIN standard | 80750, 2401, 2353 |
| dyInside diameter | 30 mm |
| i2Connection 2, length | 55 mm |
| IgTotal length | 76 mm |
| Material | Steel |
| Max working pressure | 250 BAR |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Hydraulic hose, Hydraulic pipes |
| Pros | Reduced risk of leakage |
| S2Hexagon nut size | 55 mm |
| Series connection 1 | 35L |
| Series connection 2 | 35L |
| Shape | Straight |
| Surface treatment | Nickel-plated, Zinc |
| SW4Connection no 1 wrench size | 50.0 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 555 g |
| Dimensions | 76 × 58 × 58 mm |
| Dangerous goods | No |
You might also like
BPA000262820

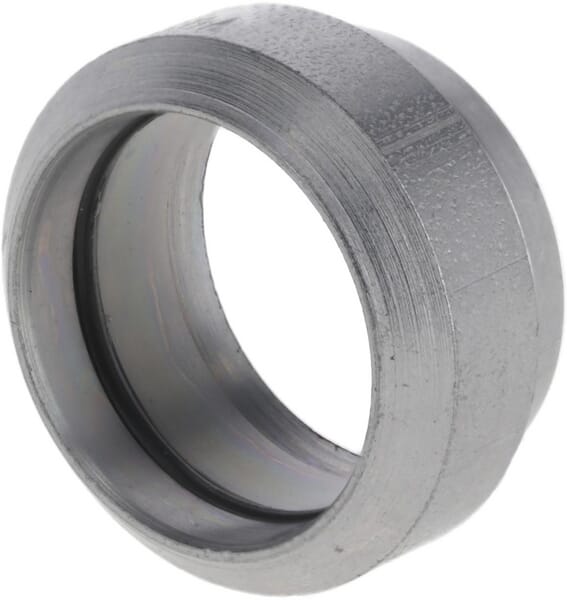

Voss Cutting ring ES4 25S ES425S
£9.79 excl.
£11.75 incl.
In stock
Expected to ship on Friday 2 October
BPA000241185
Voss CELAG17NE adjustable coupling CELAG17NE
£11.61 excl.
£13.93 incl.
In stock
Expected to ship on Friday 2 October
BPA000288471
Voss Coupling 12S 3/8NPT GEV12S38NPT
£5.25 excl.
£6.30 incl.
In stock
Expected to ship on Friday 2 October
BPA000258253
Voss Coupling 25S 1NPT EGESD25S1NPT
£52.03 excl.
£62.44 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000288490
Voss Coupling 15L 3/4UNF GEV15L34UNF
£18.73 excl.
£22.48 incl.
In stock
Expected to ship on Friday 2 October
BPA000348156

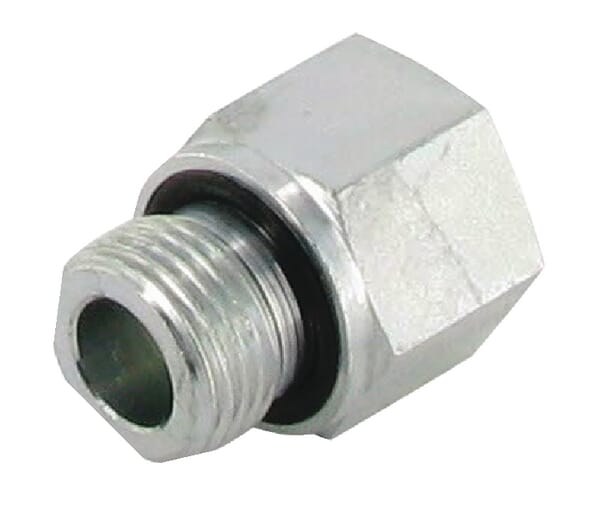

Voss Reducing Adaptor M/F (CS) R3/8 R1/2 REDR3812WD
