Roll over image to zoom in · Click to see full view
£10.49
excl. VAT
£12.59 incl. VAT
£12.59
incl. VAT
£10.49 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Connection 1, thread diameter | M20 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 12 mm |
| Connection 2, thread diameter | M20 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 24.0 mm |
| Connection no 1 diameter | 12 mm |
| DIN standard | 2401, 2353 |
| Inside diameter side 2 | 12 mm |
| Max working pressure | 630 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance, Angled coupling |
| S2Connection no 1 wrench size | 24.0 mm |
| Series connection 1 | 12S |
| Shape | Elbow 90° |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 210 g |
| Dimensions | 55 × 25 × 55 mm |
| Dangerous goods | No |
You might also like
BPA000268351

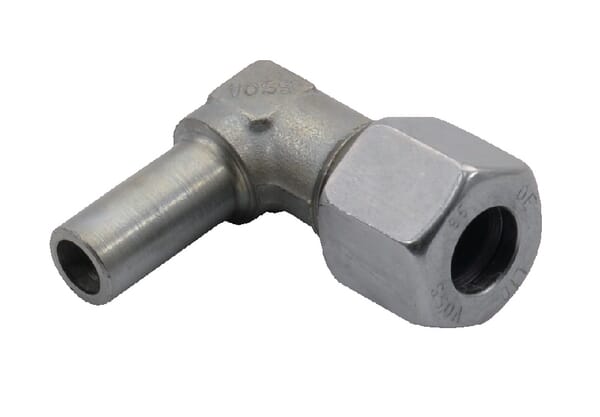

Voss Adjustable stud with nut 10L EWV10L
£6.95 excl.
£8.34 incl.
In stock
Expected to ship on Friday 2 October
BPA000258265

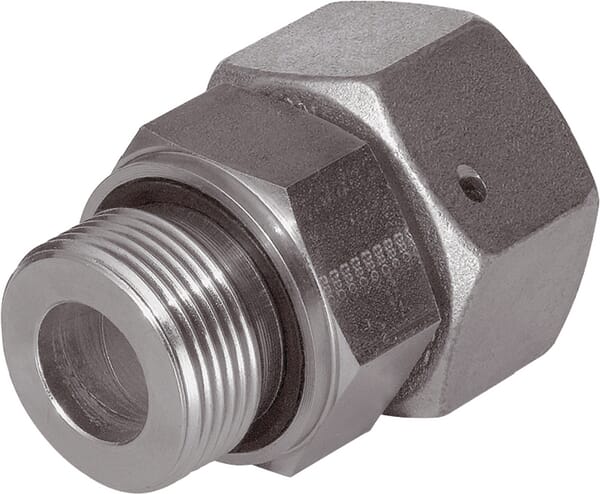

Voss Coupling 30S R1-1/4 EGESD30SR114WD
£30.63 excl.
£36.76 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000287836
Voss Cut ring coupling 10S M18x1,5 - BSP 1/4" - Male GES10SR14
£3.62 excl.
£4.34 incl.
In stock
Expected to ship on Friday 2 October
BPA000355147
Voss Angled banjo coupling RSWS28LR1
£64.49 excl.
£77.39 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000396086

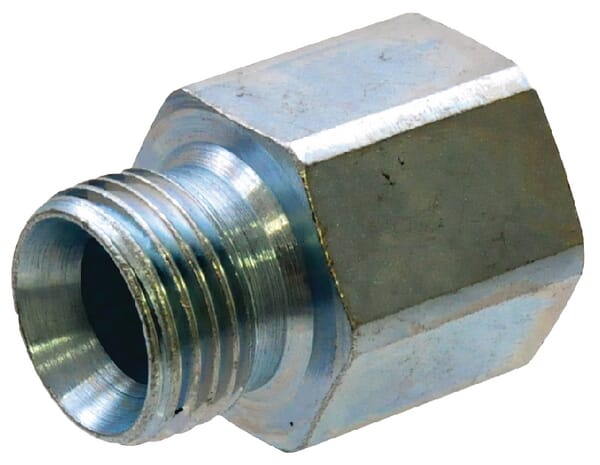

Voss Extens. nipple 1/8 BSP in/out VRBV02
£2.60 excl.
£3.12 incl.
In stock
Expected to ship on Friday 2 October
BPA000258503

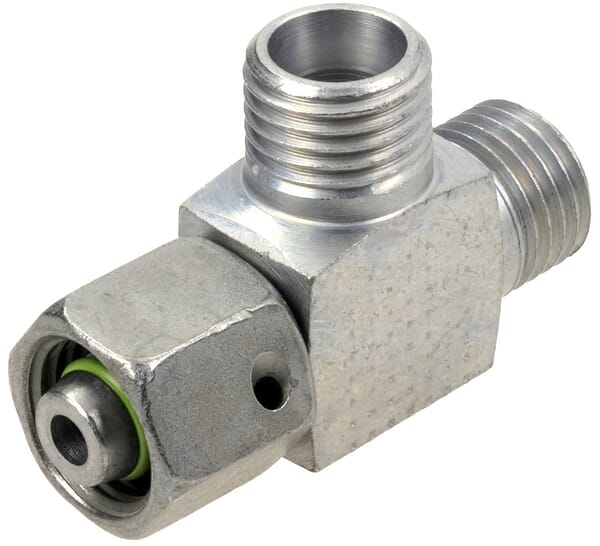

Voss Swivel T piece union F-M-M 10S ELSD10S
