Product details
| Body height | 24 mm |
|---|---|
| Connection 1, thread diameter | M24 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M22 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type - male/female | Male |
| Connection no 1 diameter | 16 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| Includes | Coupling, Cutting ring, Nut |
| ISO standard | 228 |

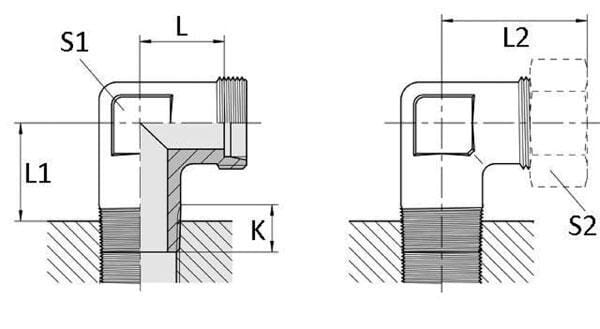

| KConnection no 1 thread length | 14 mm |
| L2Connection 2, centre to end distance | 22.5 mm |
| L2Connection no 1 center to end distance | 43 mm |
| Max working pressure | 400 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance, complete coupling |
| S1Connection no 1 wrench size | 30.0 mm |
| Series connection 1 | 16S |
| Shape | Elbow 90° |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 238 g |
| Dimensions | 60 × 45 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000288507
Voss Coupling 16S 7/8UNF GEV16S78UNF
£26.21 excl.
£31.45 incl.
In stock
Expected to ship on Monday 5 October
BPA000355141
Voss Angled banjo coupling RSWS22LM26
£36.76 excl.
£44.11 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000258294

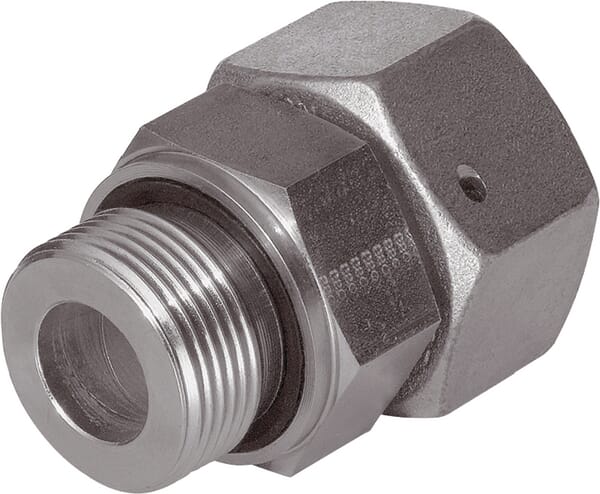

Voss Coupling 8S R1/4 EGESD8SR14WD
