Roll over image to zoom in · Click to see full view
£15.20
excl. VAT
£18.24 incl. VAT
£18.24
incl. VAT
£15.20 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 1, thread diameter | 1/2 Inch |
|---|---|
| Connection 1, thread type | BSP |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 16 mm |
| Connection 2, thread diameter | M24 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type - male/female | Female |
| Connection no 1 center to end distance | 24.5 mm |
| Connection no 1 diameter | 16 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| Includes | Coupling, Cutting ring, Gland nuts |
| ISO standard | 228 |

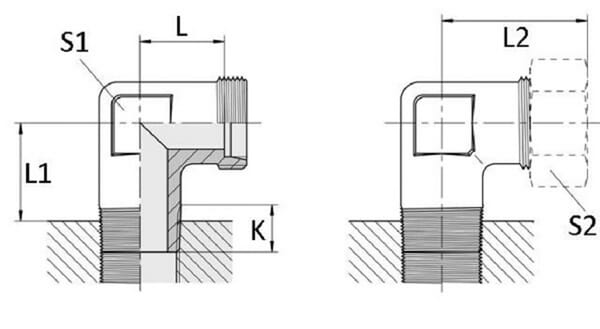

| L1Connection no 1 thread length | 14 mm |
| Max working pressure | 400 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| S2Connection no 1 wrench size | 30.0 mm |
| Series connection 1 | 16S |
| Shape | Elbow 90° |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 231 g |
| Dimensions | 57 × 44 × 34 mm |
| Dangerous goods | No |
