£18.65
excl. VAT
£22.38 incl. VAT
£22.38
incl. VAT
£18.65 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Connection 1, thread diameter | M30 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 22 mm |
| Connection 2, thread diameter | M30 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 36.0 mm |
| Connection no 1 diameter | 22 mm |
| DIN standard | 2401, 2353 |
| Inside diameter side 2 | 22 mm |
| Max working pressure | 250 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance, Angled coupling |
| S2Connection no 1 wrench size | 36.0 mm |
| Series connection 1 | 22L |
| Shape | Elbow 90° |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 360 g |
| Dimensions | 173 × 126 × 11 mm |
| Dangerous goods | No |
You might also like
BPA000268187
Voss Adjustable male stud 15L ETVD15L
£20.28 excl.
£24.34 incl.
In stock
Expected to ship on Monday 5 October
BPA000288303
Voss Cutting ring coupling with hex, 6L — 1/8 BSPT GES6LRK18
£5.57 excl.
£6.68 incl.
In stock
Expected to ship on Monday 5 October
BPA000288125
Voss Coupling 22L M27x2 GES22LM27
£38.04 excl.
£45.65 incl.
In stock
Expected to ship on Monday 5 October
BPA000355165
Voss Angled banjo coupling RSWS6SM12WD
£14.60 excl.
£17.52 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000374677
Voss T piece 20S TV20S
£26.65 excl.
£31.98 incl.
In stock
Expected to ship on Monday 5 October

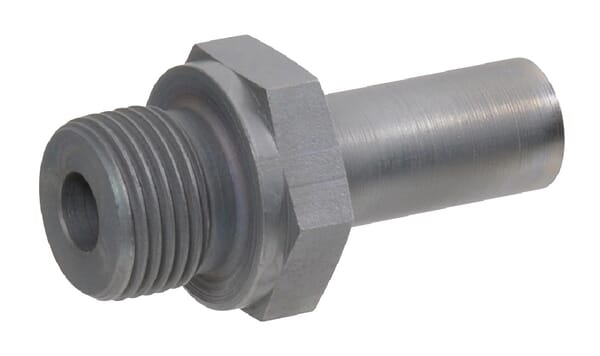

BPA000258151
