Roll over image to zoom in · Click to see full view
£65.10
excl. VAT
£78.12 incl. VAT
£78.12
incl. VAT
£65.10 excl. VAT
In stock
Expected to ship on Monday 5 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.

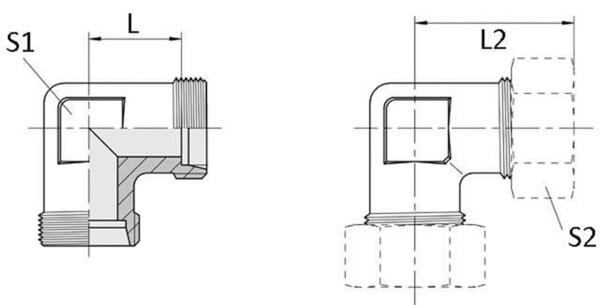

Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Connection 1, thread diameter | M52 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 42 mm |
| Connection 2, thread diameter | M52 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 60.0 mm |
| Connection no 1 diameter | 42 mm |
| DIN standard | 2401, 2353 |
| Inside diameter side 2 | 42 mm |
| Max working pressure | 250 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance, Angled coupling |
| S2Connection no 1 wrench size | 60.0 mm |
| Series connection 1 | 42L |
| Shape | Elbow 90° |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1312 g |
| Dimensions | 100 × 100 × 65 mm |
| Dangerous goods | No |
You might also like
BPA000393096
Voss Nipple 1/2 BSP x 3/8 BSPT VNBBT0806
£2.90 excl.
£3.48 incl.
In stock
Expected to ship on Monday 5 October
BPA000287445
Voss Coupling 10L 6L GV106L
£6.90 excl.
£8.28 incl.
In stock
Expected to ship on Monday 5 October
BPA000288087
Voss Cut ring coupling 18L M26x1,5 - BSP 3/8" - Male GES18LR38
£8.55 excl.
£10.26 incl.
In stock
Expected to ship on Monday 5 October
BPA000348282
Voss 42L 22L coupling REDSD4222L
£37.57 excl.
£45.08 incl.
In stock
Expected to ship on Monday 5 October
BPA000258500

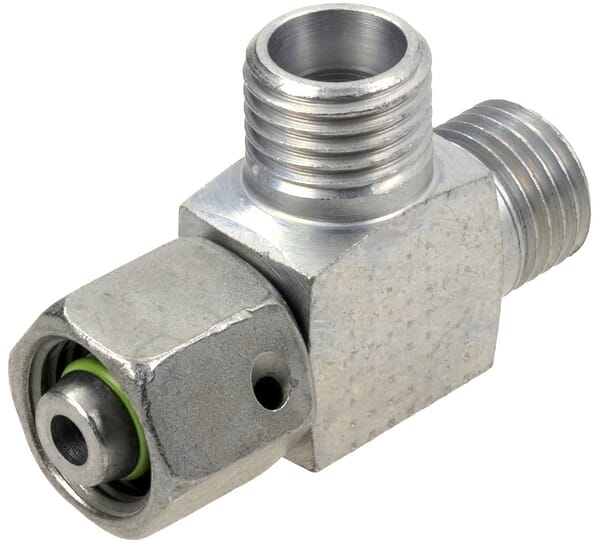

Voss Swivel T piece union F-M-M 10L ELSD10L
