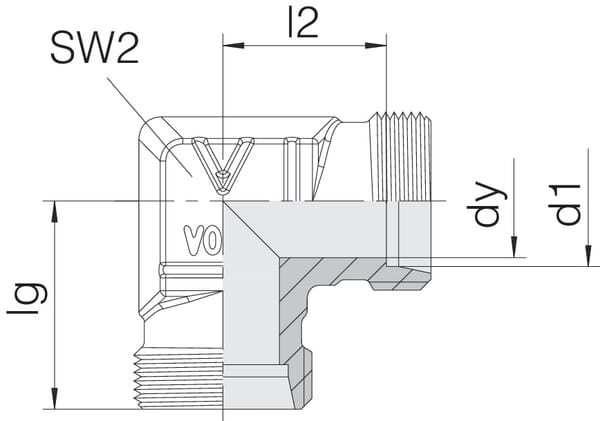

Product details
| Connection 1, thread diameter | M12 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 6 mm |
| Connection 2, length | 12 mm |
| Connection 2, thread diameter | M12 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 14.0 mm |
| Connection no 1 center to end distance | 12 mm, 19 mm |
| Connection no 1 diameter | 6 mm |
| DIN standard | 2401, 2353 |
| Inside diameter side 2 | 6 mm |
| L2Connection centre to insert distance | 12 mm |
| Max working pressure | 500 BAR |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Hydraulic hose, Hydraulic pipes |
| Pros | Reduced risk of leakage |
| S2Connection no 1 wrench size | 14.0 mm |
| Series connection 1 | 6L |
| Shape | Elbow 90° |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 29 g |
| Dimensions | 25 × 25 × 12 mm |
| Dangerous goods | No |
