£2.62
excl. VAT
£3.14 incl. VAT
£3.14
incl. VAT
£2.62 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details

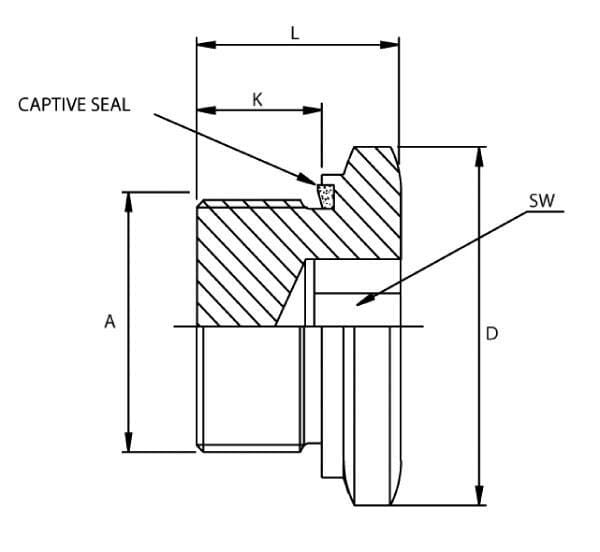

| AThread diameter | 10 mm |
|---|---|
| Connection 1, type | Thread |
| DOutside diameter | 14 mm |
| Height | 12 mm |
| KThread length | 8 mm |
| LLength | 12.3 mm |
| Material | Steel |
| Max working pressure | 400 BAR |
| Mounting diameter | 14 mm |
| Product details | Viton seal available on request |
| Sealing material | Nitrile rubber [NBR] |
| Series | N |
| Surface treatment | Nickel, Zinc |
| SWWrench/Spanner size | 5 mm |
| Thread pitch | 1.00 mm |
| Thread type | Metric |
| Type | Swivel plug |
| Unit | Each |
| Weight per 100 pcs | 0.7 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 7 g |
| Dimensions | 13 × 12 × 10 mm |
| Dangerous goods | No |
You might also like
BPA000396304
Voss End Plug (Cutting Ring) 8L M14x1.5 VSK8L
£3.18 excl.
£3.82 incl.
In stock
Expected to ship on Friday 2 October
BPA000396077

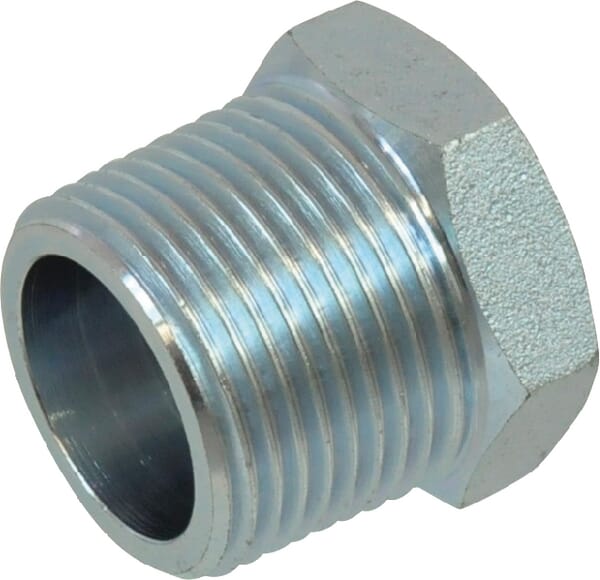

Voss Nipple male/female 1 BSP thread x1/2 BSP VRBTB1608
£11.36 excl.
£13.63 incl.
In stock
Expected to ship on Friday 2 October
BPA000279865
Voss Coupling 12S R3/8 GAS12SR38
£6.32 excl.
£7.58 incl.
In stock
Expected to ship on Friday 2 October
BPA000316266

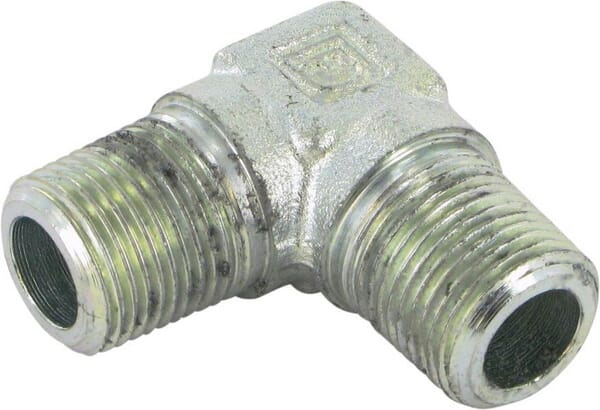

Voss Elbow 3/8 BSPT MMV9006BT
£9.77 excl.
£11.72 incl.
In stock
Expected to ship on Friday 2 October
BPA000348117
Voss Reducing Adaptor M/F R1-1/4 R3/4 REDR11434WD
£9.38 excl.
£11.26 incl.
In stock
Expected to ship on Friday 2 October
BPA000258165

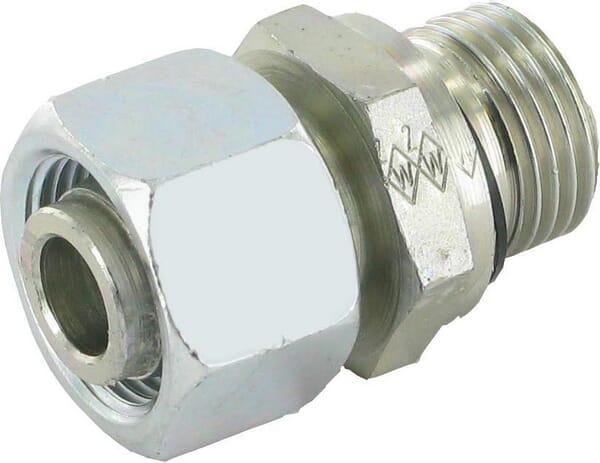

Voss Coupling 15L R1/2 EGES15LR12WDSV
