£35.37
excl. VAT
£42.44 incl. VAT
£42.44
incl. VAT
£35.37 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 1, thread diameter | M22 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 15 mm |
| Connection 2, thread diameter | M22 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 27.0 mm |
| Connection 3, diameter | 15 mm |
| Connection 3, thread diameter | M22 |
| Connection 3, thread pitch | 1.50 mm |
| Connection 3, thread type | Metric |
| Connection 3, type | Cutting ring |
| Connection 3, type - male/female | Female |
| Connection 4, diameter | 15 mm |
| Connection 4, thread diameter | M22 |
| Connection 4, thread pitch | 1.50 mm |
| Connection 4, thread type | Metric |
| Connection 4, type | Cutting ring |
| Connection 4, type - male/female | Female |
| Connection no 1 diameter | 15 mm |
| DIN standard | 2401, 2353 |
| Inside diameter | 15 mm |

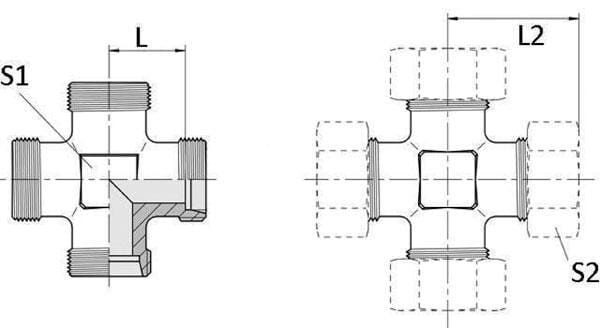

| L2Connection no 1 center to end distance | 21 mm, 56 mm |
| Max working pressure | 315 BAR |
| Pipe diameter | 15 mm |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance |
| Pros | Reduced risk of leakage |
| S1Body height | 19 mm |
| S1Connection no 1 wrench size | 27.0 mm |
| Series | L |
| Shape | Cross |
| Surface treatment | Nickel-plated, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 126 g |
| Dimensions | 55 × 55 × 20 mm |
| Dangerous goods | No |
You might also like
BPA000288525
Voss Coupling 18L R3/8 GEV18LR38
£13.01 excl.
£15.61 incl.
In stock
Expected to ship on Friday 2 October
BPA000243533
Voss Elbow coupling CAG21NU CAG21NU
£11.98 excl.
£14.38 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000287815
Voss Coupling 10L R1/2 GES10LRK12
£9.65 excl.
£11.58 incl.
In stock
Expected to ship on Friday 2 October
BPA000348121
Voss Reducing Adaptor M/F (CS) R1/2 R1-1/4 REDR12114WD
£47.94 excl.
£57.53 incl.
In stock
Expected to ship on Friday 2 October
BPA000287200

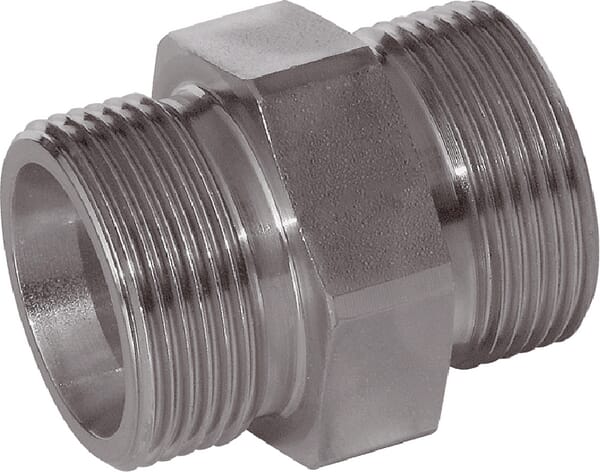

Voss Straight Adaptor (No M/R) 25S 16S GS2516S
