Roll over image to zoom in · Click to see full view
£23.79
excl. VAT
£28.55 incl. VAT
£28.55
incl. VAT
£23.79 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 1, thread diameter | M12 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 6 mm |
| Connection 2, thread diameter | M12 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 14.0 mm |
| Connection 3, diameter | 6 mm |
| Connection 3, thread diameter | M12 |
| Connection 3, thread pitch | 1.50 mm |
| Connection 3, thread type | Metric |
| Connection 3, type | Cutting ring |
| Connection 3, type - male/female | Female |
| Connection 4, diameter | 6 mm |
| Connection 4, thread diameter | M12 |
| Connection 4, thread pitch | 1.50 mm |
| Connection 4, thread type | Metric |
| Connection 4, type | Cutting ring |
| Connection 4, type - male/female | Female |
| Connection no 1 diameter | 6 mm |
| DIN standard | 2401, 2353 |
| Inside diameter | 6 mm |

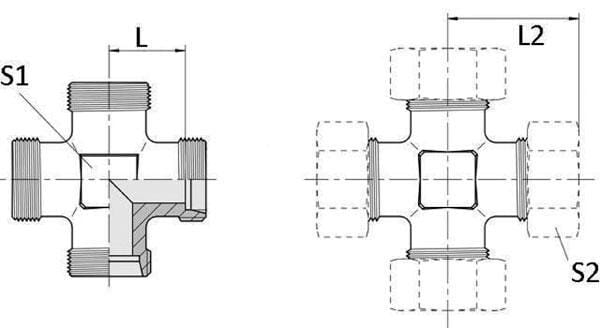

| L2Connection no 1 center to end distance | 12 mm |
| Max working pressure | 315 BAR |
| Pipe diameter | 6 mm |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance |
| Pros | Reduced risk of leakage |
| S1Body height | 12 mm |
| S1Connection no 1 wrench size | 14.0 mm |
| Series | L |
| Shape | Cross |
| Surface treatment | Nickel-plated, Zinc |
| Total length | 38 mm |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 39 g |
| Dimensions | 40 × 40 × 12 mm |
| Dangerous goods | No |
You might also like
BPA000348328
Voss Coupling 18L 12L REDVD1812L
£9.77 excl.
£11.72 incl.
In stock
Expected to ship on Friday 2 October
BPA000400005
Voss 8S coupling WSS8S
£12.46 excl.
£14.95 incl.
In stock
Expected to ship on Friday 2 October
BPA000232688
Voss Weldcoupling 42L ASV42L
£28.57 excl.
£34.28 incl.
In stock
Expected to ship on Friday 2 October
BPA000374273
Voss T piece 10S R3/8 TEV10SR38
£27.40 excl.
£32.88 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000253439
Voss Double nipple 3/8 BSPx3/8 BSPT DNBBT06
£2.15 excl.
£2.58 incl.
In stock
Expected to ship on Friday 2 October

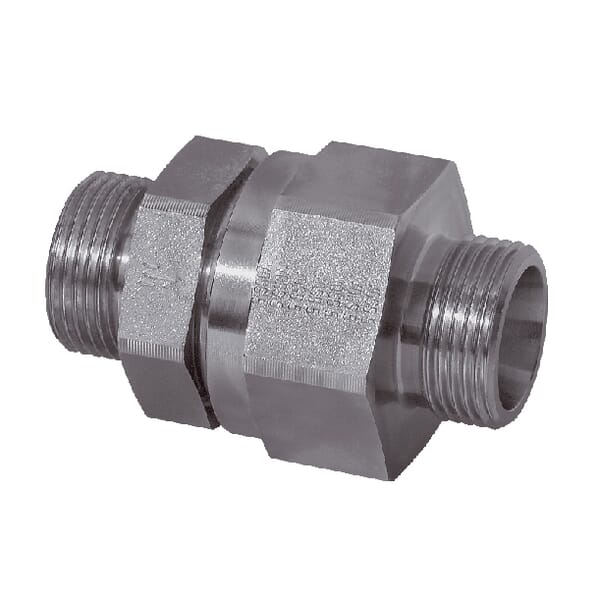

BPA000352707
