Roll over image to zoom in · Click to see full view
£28.14
excl. VAT
£33.77 incl. VAT
£33.77
incl. VAT
£28.14 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 1, thread diameter | M12 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 6 mm |
| Connection 2, thread diameter | M12 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Female |
| Connection 3, diameter | 6 mm |
| Connection 3, thread diameter | M12 |
| Connection 3, thread pitch | 1.50 mm |
| Connection 3, thread type | Metric |
| Connection 3, type | Cutting ring |
| Connection 3, type - male/female | Female |
| Connection 4, diameter | 6 mm |
| Connection 4, thread diameter | M12 |
| Connection 4, thread pitch | 1.50 mm |
| Connection 4, thread type | Metric |
| Connection 4, type | Cutting ring |
| Connection 4, type - male/female | Female |
| Connection no 1 diameter | 6 mm |
| DIN standard | 2401, 2353 |
| Includes | Coupling, Cutting rings, Gland nuts |
| Inside diameter | 6 mm |

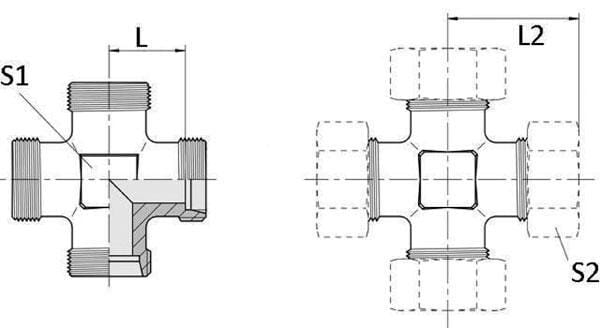

| L2Connection no 1 center to end distance | 27 mm |
| LConnection centre to insert distance | 12 mm |
| Max working pressure | 315 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance - Hydraulic hose, Hydraulic pipes |
| Pros | 2S cutting ring |
| S1Body height | 12 mm |
| S1Connection no 1 wrench size | 14.0 mm |
| Series | 6L |
| Shape | Cross |
| Surface treatment | Nickel-plated, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 90 g |
| Dimensions | 63 × 63 × 17 mm |
| Dangerous goods | No |
