Roll over image to zoom in · Click to see full view
£13.10
excl. VAT
£15.72 incl. VAT
£15.72
incl. VAT
£13.10 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 1, thread diameter | M12 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | O-ring cone |
| Connection 1, type - male/female | Female |
| Dedicated pipe wall thickness | 1 mm |
| Max working pressure | 500 BAR |
| Pipe diameter | 6 mm |

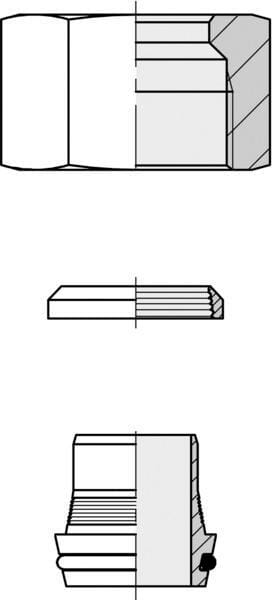

| Product details | Can be applied where cutting ring connections are not sufficient, Can handle extreme loads thanks to 10° flared fitting, Can only be installed with a pre-assembly machine, Assembly in accordance with assembly instructions, Zinc/nickel surface treatment, Complete set (flared fitting, clamping ring and nut) |
| Pros | Pre-assembled coupling with O-ring, Multiple corrosion resistance thanks to standard galvanising, For direct mounting with L-cutting ring connection (body) |
| Series | L |
| Shape | Straight |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 18 g |
| Dimensions | 60 × 20 × 15 mm |
| Dangerous goods | No |
