£35.88
excl. VAT
£43.06 incl. VAT
£43.06
incl. VAT
£35.88 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 1, type | Cutting ring |
|---|---|
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | M16 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 3, diameter | 12 mm |
| Connection 3, type | Cutting ring |
| Connection 3, type - male/female | Female |
| Connection no 1 diameter | 12 mm |
| DIN standard | 2401 |

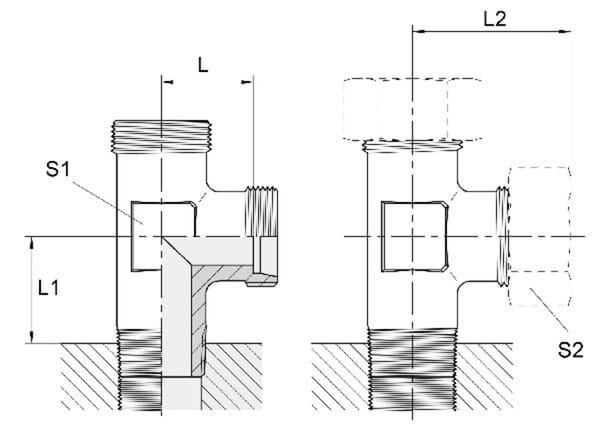

| L1Connection 2, centre to end distance | 20 mm |
| L2Connection no 1 center to end distance | 32 mm |
| LConnection 3 centre to end distance | 17 mm |
| Max working pressure | 315 BAR |
| Pipe diameter | 12 mm |
| S1Body height | 19 mm |
| S2Connection no 1 wrench size | 22.0 mm |
| Series | L |
| Shape | Tee (T) |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 157 g |
| Dimensions | 64 × 47 × 27 mm |
| Dangerous goods | No |
You might also like
BPA000396228
Voss End Plug (Cutting Ring) 8LL VS8LL
£10.85 excl.
£13.02 incl.
In stock
Expected to ship on Friday 2 October
BPA000262809
Voss Cutting ring ES4 6LS ES406L
£1.50 excl.
£1.80 incl.
In stock
Expected to ship on Friday 2 October

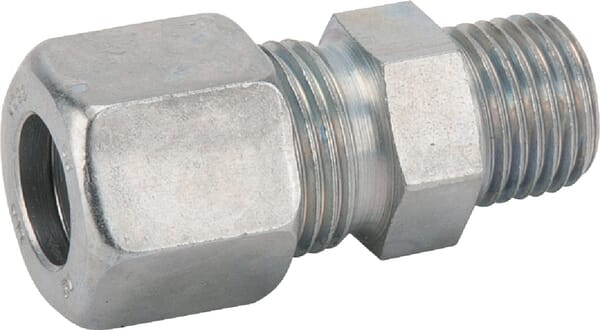

BPA000288623
