Product details
| Connection 1, thread diameter | 1/4 Inch |
|---|---|
| Connection 1, thread type | BSP |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 8 mm |
| Connection 2, thread diameter | M14 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 14.0 mm |
| Connection 3, diameter | 8 mm |
| Connection 3, thread diameter | M14 |
| Connection 3, thread pitch | 1.50 mm |
| Connection 3, thread type | Metric |
| Connection 3, type | Thread |
| Connection 3, type - male/female | Male |
| Connection no 1 thread length | 9.3 mm |
| Inside diameter | 6 mm |

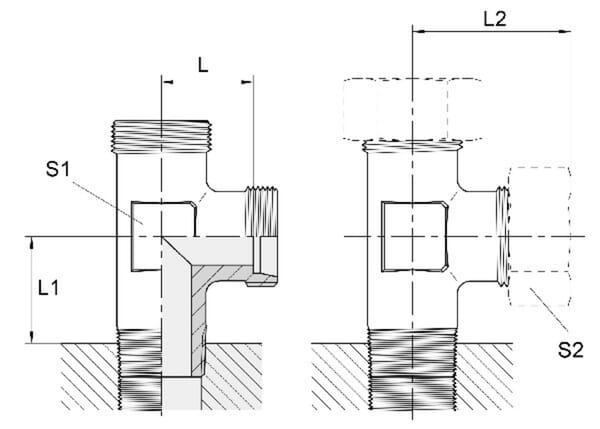

| L1Connection 2, centre to end distance | 18 mm |
| L2Connection no 1 center to end distance | 29 mm |
| LConnection 3 centre to end distance | 14 mm |
| Length | 47 mm |
| Max working pressure | 315 BAR |
| Pipe diameter | 8 mm |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling |
| Pros | Multiple corrosion resistance, Reduced risk of leakage |
| S1Body height | 14 mm |
| S2Connection no 1 wrench size | 17.0 mm |
| Series | L |
| Shape | Tee (T) |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 55 g |
| Dimensions | 46 × 27 × 13 mm |
| Dangerous goods | No |
You might also like
BPA000400077
Voss Elbow Coupling 15L WV15L
£11.05 excl.
£13.26 incl.
In stock
Expected to ship on Monday 5 October
BPA000287771
Voss Supports 10L M12 GES10LM12WD
£6.46 excl.
£7.75 incl.
In stock
Expected to ship on Monday 5 October

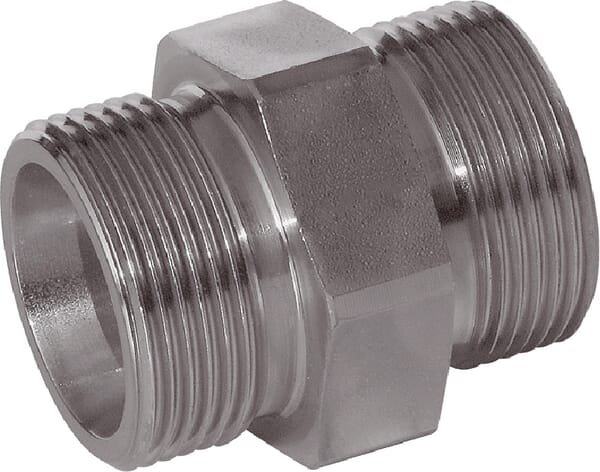

BPA000287186
