Roll over image to zoom in · Click to see full view
£8.72
excl. VAT
£10.46 incl. VAT
£10.46
incl. VAT
£8.72 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details

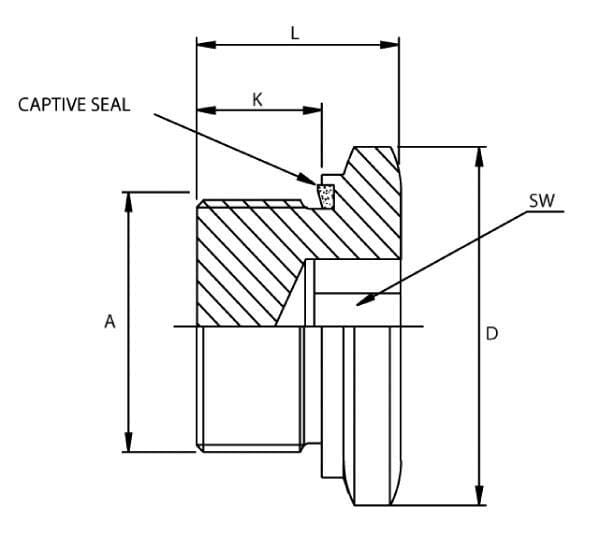

| AThread diameter | 24 mm |
|---|---|
| Connection 1, type | Thread |
| DIN standard | 225 |
| KThread length | 14 mm |
| LLength | 19.3 mm |
| Material | Steel |
| Max working pressure | 400 BAR |
| Mounting diameter | 29.9 mm |
| Product details | Viton seal available on request |
| Sealing material | Nitrile rubber [NBR] |
| Series | N |
| Surface treatment | Nickel, Zinc |
| SWWrench/Spanner size | 12 mm |
| Thread pitch | 1.50 mm |
| Thread type | Metric |
| Type | Swivel plug |
| Unit | Each |
| Weight per 100 pcs | 5.8 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 56 g |
| Dimensions | 30 × 30 × 21 mm |
| Dangerous goods | No |
You might also like
BPA000374694
Voss T piece 30S TV30S
£59.83 excl.
£71.80 incl.
In stock
Expected to ship on Friday 2 October
BPA000393102

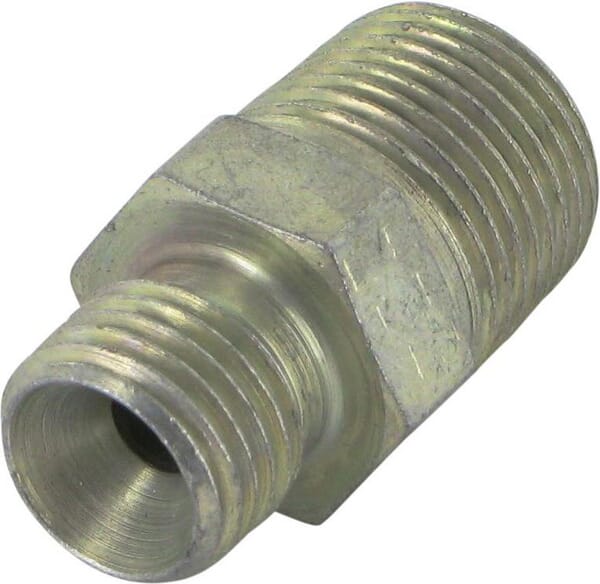

Voss Nipple 1 BSP x 1-1/4 BSPT VNBBT1620
£21.45 excl.
£25.74 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000268310

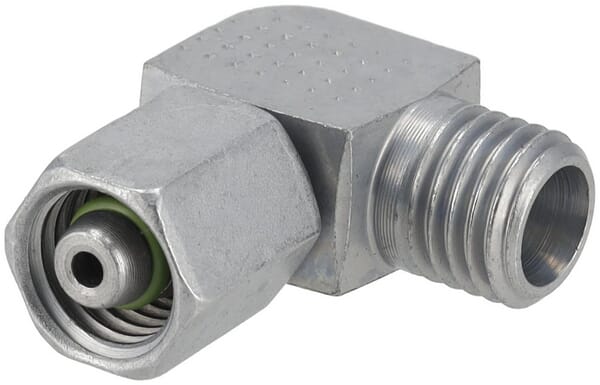

Voss Swivel elbow 90° M20x1.5 12S EWSD12S
