£171.43
excl. VAT
£205.72 incl. VAT
£205.72
incl. VAT
£171.43 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 24 September
Product details
| Body height | 58.5 mm |
|---|---|
| Connection 1, thread diameter | M24 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M22 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, type | Thread |
| Connection 2, wrench/spanner size | 30.0 mm |
| Connection no 1 diameter | 16 mm |
| DIN standard | 2401, 259, 2353, 228, 3852 |
| KConnection no 1 thread length | 14 mm |

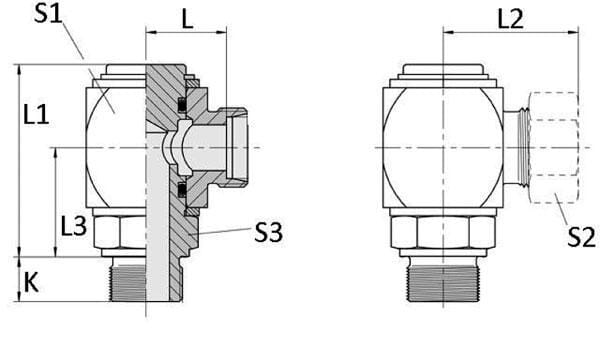

| L2Connection no 1 center to end distance | 42.5 mm |
| L3Connection centre to insert distance | 33.5 mm |
| LConnections distance | 24.5 mm |
| Max working pressure | 400 BAR |
| Product details | 2S cutting ring- Optimum cutting ring connection and functionality, Multiple corrosion resistance, Can rotate while pressurised- Hydraulic hose, Hydraulic pipes, For slow rotation or swivelling only |
| Pros | 2S cutting ring |
| S3Connection no 1 wrench size | 27.0 mm |
| Series connection 1 | 16S |
| Shape | Elbow 90° |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 514 g |
| Dimensions | 77 × 66 × 36 mm |
| Dangerous goods | No |
You might also like
BPA000287332
Voss Cutting ring coupling bulkhead 22L GSS22L
£16.76 excl.
£20.11 incl.
In stock
Expected to ship on Wednesday 23 September

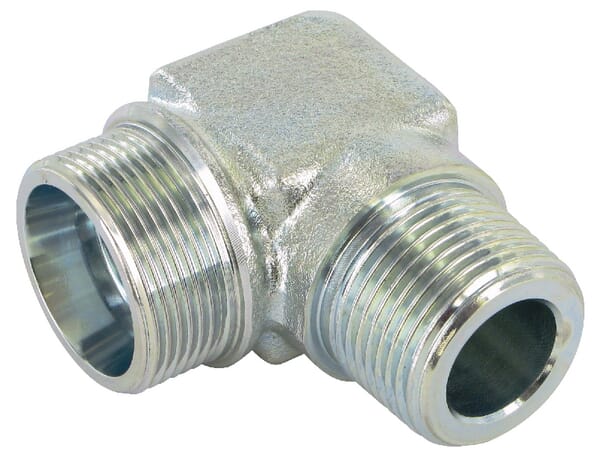

BPA000245397
Voss Elbow coupling CMCAG21x20.27NU CMCAG212027NU
£14.26 excl.
£17.11 incl.
Backorder available
Usually ships within 3–8 weeks

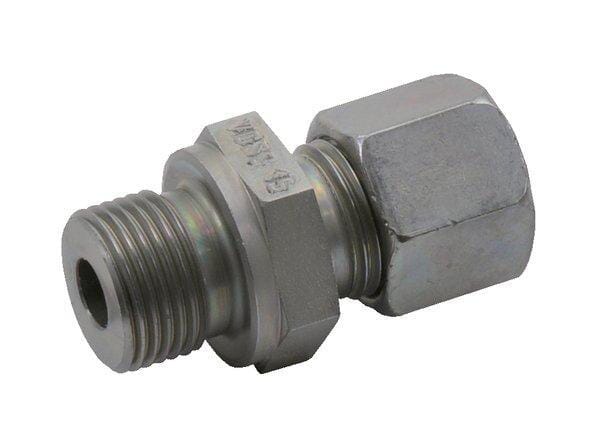

BPA000288642
Voss Coupling 8S R1/4 GEV8SR14
£3.19 excl.
£3.83 incl.
In stock
Expected to ship on Thursday 24 September

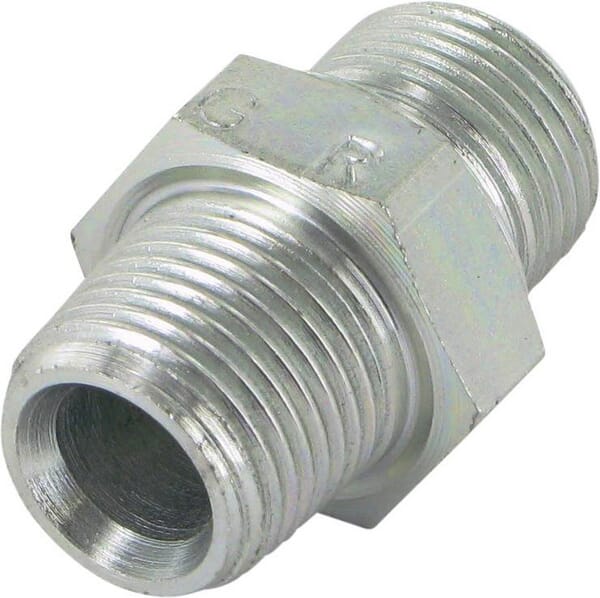

BPA000253439
Voss Double nipple 3/8 BSPx3/8 BSPT DNBBT06
£2.15 excl.
£2.58 incl.
In stock
Expected to ship on Wednesday 23 September

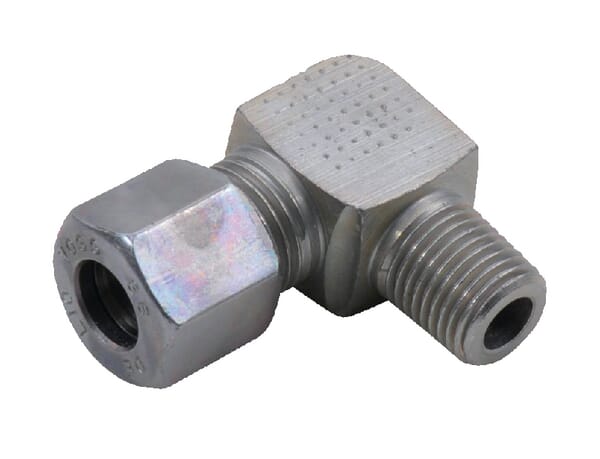

BPA000402450
