£143.78
excl. VAT
£172.54 incl. VAT
£172.54
incl. VAT
£143.78 excl. VAT
Free shipping
In stock
Expected to ship on Monday 28 September
Product details
| Connection 1, thread diameter | M52 |
|---|---|
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | BSP |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1-1/2 Inch |
| Connection 2, threads per inch | 11 |
| Connection 2, thread type | BSP |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection no 1 center to end distance | 63 mm |
| Connection no 1 diameter | 42 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| ISO standard | 228 |
| KConnection no 1 thread length | 22 mm |
| Max working pressure | 250 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance, Adjustable direction, The adjusted direction is fixed by lock nut |
| S3Connection no 1 wrench size | 60.0 mm |
| Seal material | Metal |
| Series connection 1 | 42L |
| Shape | Elbow 90° |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2184 g |
| Dimensions | 120 × 102 × 64 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000306998
Voss Equal cross 28L KV28L
£105.26 excl.
£126.31 incl.
In stock
Expected to ship on Friday 25 September
Free shipping

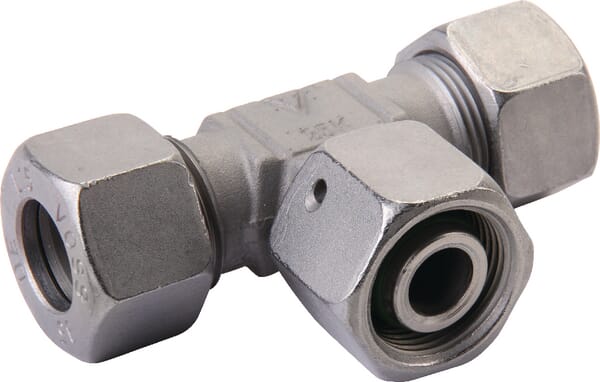

BPA000268197
Voss Adjustable male stud 42L ETVD42L
£136.46 excl.
£163.75 incl.
In stock
Expected to ship on Friday 25 September
BPA000315174
Voss Gauge Coupl F 12 LR 1/4 BSP MAV12LR14
£4.87 excl.
£5.84 incl.
In stock
Expected to ship on Friday 25 September

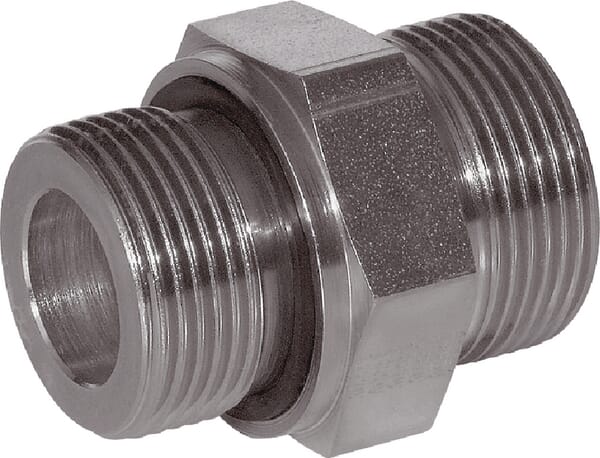

BPA000287788
Voss Coupling 10L M22 GES10LM22WD
£5.78 excl.
£6.94 incl.
In stock
Expected to ship on Friday 25 September

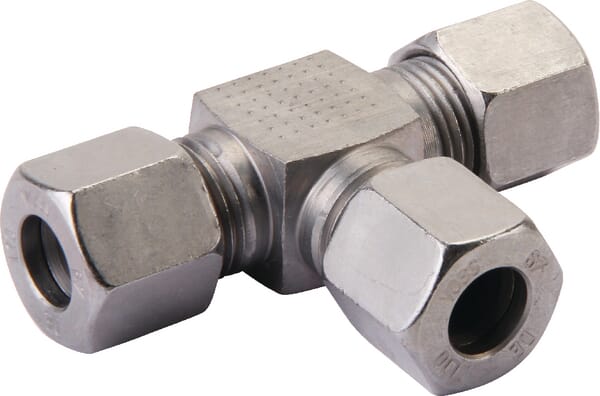

BPA000374642
