£79.58
excl. VAT
£95.50 incl. VAT
£95.50
incl. VAT
£79.58 excl. VAT
In stock
Expected to ship on Monday 21 September

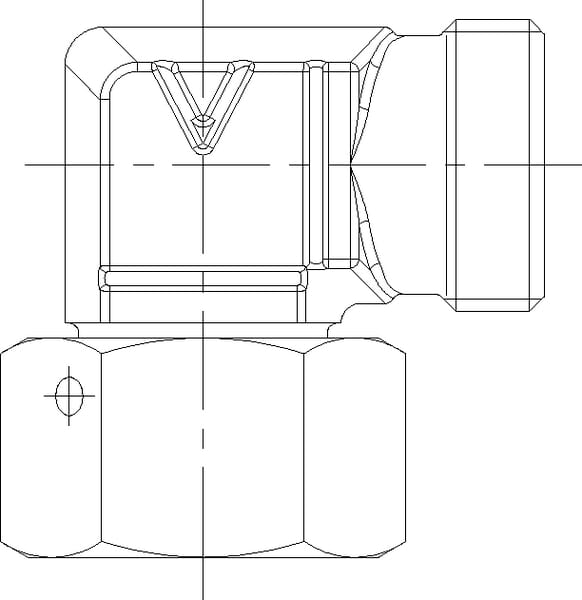

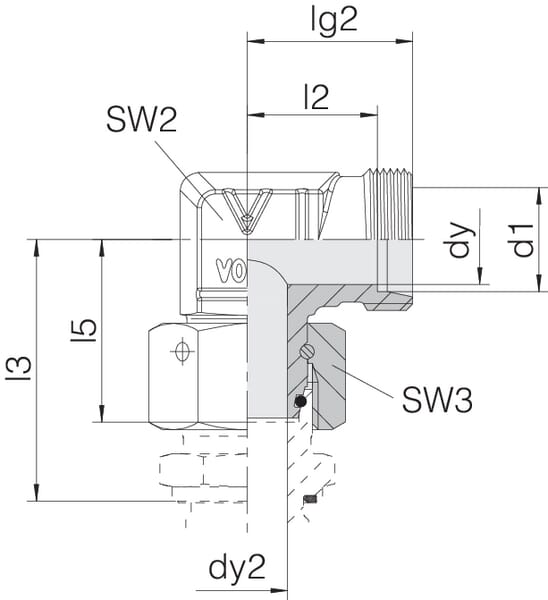

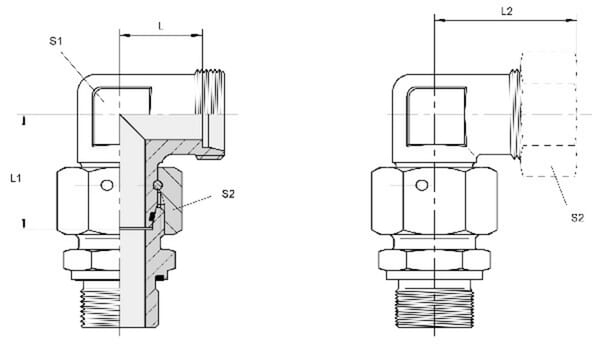

Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M52 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 38 mm |
| Connection 2, thread diameter | M52 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 50.0 mm |
| Connection no 1 center to end distance | 72 mm |
| Connection no 1 diameter | 38 mm |
| Connection no 1 length | 41 mm |
| DIN standard | 2401 |
| Inside diameter side 1 | 32 mm |
| Inside diameter side 2 | 30 mm |
| L1Connection 2, centre to end distance | 57 mm |
| LConnection centre to insert distance | 41 mm |
| Length | 41 mm |
| Max working pressure | 420 BAR |
| Product details | Pre-assembled with O-ring, O-ring material : FKM / Viton, Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance |
| Pros | Reduced risk of leakage |
| S2Connection no 1 wrench size | 60.0 mm |
| Seal material | FKM |
| Series connection 1 | 38S |
| Shape | Elbow 90° |
| Total length | 41 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1271 g |
| Dimensions | 87 × 98 × 61 mm |
| Dangerous goods | No |
You might also like
BPA000316639

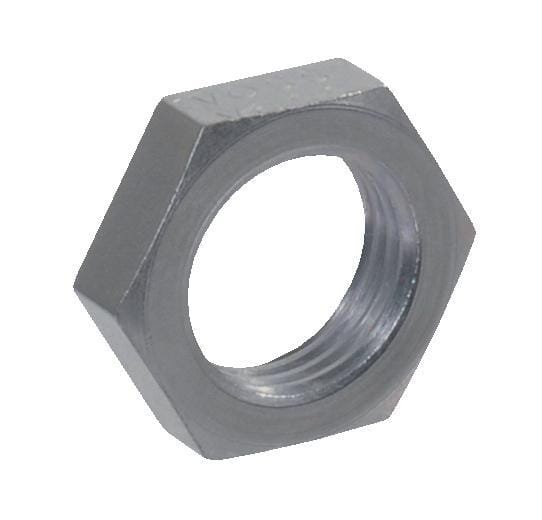

Voss Locknut M20x1.50 steel MSV2015
£1.21 excl.
£1.45 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000268250

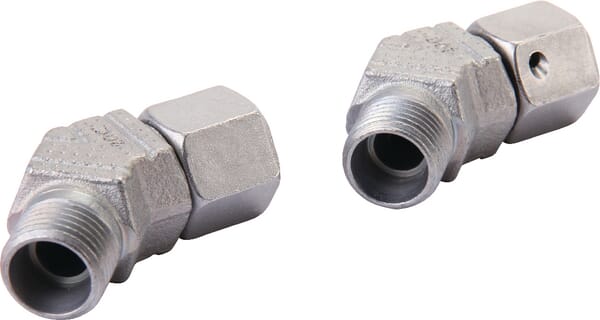

Voss Cutting ring connector 35L , 45° EVSD35L
£108.44 excl.
£130.13 incl.
In stock
Expected to ship on Monday 21 September
BPA000348327

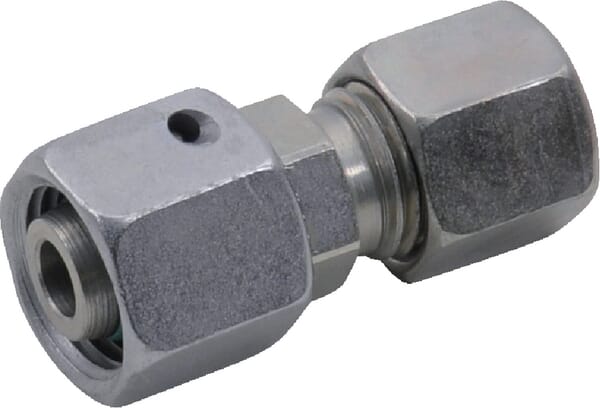

Voss Coupling 18L 10L REDVD1810L
£9.91 excl.
£11.89 incl.
In stock
Expected to ship on Monday 21 September
BPA000402422

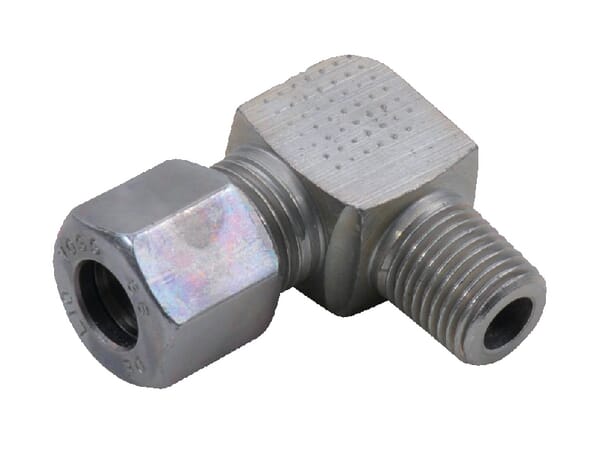

Voss Elbow Coupling 12S R1/2 WEV12SRK12
£25.98 excl.
£31.18 incl.
In stock
Expected to ship on Monday 21 September
BPA000287366

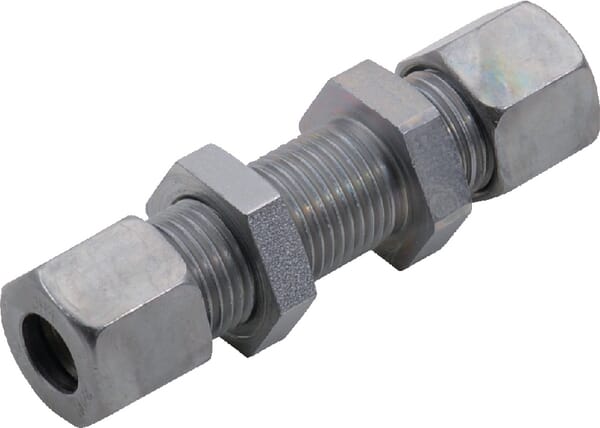

Voss BulkHead Coupling 30S GSV30S
£67.45 excl.
£80.94 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000258196

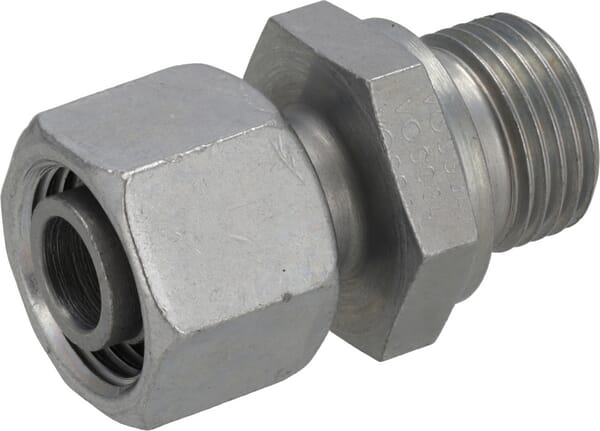

Voss Coupling 12L M18 EGESD12LM18
