£10.90
excl. VAT
£13.08 incl. VAT
£13.08
incl. VAT
£10.90 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Connection 1, thread diameter | M18 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M18 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 22.0 mm |
| Connection 3, length | 42 |
| Connection 3, thread diameter | M18 |
| Connection 3, thread pitch | 1.50 mm |
| Connection 3, thread type | Metric |
| Connection 3, type | Swivel nut |
| Connection 3, type - male/female | Female |
| DIN standard | 2401, 2353, 3865 |
| Includes | pre-assembled gland |
| Inside diameter | 10.44 mm, 8 mm |

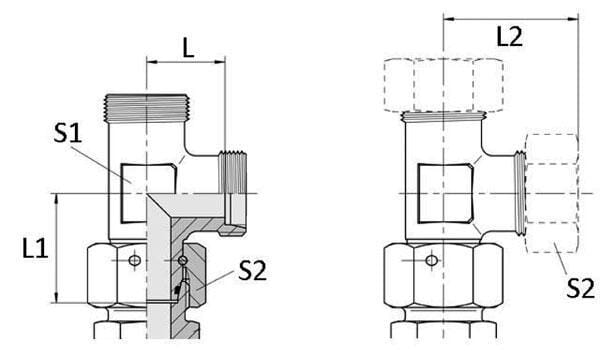

| L1Connection 2, centre to end distance | 29.5 mm |
| L2Connection no 1 center to end distance | 32 mm |
| LConnection 3 centre to end distance | 17 mm |
| Max working pressure | 400 BAR |
| Pipe diameter | 12 mm |
| Product details | Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| Pros | 2S cutting ring |
| S1Body height | 19 mm |
| S2Connection no 1 wrench size | 22.0 mm |
| Sealing ring inside diameter | 10 mm |
| Sealing ring thickness | 1.5 mm |
| Seal material | Nitrile rubber [NBR] |
| Series | L |
| Shape | Tee (T) |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | 8716106786497 |
|---|---|
| Unit of measure | EA |
| Weight | 117 g |
| Dimensions | 54 × 36 × 22 mm |
| Dangerous goods | No |
You might also like
BPA000288329

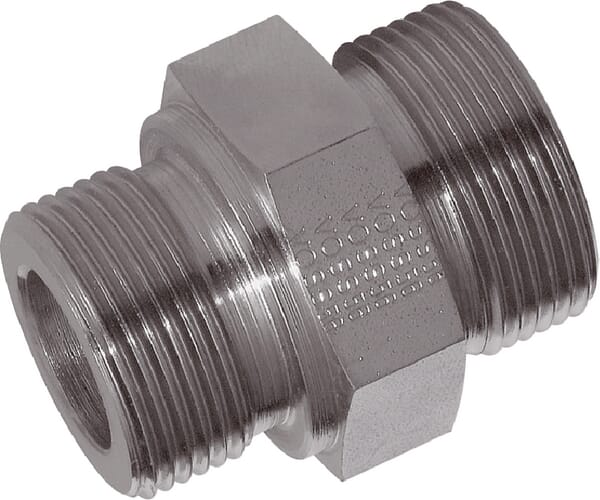

Voss Coupling 8L M12 GES8LM12
£1.31 excl.
£1.57 incl.
In stock
Expected to ship on Monday 21 September
BPA000230693

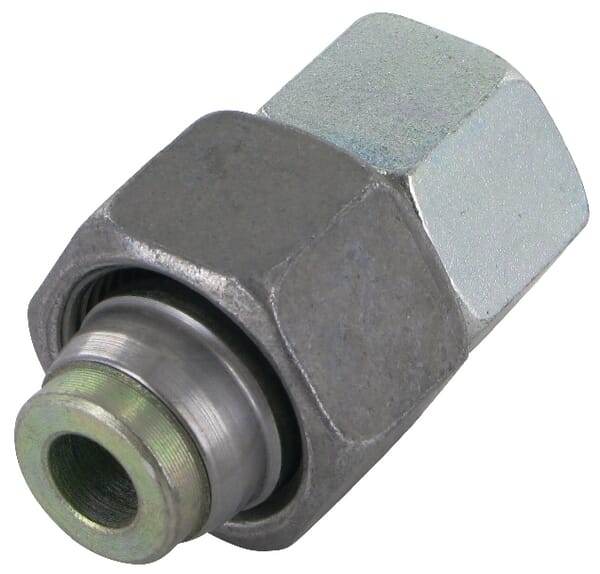

Voss ALEG13ALEN15 coupling ALEG13ALEN15
£7.13 excl.
£8.56 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000348266

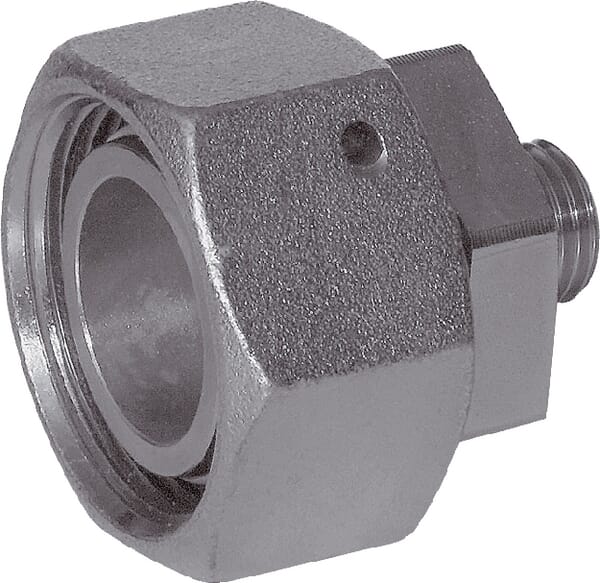

Voss Coupling 35L 22L REDSD3522L
£28.02 excl.
£33.62 incl.
In stock
Expected to ship on Friday 18 September
BPA000348201
Voss Coupling 16S 14S REDSD1614S
£20.01 excl.
£24.01 incl.
In stock
Expected to ship on Friday 18 September
BPA000348280
Voss 42L 15L coupling REDSD4215L
£53.71 excl.
£64.45 incl.
In stock
Expected to ship on Friday 18 September
BPA000288429

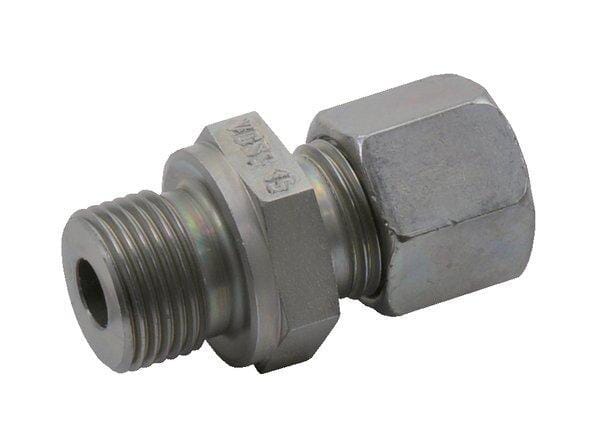

Voss Coupling 10L R1/2 GEV10LR12
