£22.52
excl. VAT
£27.02 incl. VAT
£27.02
incl. VAT
£22.52 excl. VAT
In stock
Expected to ship on Tuesday 22 September

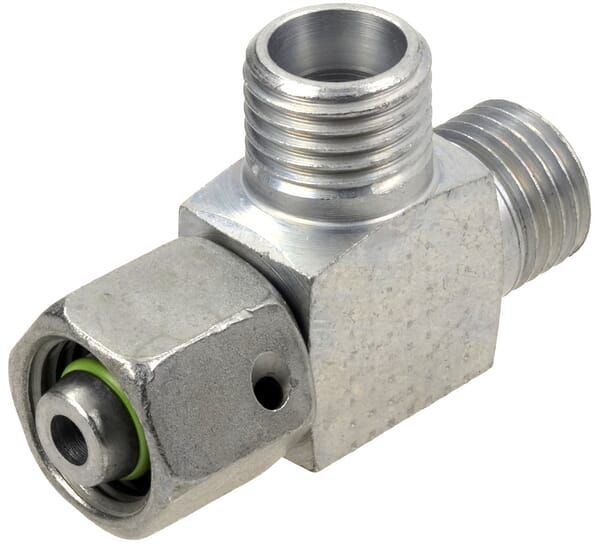

Product details
| Connection 1, thread diameter | M22 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M22 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 19.0 mm |
| Connection 3, length | 54 |
| Connection 3, thread diameter | M22 |
| Connection 3, thread pitch | 1.50 mm |
| Connection 3, thread type | Metric |
| Connection 3, type | Swivel nut |
| Connection 3, type - male/female | Female |
| DIN standard | 2401, 2353, 3865 |
| Includes | pre-assembled gland |
| Inside diameter | 10.99 mm, 9 mm |

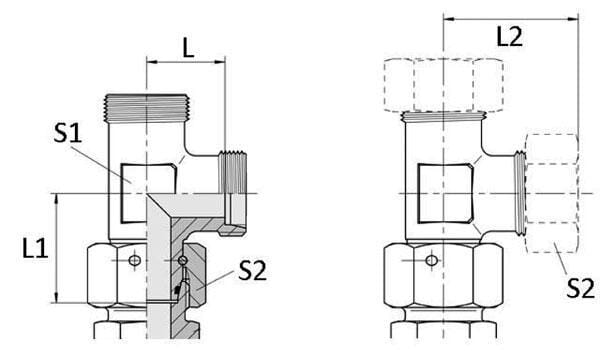

| L1Connection 2, centre to end distance | 35 mm |
| L2Connection no 1 center to end distance | 40 mm |
| LConnection 3 centre to end distance | 22 mm |
| Max working pressure | 630 BAR |
| Pipe diameter | 14 mm |
| Product details | Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| Pros | 2S cutting ring |
| S1Body height | 19 mm |
| S2Connection no 1 wrench size | 27.0 mm |
| Sealing ring inside diameter | 12 mm |
| Sealing ring thickness | 2 mm |
| Seal material | Nitrile rubber [NBR] |
| Series | S |
| Shape | Tee (T) |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 181 g |
| Dimensions | 66 × 43 × 27 mm |
| Dangerous goods | No |
You might also like
BPA000288477

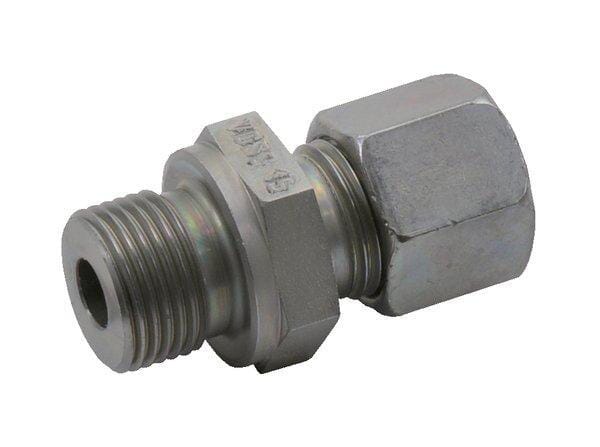

Voss Coupling 12S R1/4 GEV12SR14
£6.99 excl.
£8.39 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000243533

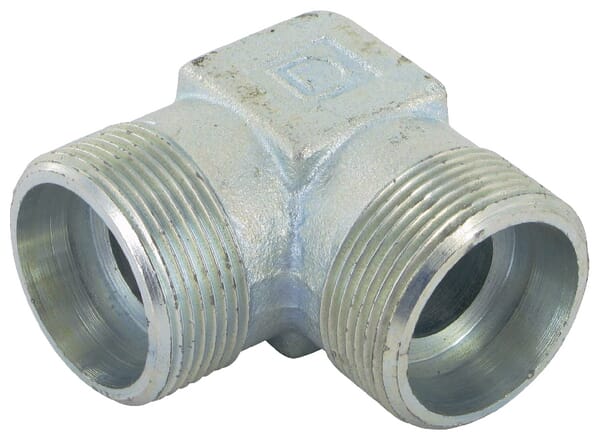

Voss Elbow coupling CAG21NU CAG21NU
£11.98 excl.
£14.38 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000355220

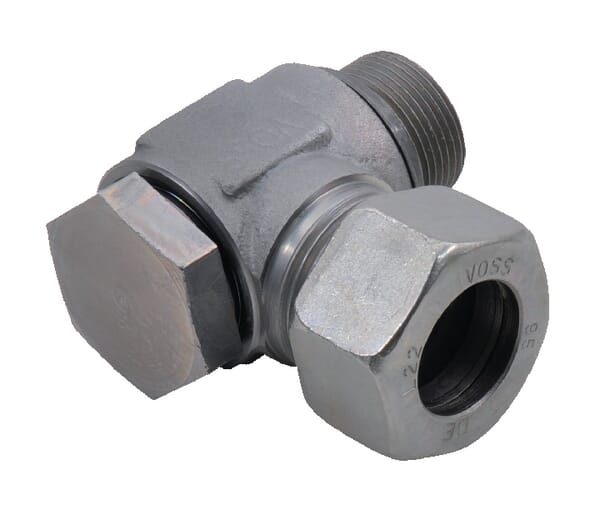

Voss Banjo coupling 20S M27 RSWV20SM27WD
£49.71 excl.
£59.65 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000382322

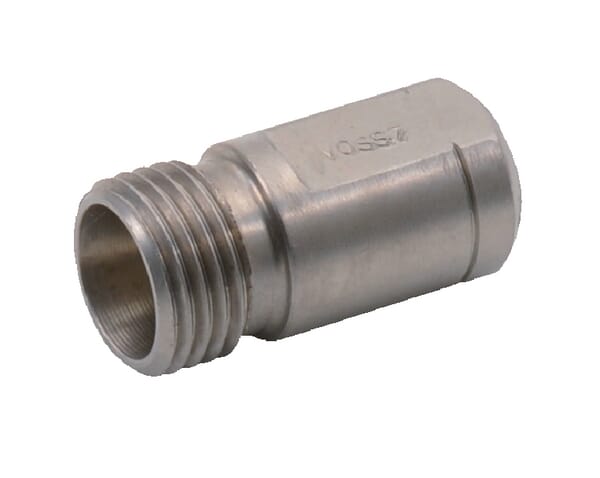

Voss Assembly piece 12L VKV12L
£125.60 excl.
£150.72 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000348133

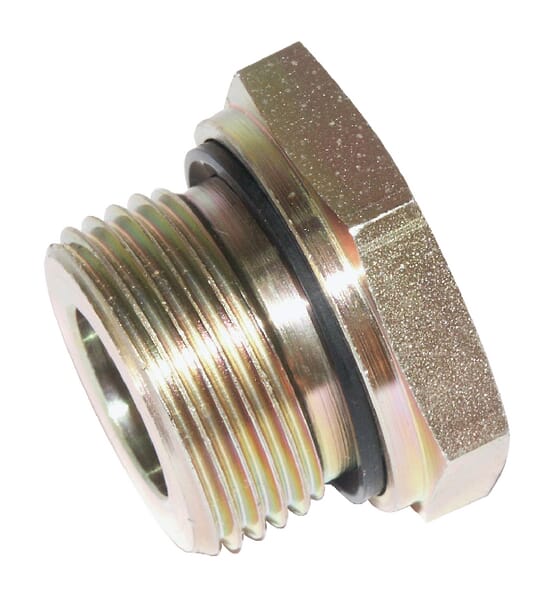

Voss Reducing Adaptor M/F R1 R3/8 REDR138WD
