£68.68
excl. VAT
£82.42 incl. VAT
£82.42
incl. VAT
£68.68 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.

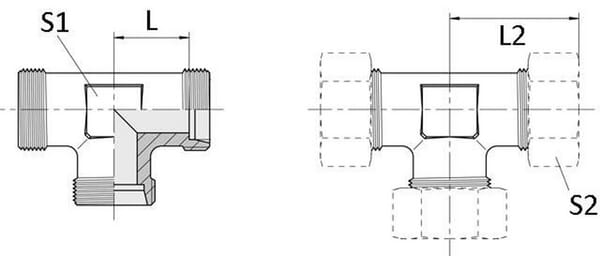

Product details
| Body height | 50 mm |
|---|---|
| Connection 1, thread diameter | M52 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 38 mm |
| Connection 2, length | 41 mm |
| Connection 2, thread diameter | M52 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 60.0 mm |
| Connection 3, diameter | 38 mm |
| Connection 3, thread diameter | M52 |
| Connection 3, thread pitch | 2.00 mm |
| Connection 3, thread type | Metric |
| Connection 3, type | Thread |
| Connection 3, type - male/female | Male |
| Connection no 1 center to end distance | 41 mm, 57 mm |
| Connection no 1 diameter | 38 mm |
| DIN standard | 2401, 2353 |
| Inside diameter | 32 mm |
| Max working pressure | 420 BAR |
| Pipe diameter | 38 mm |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Hydraulic hose, Hydraulic pipes |
| Pros | Reduced risk of leakage |
| S1Connection no 1 wrench size | 60.0 mm |
| Series | S |
| Shape | Tee (T) |
| Surface treatment | Nickel-plated, Zinc |
| Total length | 114 mm |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1272 g |
| Dimensions | 115 × 85 × 54 mm |
| Dangerous goods | No |
You might also like
BPA000287983
Voss Coupling 15L M18 GES15LM18
£2.61 excl.
£3.13 incl.
In stock
Expected to ship on Friday 2 October
BPA000288603
Voss Coupling 6L M10 GEV6LM10WD
£2.68 excl.
£3.22 incl.
In stock
Expected to ship on Friday 2 October

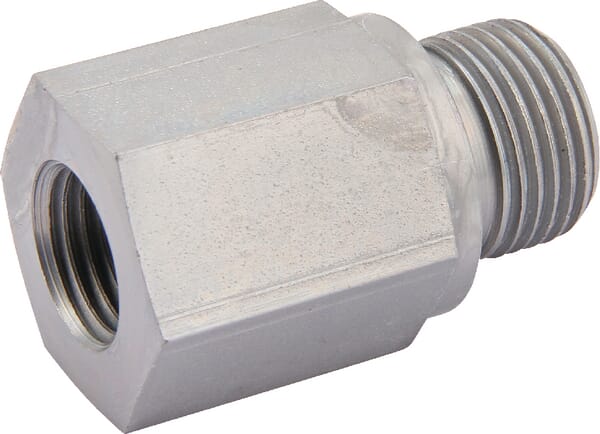

BPA000348158
Voss Reducing Adaptor M/F (CS) R3/8 R1/4 REDR3814WD
£4.25 excl.
£5.10 incl.
In stock
Expected to ship on Friday 2 October
BPA000396282
Voss End Plug (Cutting Ring) 15L M22x1.5 VSK15L
£6.12 excl.
£7.34 incl.
In stock
Expected to ship on Friday 2 October

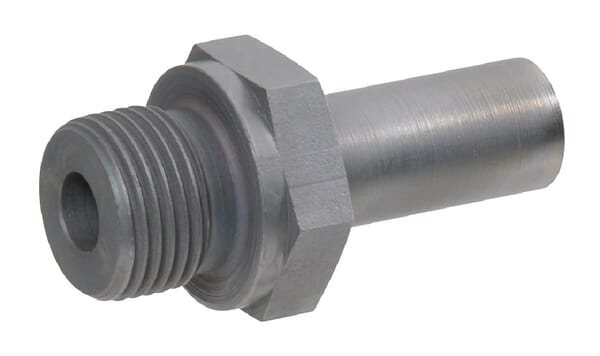

BPA000258174
