Product details

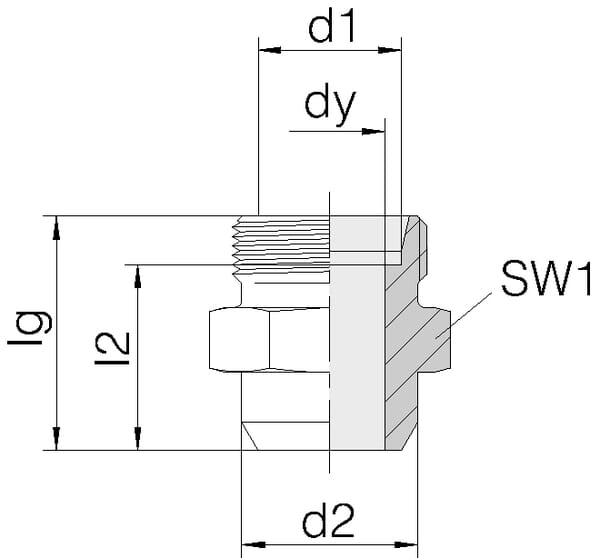

| Connection 1, thread diameter | M24 |
|---|---|
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 21 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 30.0 mm |
| Connection no 1 diameter | 16 mm |
| DIN standard | 2401 |
| dyInside diameter | 12.99 mm |
| Includes | Coupling, Excluding cutting ring, Excluding gland nut |
| Material | Steel |
| Max working pressure | 400 BAR |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance, Weld-on coupling, Available in stainless steel on request |
| Pros | Reduced risk of leakage |
| Series connection 1 | 16S |
| Shape | Straight |
| Surface treatment | Zinc, Nickel-plated |
| SW1Connection no 1 wrench size | 27.0 mm |
| Total length | 35 mm |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 83 g |
| Dimensions | 35 × 30 × 26 mm |
| Dangerous goods | No |
You might also like
BPA000288438
Voss Coupling 10S M16 GEV10SM16
£4.19 excl.
£5.03 incl.
In stock
Expected to ship on Friday 2 October
BPA000400093

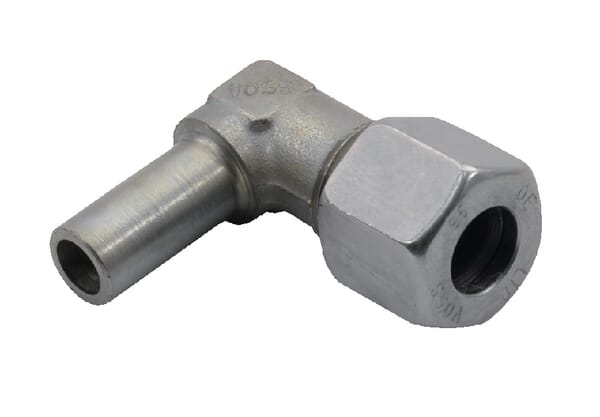

Voss Elbow Coupling 8LL WV8LL
