Roll over image to zoom in · Click to see full view
£21.12
excl. VAT
£25.34 incl. VAT
£25.34
incl. VAT
£21.12 excl. VAT
In stock
Expected to ship on Friday 2 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details
| Connection 1, thread diameter | M45 |
|---|---|
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 40 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 50.0 mm |
| DConnection no 1 diameter | 35 mm |
| DIN standard | 2401 |
| Includes | Coupling, Cutting ring, Gland nuts |

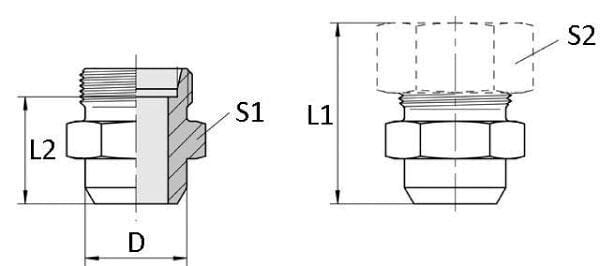

| Inside diameter | 18 mm |
| L1Total length | 32.5 mm |
| L2Connection centre to insert distance | 54 mm |
| Material | Steel |
| Max working pressure | 160 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| S1Connection no 1 wrench size | 46.0 mm |
| Series connection 1 | 35L |
| Shape | Straight |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 392 g |
| Dimensions | 57 × 57 × 48 mm |
| Dangerous goods | No |
You might also like
BPA000288154
Voss Coupling 25S M33 GES25SM33WD
£10.16 excl.
£12.19 incl.
In stock
Expected to ship on Friday 2 October
BPA000287815
Voss Coupling 10L R1/2 GES10LRK12
£9.65 excl.
£11.58 incl.
In stock
Expected to ship on Friday 2 October
Free shipping
BPA000306999
Voss Equal cross 35L KV35L
£144.92 excl.
£173.90 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000287826
Voss Adaptor 10S M14 GES10SM14
£12.81 excl.
£15.37 incl.
In stock
Expected to ship on Friday 2 October
BPA000348136

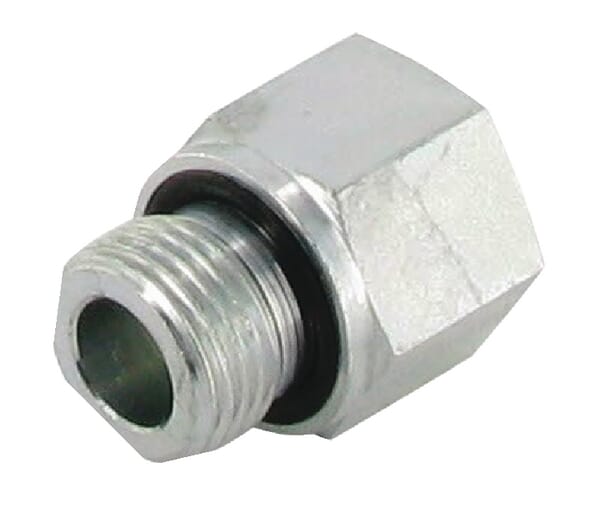

Voss Reducing Adaptor M/F (CS) R1/4 R1/8 REDR1418WD
