Product details

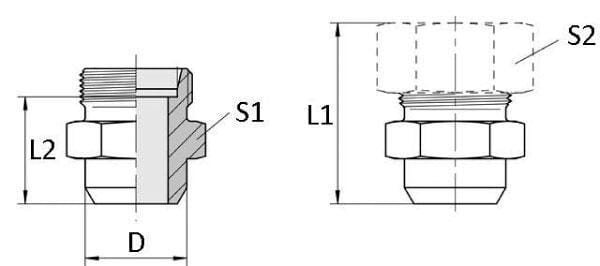

| Connection 1, thread diameter | M52 |
|---|---|
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 44 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 60.0 mm |
| DConnection no 1 diameter | 38 mm |
| DIN standard | 2401 |
| Includes | Coupling, Cutting ring, Gland nuts |
| L1Total length | 38 mm |
| L2Connection centre to insert distance | 69 mm |
| Material | Steel |
| Max working pressure | 315 BAR |
| Product details | 2S cutting ring, Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| S1Connection no 1 wrench size | 55.0 mm |
| Series connection 1 | 38S |
| Shape | Straight |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 790 g |
| Dimensions | 72 × 70 × 70 mm |
| Dangerous goods | No |
