£1,536.45
excl. VAT
£1,843.74 incl. VAT
£1,843.74
incl. VAT
£1,536.45 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Round baler, Silage wagon, Rotary harrow, Shredder adapter |
|---|---|
| Benefits | Drive protection, No time is lost by restoring torque |
| Clutch type code | K64/22R |
| Connection locking type | Clamp cone |
| Cross cap diameter | 42 mm |
| Cross length | 120 mm |
| Details | Drive is interrupted when overloaded, Switches on automatically at low speed |
| Inside connection diamter inch and splines | 1.3/4-20 |
| Long description | Cam clutches K64 Series, Series includes K64/12, K64/22, K64/24 |
| Max. rotation speed | 1000 r/min |
| Max static torque | 2500 N·m |
| Original number equivalent | 1135451 |
| Outside diameter | 168 mm |
| Product details | Dropping the rpm allows the torque to build up in a pulsating way, Drive stops when overloaded, Automatically switches on with low rpm |
| Properties | 1 direction of rotation |
| Pros | 1 direction of rotation, Protection of the drive train, No time loss due to coupling repair |
| Shaft size code | W2600, P600 |
| Suitable for machine/vehicle brand | n/a |
| Technical info | Torque can be set to pulsing by reducing the speed |
| Unit | Each |
Logistics
| EAN | 8432970151802 |
|---|---|
| Unit of measure | EA |
| Weight | 14480 g |
| Dimensions | 225 × 175 × 225 mm |
| Dangerous goods | No |
You might also like
BPA000363722
Walterscheid Guard half inner ST15 D158 ST151000I
£85.96 excl.
£103.15 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000140514
Walterscheid Radial pin clutch K32B withA 556730360
£443.02 excl.
£531.62 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000096152
Walterscheid Yoke, Flange, W2500/P500 362700
£318.35 excl.
£382.02 incl.
In stock
Expected to ship on Friday 18 September
BPA000084227
Walterscheid Linch pin category 2 305855
£9.59 excl.
£11.51 incl.
In stock
Expected to ship on Friday 18 September
BPA000033577

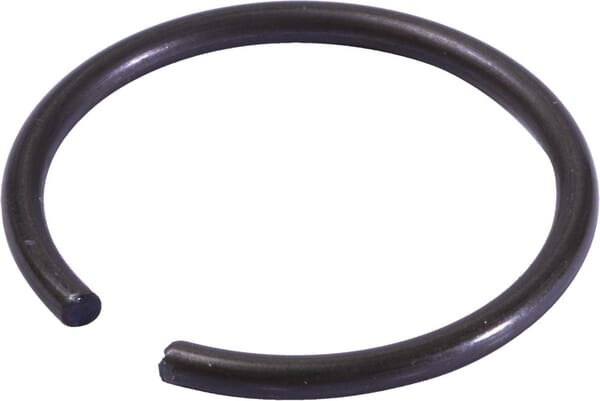

Walterscheid Snap ring 1168637
£2.42 excl.
£2.90 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000356921

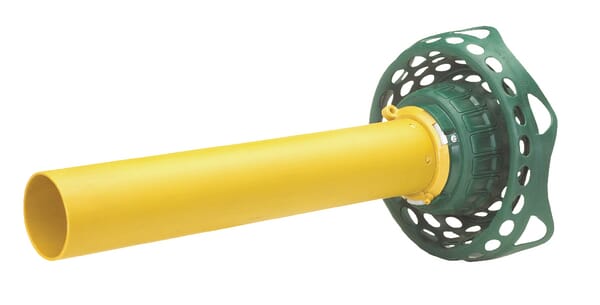

Walterscheid PTO inner half guard SD15, L: 1500mm SD151500IWWZFLEX
