£1,710.83
excl. VAT
£2,053.00 incl. VAT
£2,053.00
incl. VAT
£1,710.83 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Application range | Round baler, Silage wagon, Rotary harrow, Shredder adapter |
|---|---|
| Benefits | Drive protection, No time is lost by restoring torque |
| Clutch type code | K64/24R |
| Connection locking type | Clamp cone |
| Cross cap diameter | 42 mm |
| Cross length | 120 mm |
| Details | Drive is interrupted when overloaded, Switches on automatically at low speed |
| Inside connection diamter inch and splines | 1.3/4-20 |
| Long description | Cam clutches K64 Series, Series includes K64/12, K64/22, K64/24 |
| Max. rotation speed | 1000 r/min |
| Max static torque | 3500 N·m |
| Original number equivalent | 1693397 |
| Outside diameter | 168 mm |
| Product details | Dropping the rpm allows the torque to build up in a pulsating way, Drive stops when overloaded, Automatically switches on with low rpm |
| Properties | 1 direction of rotation |
| Pros | 1 direction of rotation, Protection of the drive train, No time loss due to coupling repair |
| Shaft size code | W2600, P600 |
| Suitable for machine/vehicle brand | n/a |
| Technical info | Torque can be set to pulsing by reducing the speed |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 14580 g |
| Dimensions | 260 × 210 × 210 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000146519

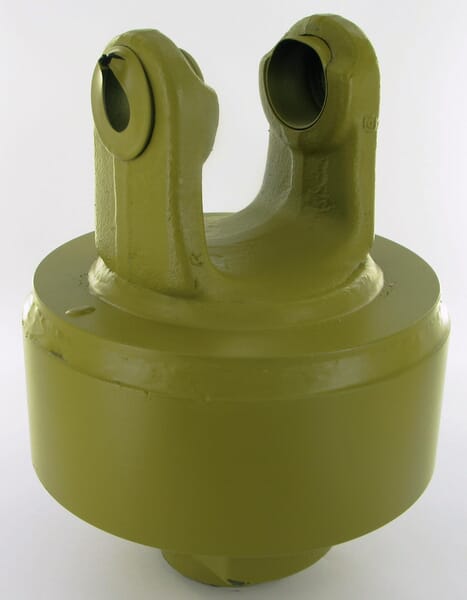

Walterscheid Cam clutch K64/24R 1 3/4-20 5910444350
£1,715.46 excl.
£2,058.55 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000400848

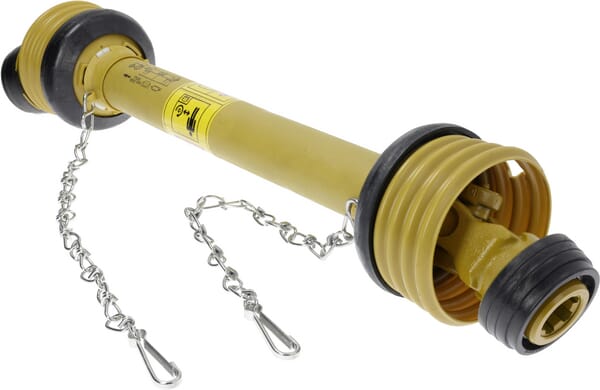

Walterscheid PTO shaft W2500 L: 1210mm, W25001210
£754.06 excl.
£904.87 incl.
In stock
Expected to ship on Monday 21 September
BPA000028030
Walterscheid Cross journal diameter 27x75mm / diameter 24x91mm 2380 1123614
£86.83 excl.
£104.20 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000343894

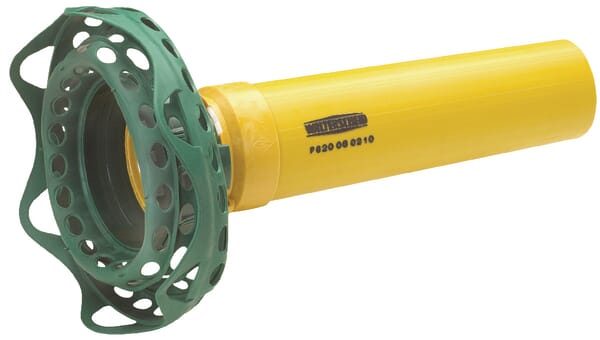

Walterscheid PTO outer half guard, L: 1500mm PG201500AWWZFLEX
