£1,011.10
excl. VAT
£1,213.32 incl. VAT
£1,213.32
incl. VAT
£1,011.10 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

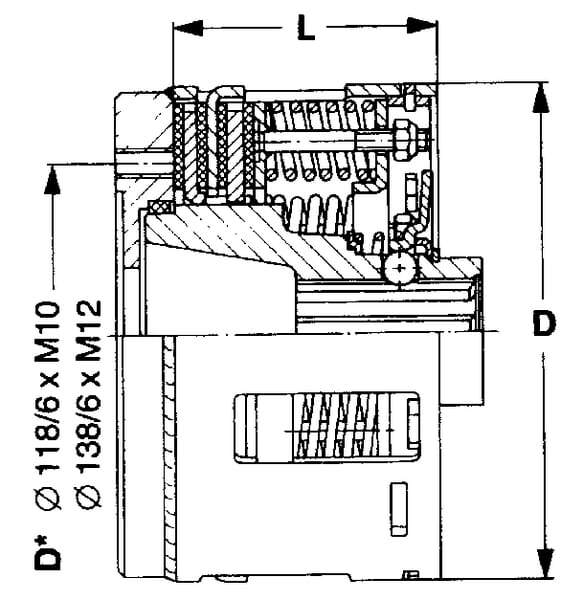

Product details
| Application range | Mowers, Rotary harrows, Pick-up |
|---|---|
| Benefits | Torque retention, Smooth transition, Wide range of applications |
| Clutch type code | EK96/4 |
| Connection locking type | Clamp cone |
| Details | No interruption of power transmission, Absorb peak loads for a short time, Max. torque adjustable via circlip |
| DOutside diameter | 170 mm |
| Inside connection diamter inch and splines | 1.3/8-6 |
| LClutch part length | 90 mm |
| Max. rotation speed | 1000 r/min |
| Max static torque | 1500 N·m |
| Original number equivalent | 1101745 |
| Properties | Independent of direction of rotation, Power transmission via friction discs, Adjustable, Suitable as a starting clutch |
| Shaft size code | W2500, W2600, W2700, W2480, W2580, P480, P580 |
| Suitable for machine/vehicle brand | n/a |
| Technical info | Observe maintenance instructions |
| Unit | Each |
Logistics
| EAN | 8435194014731 |
|---|---|
| Unit of measure | EA |
| Weight | 12105 g |
| Dimensions | 160 × 160 × 120 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000140415

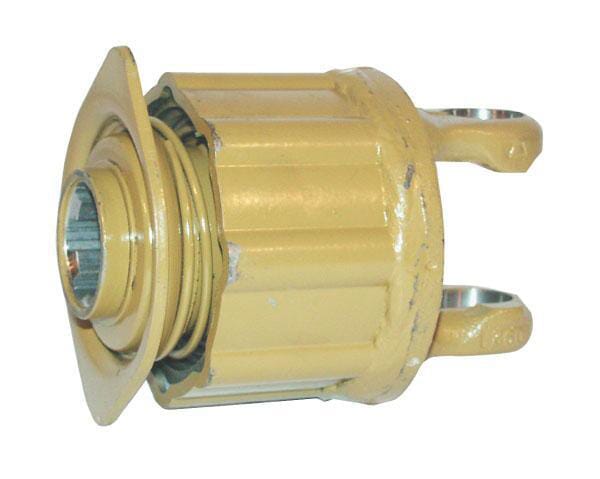

Walterscheid Radial pin clutch K34B 5553503120
£496.42 excl.
£595.70 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000144891
Walterscheid KB61/20 Hub 1.3/8-6 M10 rad.48 572724
£273.41 excl.
£328.09 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000142989
Walterscheid Overrunning clutch W2500 F5/1 5610840
£454.53 excl.
£545.44 incl.
In stock
Expected to ship on Wednesday 23 September
Free shipping
BPA000062552
Walterscheid Hook kit cat. 3L 200051
£914.26 excl.
£1,097.11 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000052718

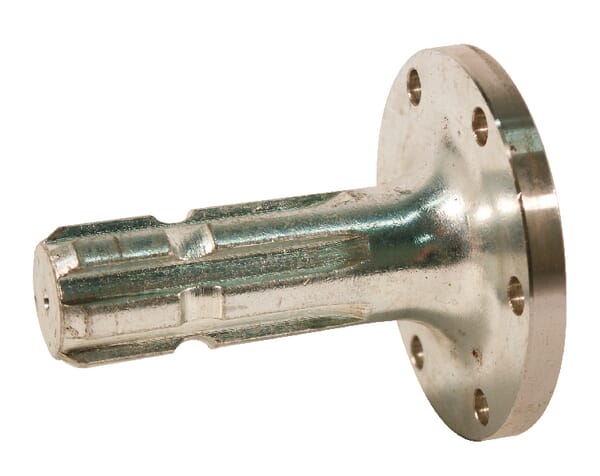

Walterscheid Shaft with flange diameter 120 1.3/8-6 160903
£243.70 excl.
£292.44 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000084655

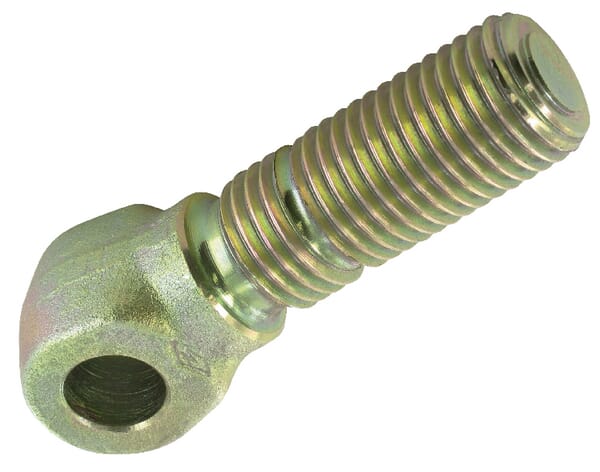

Walterscheid Rod end for ASST-B L=105 309445
