£1,172.48
excl. VAT
£1,406.98 incl. VAT
£1,406.98
incl. VAT
£1,172.48 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Big balers, Round balers, Mowers |
|---|---|
| Benefits | Torque retention, Smooth transition, Easier coupling when PTO shaft is braked, Wide range of applications |
| Clutch type code | FK96/4R |
| Connection locking type | Collar lock |
| Cross cap diameter | 32 mm |
| Cross length | 86 mm |
| Details | Combination of freewheel and friction disc clutch, Absorbs peak loads for short periods, Protection for subsequent mass, Max. torque adjustable via circlip |

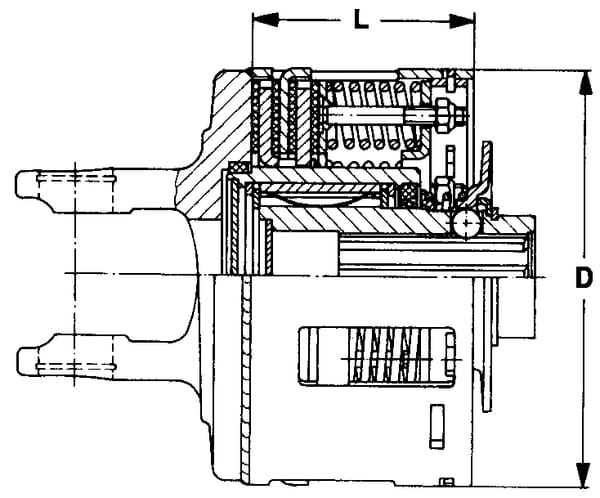

| DOutside diameter | 170 mm |
| Inside connection diamter inch and splines | 1.3/8-6 |
| LClutch part length | 90 mm |

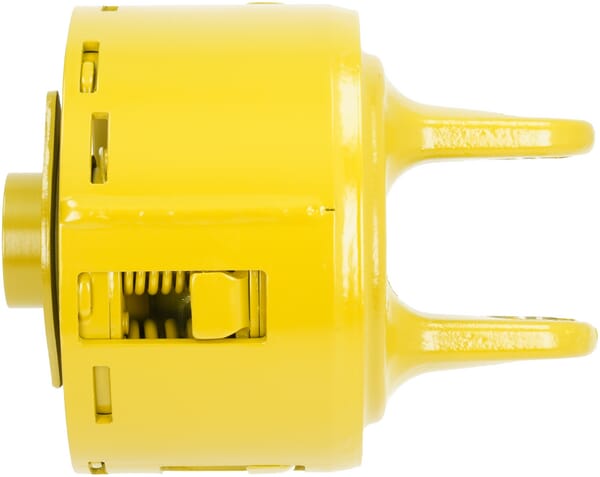

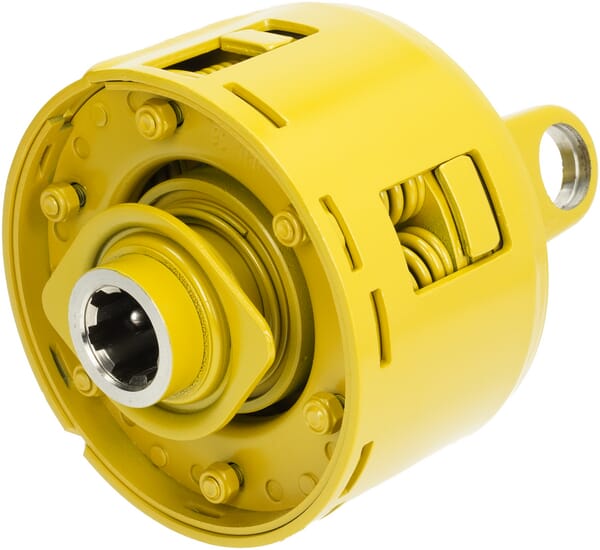

| Long description | Friction and overrunning clutches with spring pack FK96 / 4 cpl. 2400, 2500 |
| Max dynamic torque | 1800 N·m |
| Max. rotation speed | 1000 r/min |
| Max static torque | 1500 N·m |
| Original number equivalent | 1197256 |
| Properties | Depending on the direction of rotation, Power transmission via friction discs, No noise during friction, Noise when freewheeling, Suitable as a starting clutch |
| Shaft size code | W2400, P400 |
| Suitable for machine/vehicle brand | Agco, Fella |
| Technical info | Observe maintenance instructions |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 12282 g |
| Dimensions | 260 × 220 × 215 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000042034

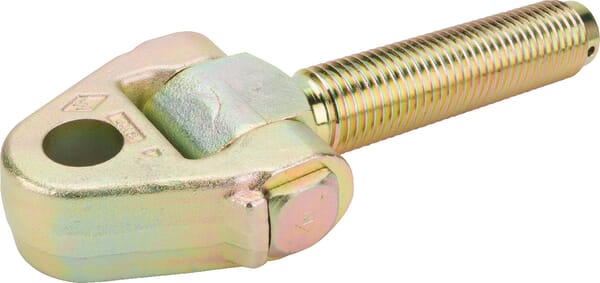

Walterscheid Knuckle spindle 1309870
£521.36 excl.
£625.63 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000098888

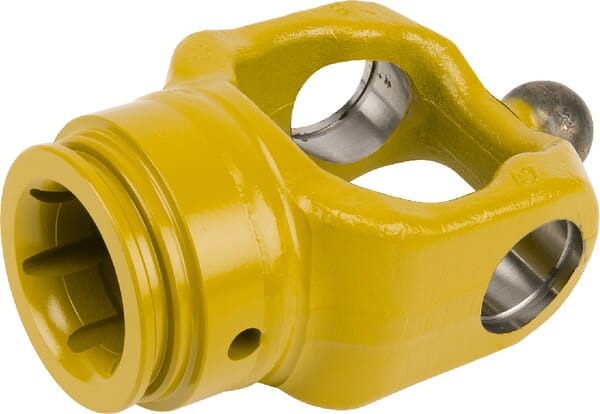

Walterscheid Yoke, Profile tube, 51x37mm, W2580 3613104M
£356.53 excl.
£427.84 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000140516
Walterscheid Clutch K33B 2380 1-3/8 6spl 556740390
£524.54 excl.
£629.45 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000042739

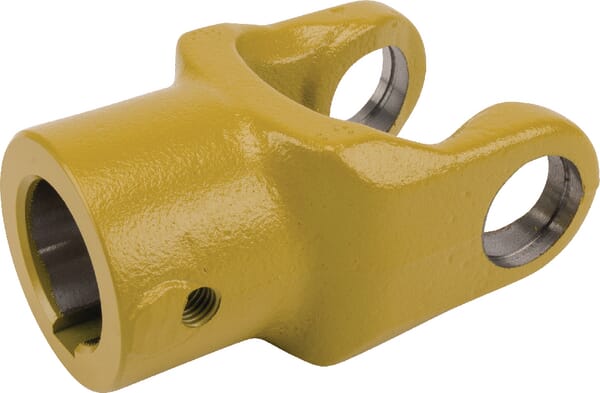

Walterscheid Yoke, hub, 42mm, W2400/P400/W400E 1321911
£179.00 excl.
£214.80 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000188487

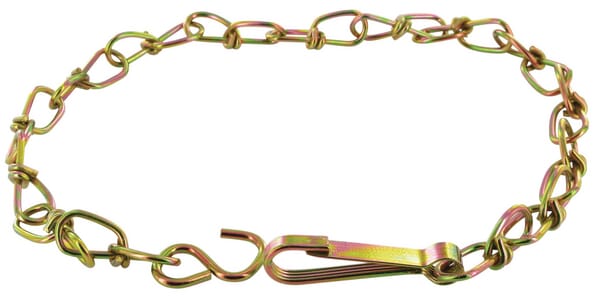

Walterscheid Guard safety chain 600mm 823608
£8.91 excl.
£10.69 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000142980

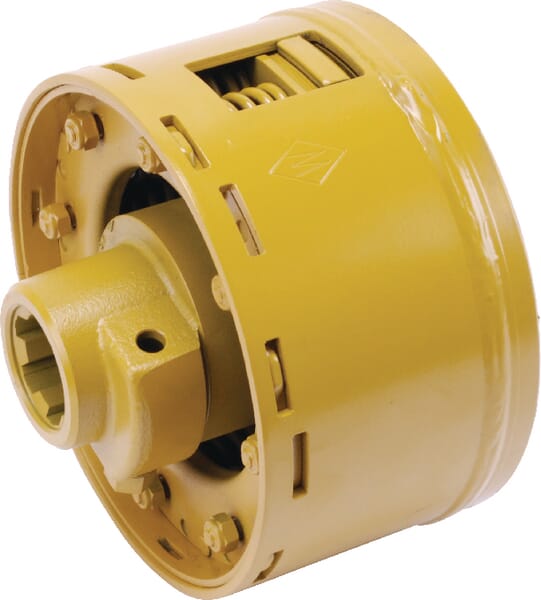

Walterscheid Clutch EK97/4 KNP1 3/4-6 5610456
