£1,247.77
excl. VAT
£1,497.32 incl. VAT
£1,497.32
incl. VAT
£1,247.77 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Big balers, Round balers, Mowers |
|---|---|
| Benefits | Torque retention, Smooth transition, Easier coupling when PTO shaft is braked, Wide range of applications |
| Clutch type code | FK96/4R |
| Connection locking type | Clamp cone |
| Cross cap diameter | 36 mm |
| Cross length | 100 mm |

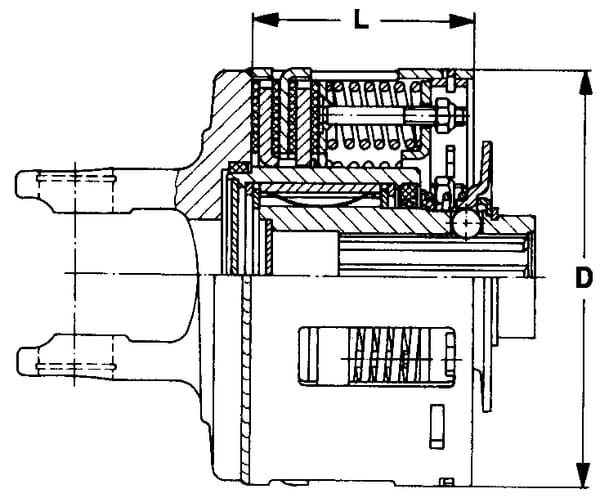

| Details | Combination of freewheel and friction disc clutch, Absorbs peak loads for short periods, Protection for subsequent mass, Max. torque adjustable via circlip |
| DOutside diameter | 170 mm |
| Inside connection diamter inch and splines | 1.3/4-6 |
| LClutch part length | 90 mm |
| Long description | Friction and overrunning clutches with spring pack FK96 / 4 cpl. 2400, 2500 |
| Max. rotation speed | 1000 r/min |
| Max static torque | 2300 N·m |
| Original number equivalent | 1103906 |
| Properties | Depending on the direction of rotation, Power transmission via friction discs, No noise during friction, Noise when freewheeling, Suitable as a starting clutch |
| Shaft size code | W2500, P500 |
| Suitable for machine/vehicle brand | Rau, Wessex |
| Technical info | Observe maintenance instructions |
| Unit | Each |
Logistics
| EAN | 8432970132856 |
|---|---|
| Unit of measure | EA |
| Weight | 12840 g |
| Dimensions | 260 × 240 × 210 mm |
| Dangerous goods | No |
You might also like
BPA000033964
Walterscheid Oil seal 1175048
£22.44 excl.
£26.93 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000030817

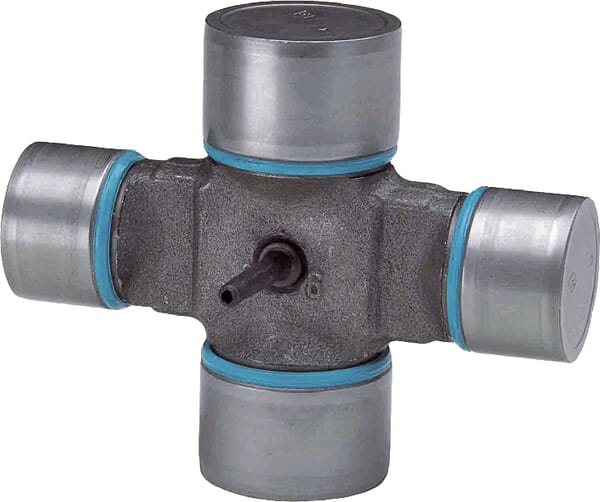

Walterscheid Cross journal diameter 36x89mm / diameter 32x106mm 2580 1122320
£146.07 excl.
£175.28 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000051566

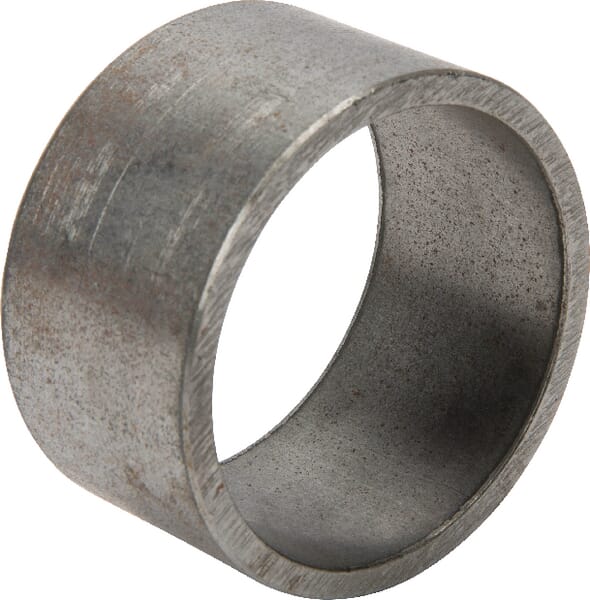

Walterscheid Back-up ring 162038
£44.85 excl.
£53.82 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000084640
Walterscheid Repair kit Agraset 356 309329
£73.83 excl.
£88.60 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000034239
Walterscheid Freewheeling clutch 1178068
£1,221.13 excl.
£1,465.36 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000084701

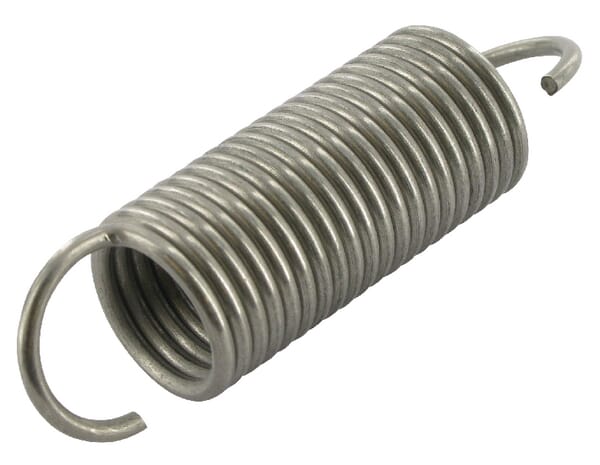

Walterscheid Tension spring 309755
