£1,043.68
excl. VAT
£1,252.42 incl. VAT
£1,252.42
incl. VAT
£1,043.68 excl. VAT
Free shipping
In stock
Expected to ship on Wednesday 23 September
Product details
| Application range | Big balers, Round balers, Mowers |
|---|---|
| Benefits | Torque retention, Smooth transition, Easier coupling when PTO shaft is braked, Wide range of applications |
| Clutch type code | FK96/4R |
| Connection locking type | Collar lock |
| Cross cap diameter | 32 mm |
| Cross length | 86 mm |

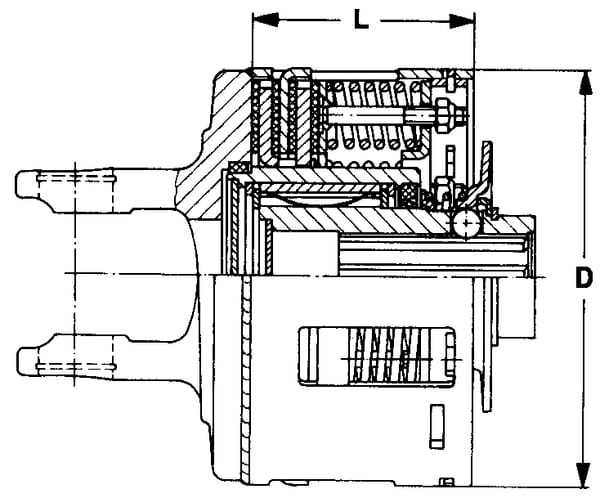

| Details | Combination of freewheel and friction disc clutch, Absorbs peak loads for short periods, Protection for subsequent mass, Max. torque adjustable via circlip |
| DOutside diameter | 170 mm |
| Inside connection diamter inch and splines | 1.3/8-6 |
| LClutch part length | 90 mm |
| Long description | Friction and overrunning clutches with spring pack FK96 / 4 cpl. 2400, 2500 |
| Max. rotation speed | 1000 r/min |
| Max static torque | 1650 N·m |
| Original number equivalent | 1196910 |
| Properties | Depending on the direction of rotation, Power transmission via friction discs, No noise during friction, Noise when freewheeling, Suitable as a starting clutch |
| Shaft size code | W2400 |
| Suitable for machine/vehicle brand | John Deere |
| Technical info | Observe maintenance instructions |
| Unit | Each |
Logistics
| EAN | 8432970165205 |
|---|---|
| Unit of measure | EA |
| Weight | 11560 g |
| Dimensions | 265 × 221 × 214 mm |
| Dangerous goods | No |
You might also like
BPA000196747

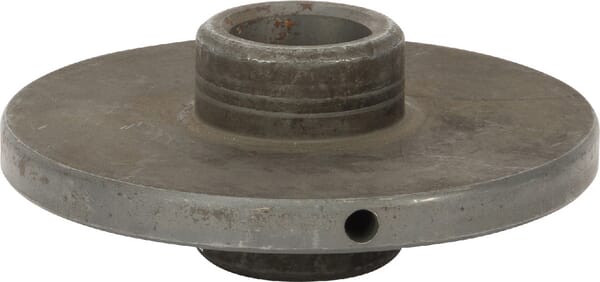

Walterscheid Wide-angle guide hub 900201
£79.95 excl.
£95.94 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000084368
Walterscheid Fork head 28.2x46.5mm 306405
£133.47 excl.
£160.16 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000084367
Walterscheid Fork head 25.7x46.5mm 306404
£133.78 excl.
£160.54 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000084662

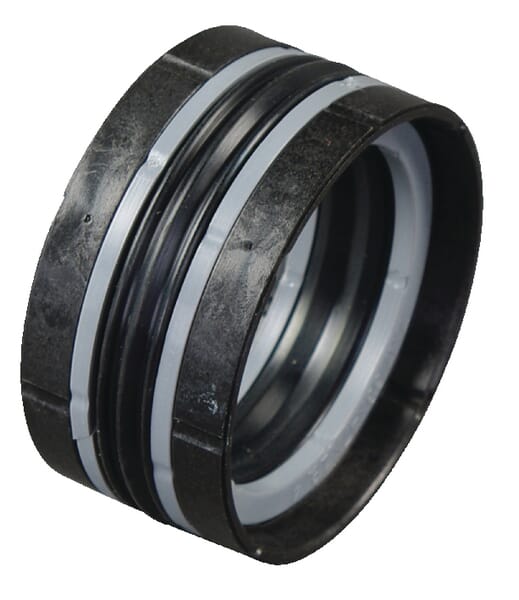

Walterscheid Seal 63 mm 309511
