£603.03
excl. VAT
£723.64 incl. VAT
£723.64
incl. VAT
£603.03 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Mowers, Rotary harrows, Pick-up |
|---|---|
| Benefits | Small installation space, Torque retention, Smooth transition |
| Clutch type code | K92/4 |
| Connection locking type | Collar lock |
| Cross cap diameter | 32 mm |
| Cross length | 76 mm |
| Details | Compact construction, -No interruption of power transmission, Absorb peak loads for a short time |
| Inside connection diamter inch and splines | 1.3/8-6 |

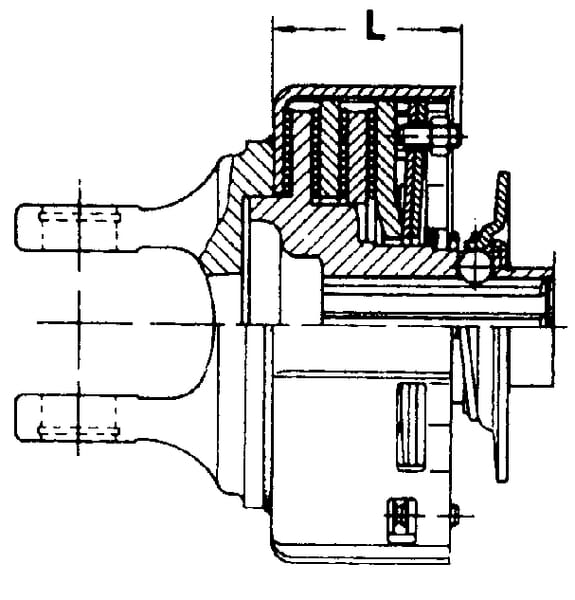

| LClutch part length | 64 mm |
| Long description | Friction clutches with Belleville springs K92 / 4 cpl. 2300, 2400, 2500 |
| Max. rotation speed | 1000 r/min |
| Max static torque | 1350 N·m |
| Original number equivalent | 1321166 |
| Outside diameter | 173 mm |
| Properties | Independent of direction of rotation, Power transmission via friction discs, Not adjustable, Suitable as a starting clutch |
| Shaft size code | W2400 |
| Suitable for machine/vehicle brand | Kuhn, Matsui, Albarus, IFA, Krone, Freudendahl |
| Technical info | Observe maintenance instructions |
| Unit | Each |
Logistics
| EAN | 8435194024181 |
|---|---|
| Unit of measure | EA |
| Weight | 9441 g |
| Dimensions | 220 × 215 × 180 mm |
| Dangerous goods | No |
You might also like
BPA000044820

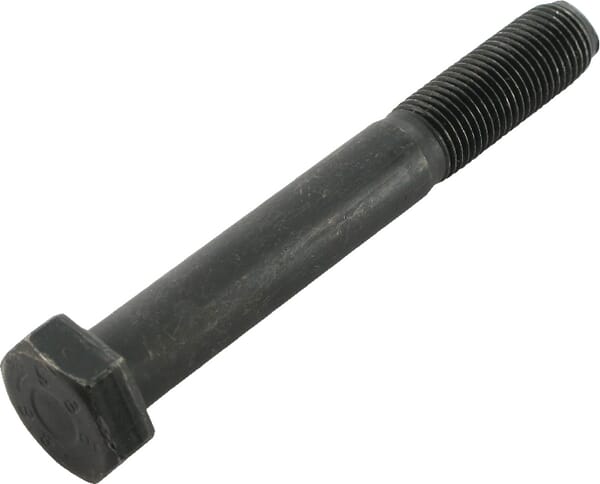

Walterscheid Hexagonal screw 1304223
£12.82 excl.
£15.38 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000178381
Walterscheid 80mm ball drawbar insert 8005731
£1,644.42 excl.
£1,973.30 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000172178
Walterscheid Profile tube coated lemon 1G diameter in: 42.6 diameter out: 48x41x2.7mm L: 1m 7516001000
£55.75 excl.
£66.90 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000172651
Walterscheid Profile tube coated star S4VGA diameter out: 51x37mm L: 1.4m 7544981400
£384.91 excl.
£461.89 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000144884

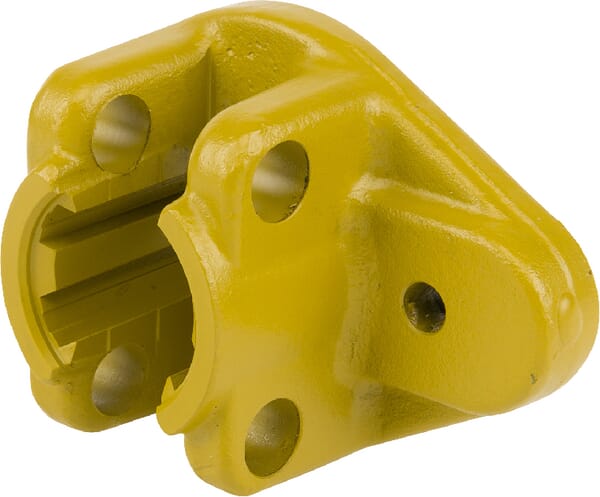

Walterscheid Hub KB61/20 1.3/4 M10 rad.48 572652
