£1,067.79
excl. VAT
£1,281.35 incl. VAT
£1,281.35
incl. VAT
£1,067.79 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mowers, Rotary harrows, Pick-up |
|---|---|
| Benefits | Torque retention, Smooth transition, Wide range of applications |
| Clutch type code | K96/4 |
| Connection locking type | Clamp cone |
| Cross cap diameter | 32 mm |
| Cross length | 86 mm |
| Details | No interruption of power transmission, Absorb peak loads for a short time, Max. torque adjustable via circlip |

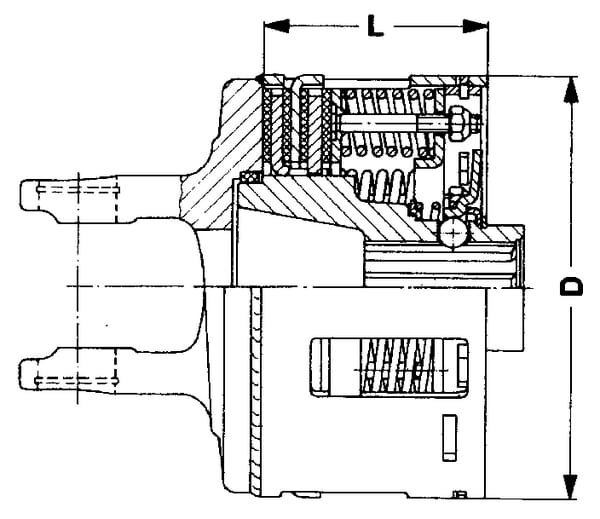

| DOutside diameter | 170 mm |
| Inside connection diamter inch and splines | 1.3/8-6 |
| LClutch part length | 90 mm |
| Long description | Friction clutches with spring pack K96 / 4 cpl. 2400, 2500 |
| Max. rotation speed | 1000 r/min |
| Max static torque | 1350 N·m |
| Original number equivalent | 1101738 |
| Properties | Independent of direction of rotation, Power transmission via friction discs, Adjustable, Suitable as a starting clutch |
| Shaft size code | W2400 |
| Suitable for machine/vehicle brand | Freudendahl |
| Technical info | Observe maintenance instructions |
| Unit | Each |
Logistics
| EAN | 8435194172820 |
|---|---|
| Unit of measure | EA |
| Weight | 12850 g |
| Dimensions | 260 × 220 × 210 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000027495

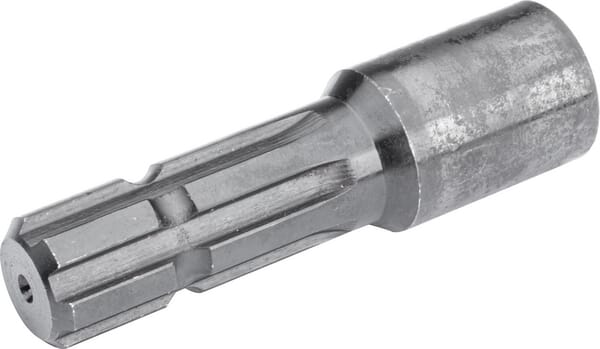

Walterscheid Extension 1059018
£661.90 excl.
£794.28 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000066606

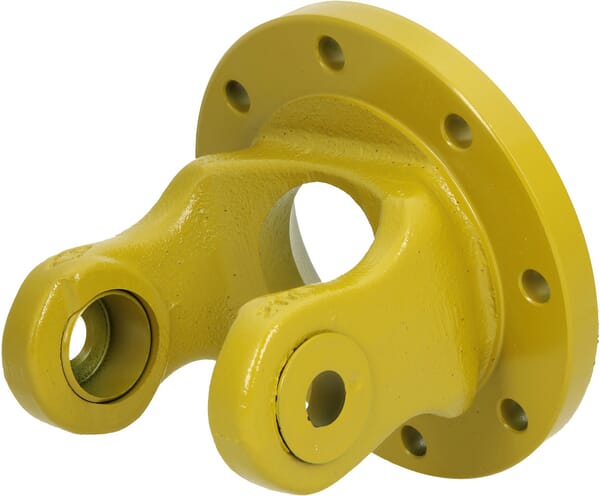

Walterscheid Yoke, Flange, W2300/P300/W300E 216600
£262.05 excl.
£314.46 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000068577

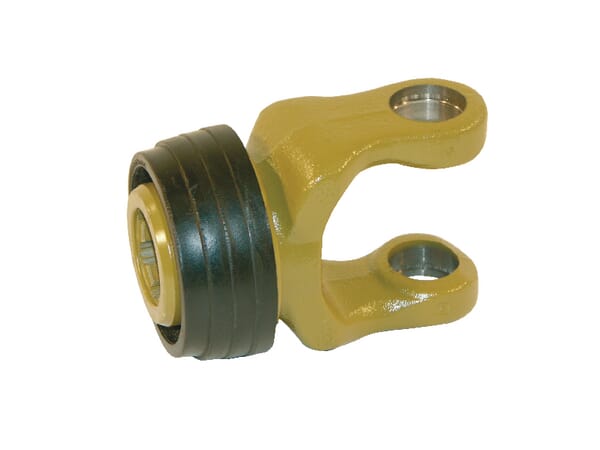

Walterscheid Yoke, quick disconnect, 1-3/8"-21 spline, W2200/W200E 208332
£117.30 excl.
£140.76 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000143611

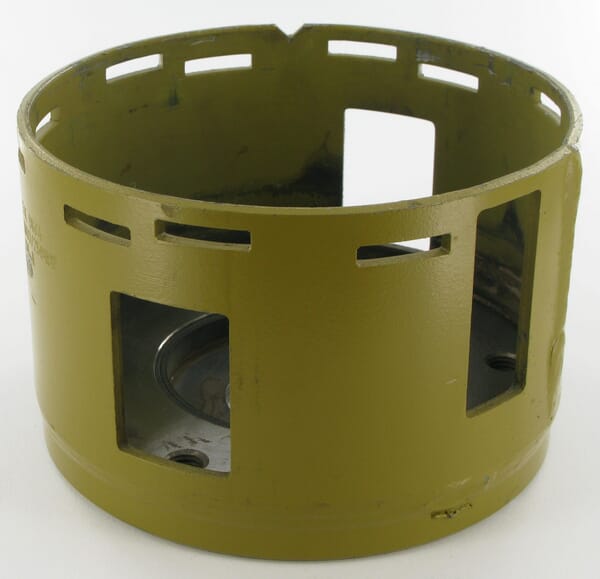

Walterscheid Clutch housing EK96/4 138mm 563903
£374.87 excl.
£449.84 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000076974
Walterscheid Flange 2615101
£277.14 excl.
£332.57 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000400108

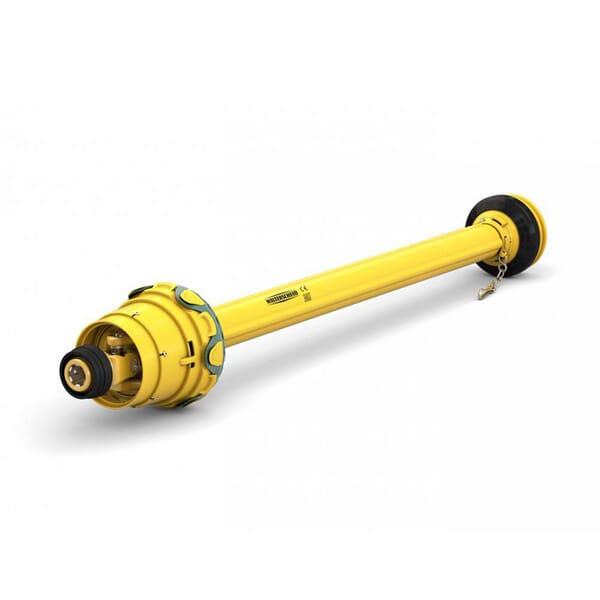

Walterscheid Wide angle PTO shaft WWE 2480 L: 1010mm, WWE24801010
