£1,033.42
excl. VAT
£1,240.10 incl. VAT
£1,240.10
incl. VAT
£1,033.42 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Mowers, Rotary harrows, Pick-up |
|---|---|
| Benefits | Torque retention, Smooth transition, Wide range of applications |
| Clutch type code | K96/4 |
| Connection locking type | Clamp cone |
| Cross cap diameter | 36 mm |
| Cross length | 100 mm |
| Details | No interruption of power transmission, Absorb peak loads for a short time, Max. torque adjustable via circlip |

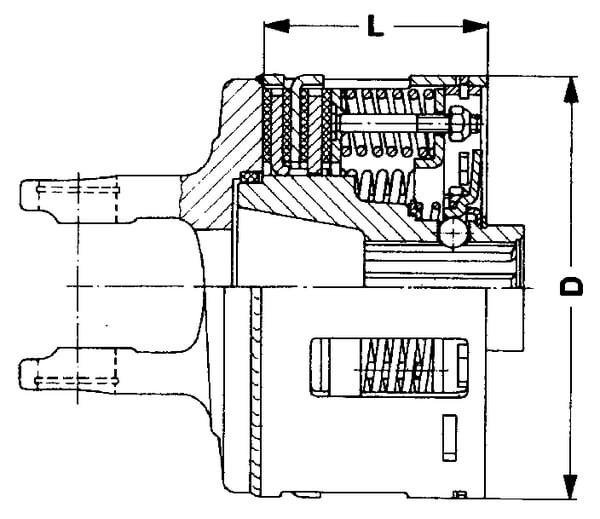

| DOutside diameter | 170 mm |
| Inside connection diamter inch and splines | 1.3/8-6 |
| LClutch part length | 90 mm |
| Long description | Friction clutches with spring pack K96 / 4 cpl. 2400, 2500 |
| Max. rotation speed | 1000 r/min |
| Max static torque | 1500 N·m |
| Original number equivalent | 1101007 |
| Properties | Independent of direction of rotation, Power transmission via friction discs, Adjustable, Suitable as a starting clutch |
| Shaft size code | W2500 |
| Suitable for machine/vehicle brand | n/a |
| Technical info | Observe maintenance instructions |
| Unit | Each |
Logistics
| EAN | 8435194173155 |
|---|---|
| Unit of measure | EA |
| Weight | 13425 g |
| Dimensions | 260 × 225 × 210 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000092719

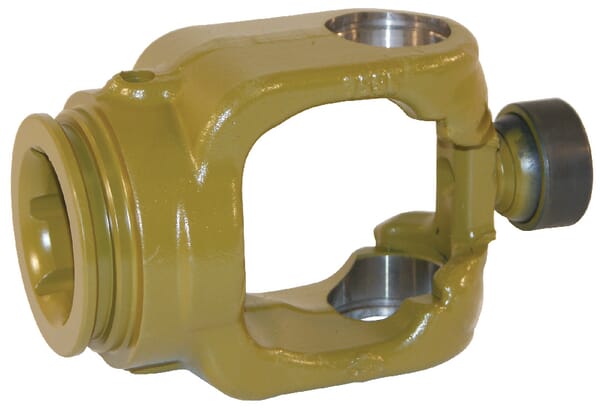

Walterscheid Yoke, Profile tube, 61x47mm, P480 3514311
£416.38 excl.
£499.66 incl.
In stock
Expected to ship on Friday 18 September
BPA000084020
Walterscheid Toplink ball Cat.1/1 diameter 19.2/38x44mm 305277
£13.33 excl.
£16.00 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000178363

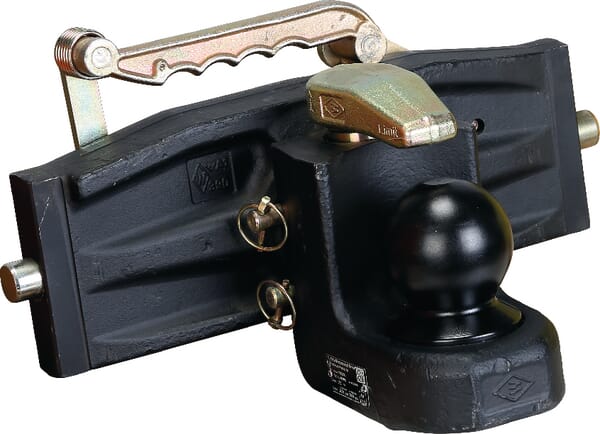

Walterscheid Trailer Ball coupling 80 mm 8005217
