£978.33
excl. VAT
£1,174.00 incl. VAT
£1,174.00
incl. VAT
£978.33 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mowers, Rotary harrows, Pick-up |
|---|---|
| Benefits | Torque retention, Smooth transition, Wide range of applications |
| Clutch type code | K96/4 |
| Connection locking type | Clamp cone |
| Cross cap diameter | 36 mm |
| Cross length | 100 mm |
| Details | No interruption of power transmission, Absorb peak loads for a short time, Max. torque adjustable via circlip |

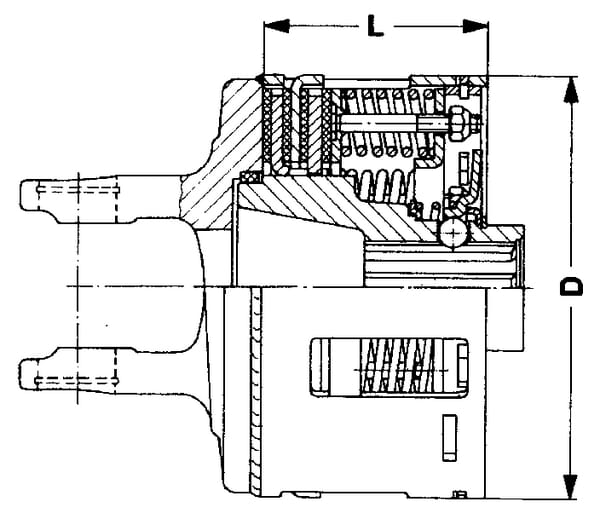

| DOutside diameter | 170 mm |
| Inside connection diamter inch and splines | 1.3/8-6 |
| LClutch part length | 90 mm |

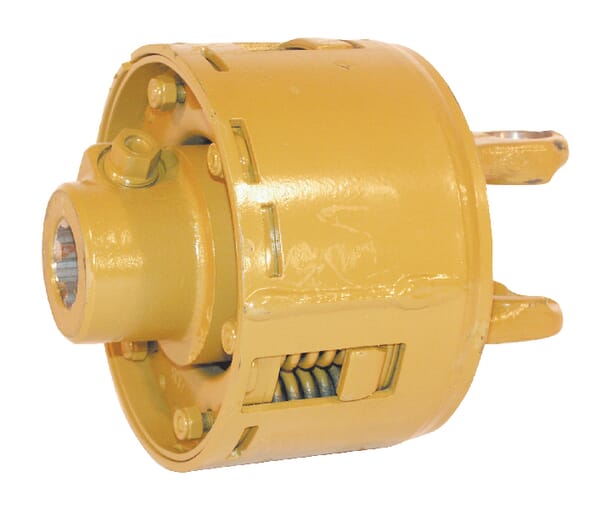

| Long description | Friction clutches with spring pack K96 / 4 cpl. 2400, 2500 |
| Max. rotation speed | 1000 r/min |
| Max static torque | 1800 N·m |
| Original number equivalent | 1101735 |
| Properties | Independent of direction of rotation, Power transmission via friction discs, Adjustable, Suitable as a starting clutch |
| Shaft size code | W2500 |
| Suitable for machine/vehicle brand | Rau |
| Technical info | Observe maintenance instructions |
| Unit | Each |
Logistics
| EAN | 8432970131392 |
|---|---|
| Unit of measure | EA |
| Weight | 13275 g |
| Dimensions | 250 × 170 × 170 mm |
| Dangerous goods | No |
You might also like
BPA000098644
Walterscheid Cross journal diameter 36x89mm 2500 360000
£56.15 excl.
£67.38 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000146537

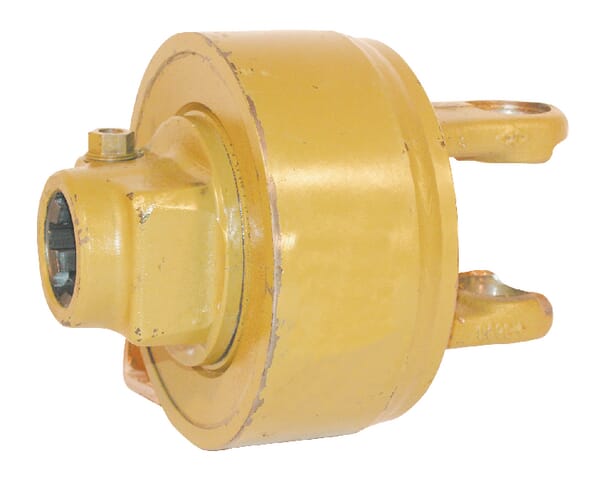

Walterscheid Cam clutch K64/12R 120 daNm 5910841120
£1,189.16 excl.
£1,426.99 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000038088
Walterscheid Toplink 1206015
£2,194.48 excl.
£2,633.38 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000056374

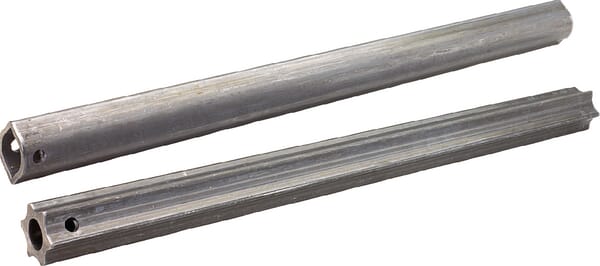

Walterscheid Profile tube 1693668
£190.98 excl.
£229.18 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000142963
Walterscheid Friction clutch K90TF W2300 561003890
£719.00 excl.
£862.80 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000033942

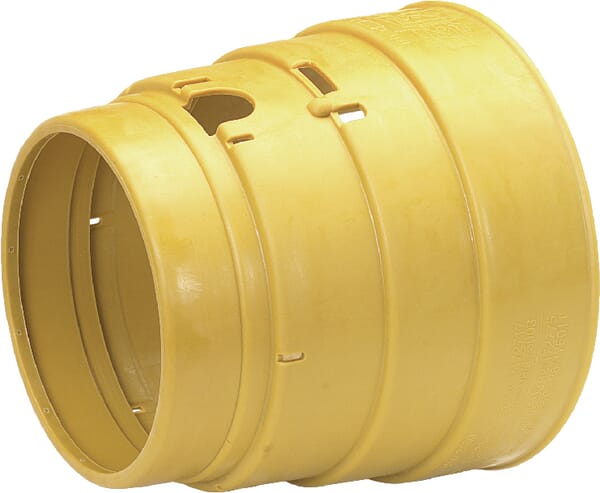

Walterscheid Guard cone 1175004
