£534.63
excl. VAT
£641.56 incl. VAT
£641.56
incl. VAT
£534.63 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Attachment machine side | Quick disconnect yoke |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint length by machine side | 75 mm |
| Cross joint length by tractor side | 75 mm |
| Inner tube large outside diameter | 49 mm |
| Inner tube profile | 1b |
| Inner tube wall thickness | 4.5 mm |
| Length | 1010 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Automatic collar lock |
| Max static torque | 2500 N·m |
| Original number equivalent | 1800055 |
| Outer tube large outside diameter | 57.5 mm |
| Outer tube profile | 2a |
| Outer tube wall thickness | 4 mm |
| Power 1000 rpm | 44 kW |
| Power 540 rpm | 28 kW |
| Profile tube shape | Lemon |
| Protection type | ST25 |
| Size code | W2300 |
| Unit | Each |
Logistics
| EAN | 8435194196246 |
|---|---|
| Unit of measure | EA |
| Weight | 15000 g |
| Dimensions | 1250 × 170 × 170 mm |
| Dangerous goods | No |
You might also like
BPA000033776

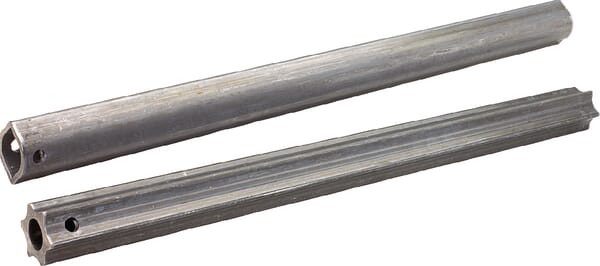

Walterscheid Profile 1170393
£75.77 excl.
£90.92 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000092762

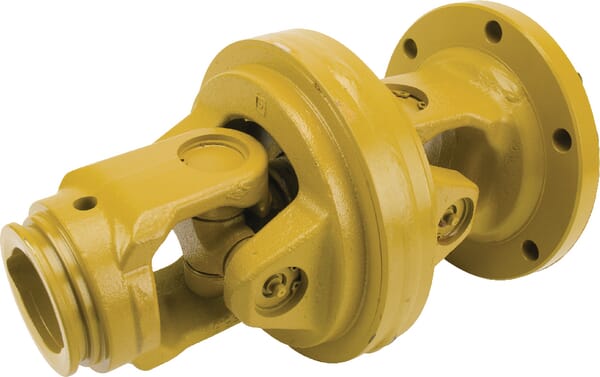

Walterscheid Wide-angle joint PJ 480 35193103514310
£1,170.44 excl.
£1,404.53 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000068161

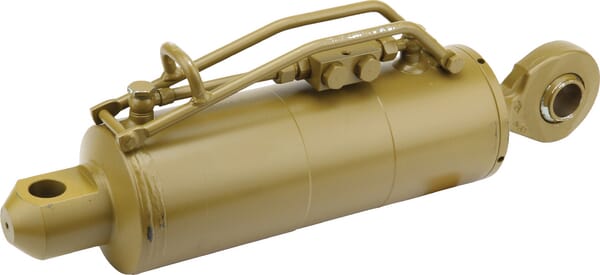

Walterscheid Hydraulic toplink cat.4/3, diameter 120 mm 205130
£1,801.00 excl.
£2,161.20 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000363756

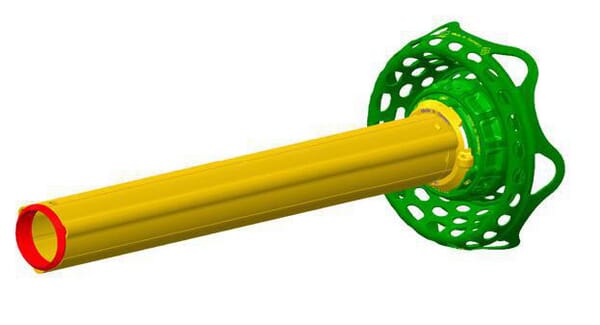

Walterscheid Guard half inner ST25 flex ST251500IFLEX
£157.98 excl.
£189.58 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000144523

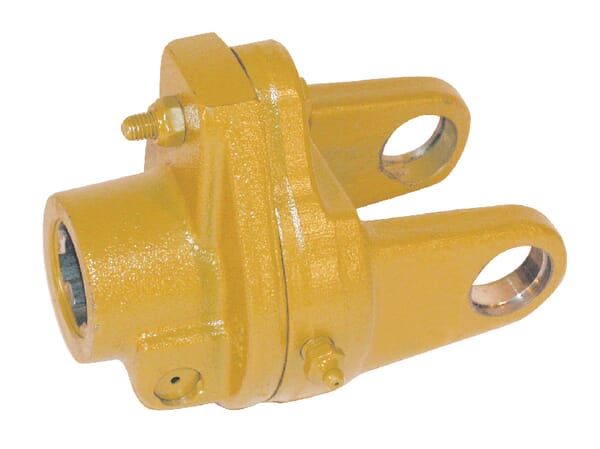

Walterscheid Shearbolt clutch KB61/20 5712618
£403.43 excl.
£484.12 incl.
In stock
Expected to ship on Monday 21 September
BPA000178320

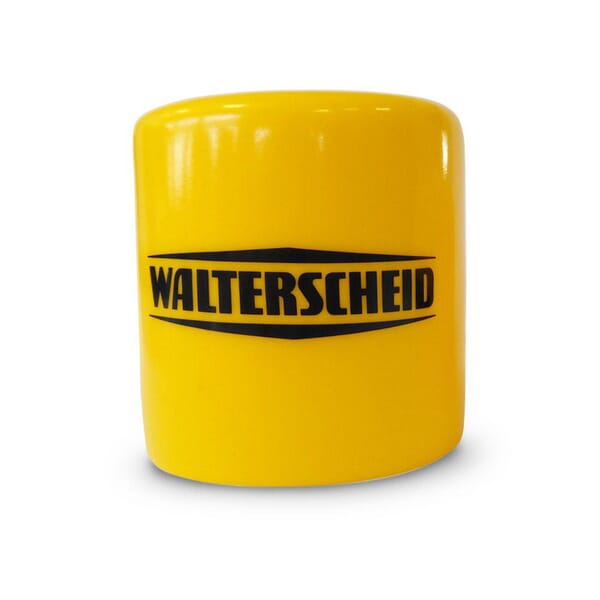

Walterscheid Cover 80 mm ball 8004664
