£379.87
excl. VAT
£455.84 incl. VAT
£455.84
incl. VAT
£379.87 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Harvesters, Soil cultivating machinery, Wood shredders |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | n/a |
| Benefits | Longer service life than standard pto shaft, Lower maintenance costs, Faster coupling |
| Consists of | Pto shaft with guard tube, Declaration of conformity, Instruction manual, Delivered without yokes |
| Cross joint bush diameter by machine side | 36 mm |
| Cross joint bush diameter by tractor side | 36 mm |
| Cross joint length by machine side | 89 mm |
| Cross joint length by tractor side | 89 mm |
| Details | Dispense duration: 100–250 hours, Profiled guard tube prevents turning., Sealed profile tube prevents infiltration of dirt., Quickly removable shielding, No safety chain on tractor side required |
| Inner tube profile | S4LH |
| Length | 1116 mm |

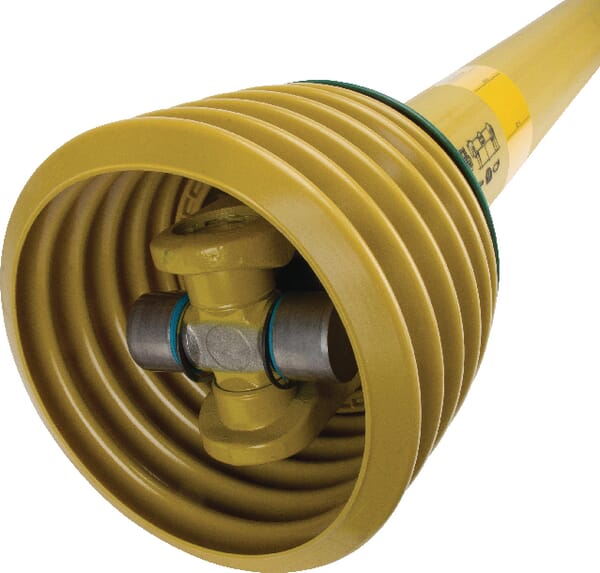

| Long description | PTO drive shafts complete Power Drive series P 500 |
| Original number equivalent | 1113268 |
| Properties | Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | PG20 |
| Size code | P500 |

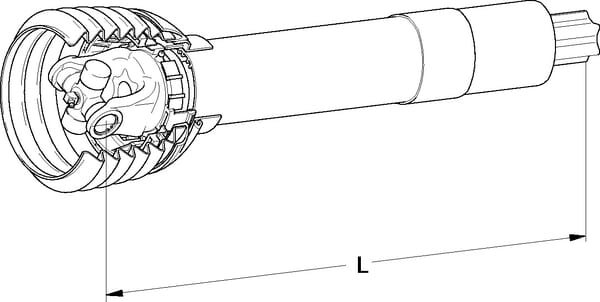

| Technical info | See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm, Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm, Values at working angle 5° and service life 1000 hours, LZ = closed length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 10870 g |
| Dimensions | 1160 × 200 × 200 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000065225
Walterscheid Yoke, Hub, 25mm, W2200/W200E 201510
£156.95 excl.
£188.34 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000084696

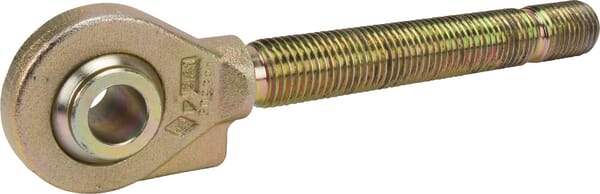

Walterscheid Toplink spindle M30x3,5 22,2x270 mm 309684
£131.95 excl.
£158.34 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000400722

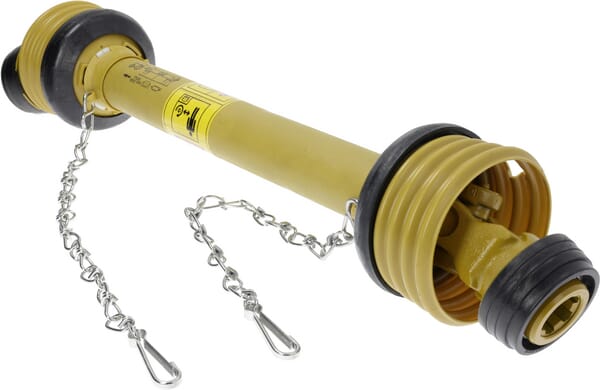

Walterscheid PTO shaft W2100 L: 710mm, W2100710
£318.35 excl.
£382.02 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000033210

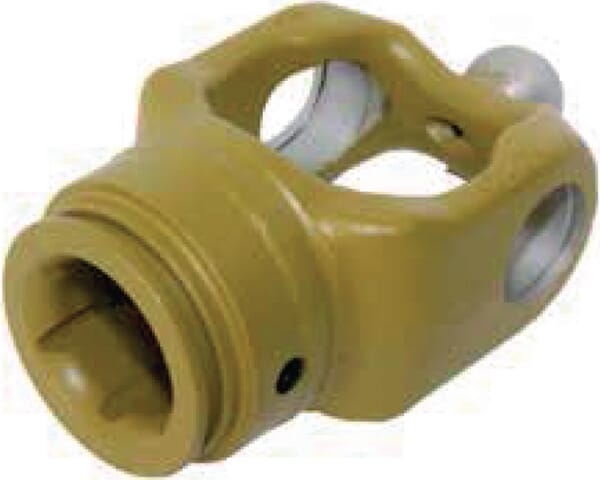

Walterscheid Yoke, profile tube, W2580 1134720
£420.07 excl.
£504.08 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000095424

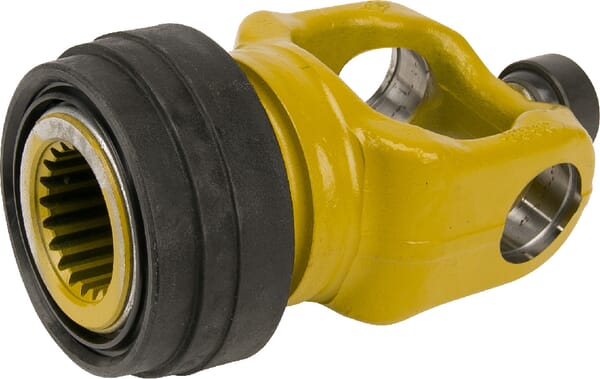

Walterscheid Yoke, quick disconnect, 1-3/4"-20 spline, P580 3684320M
£532.38 excl.
£638.86 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000140231

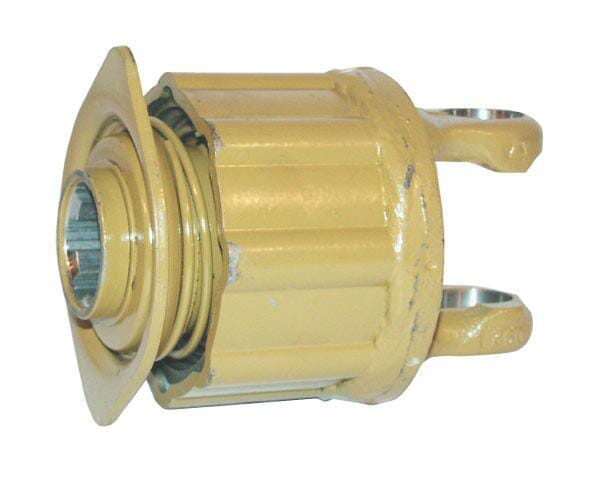

Walterscheid Radial pin clutch K32B 552000350
