£156.95
excl. VAT
£188.34 incl. VAT
£188.34
incl. VAT
£156.95 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Original Walterscheid PTO shafts |
|---|---|
| Bolt thread diameter | M8 |
| Connection diameter tolerance code | R7 |
| Consists of | Fork, Roll pin not included |

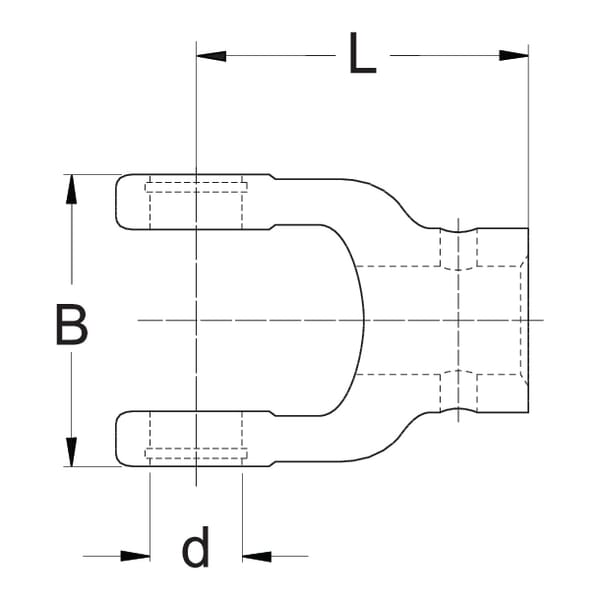

| d1Width | 70 mm |
| dCross cap diameter | 24 mm |
| Includes | Yoke, Excludes spring pin |
| Key width | 8 mm |
| LLength | 80 mm |
| Locking system | Roll pin bore |
| Long description | Spring pin yokes with bore series W 2000 |
| Original number equivalent | 1041081 |
| Outside connection diameter | 25 mm |
| Product details | Yoke must be secured with a spring pin, Fit R7 = press fit, Fit H8 = slide fit |
| Shaft size code | W2200, W200E |
| Technical info | Fork must be secured with a roll pin, Fit R7 = press fit, Fit H8= sliding fit |
| Type | Hub |
| Unit | Each |
Logistics
| EAN | 8435194177313 |
|---|---|
| Unit of measure | EA |
| Weight | 700 g |
| Dimensions | 100 × 75 × 75 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000065228
Walterscheid Yoke, Hub, 25mm, W2200/W200E 201511
£141.48 excl.
£169.78 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000040955

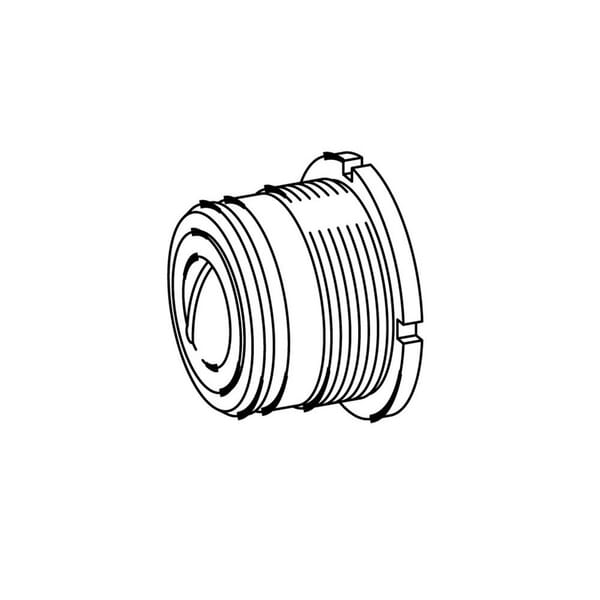

Walterscheid Cylinder cap 1204068
£280.14 excl.
£336.17 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000065455

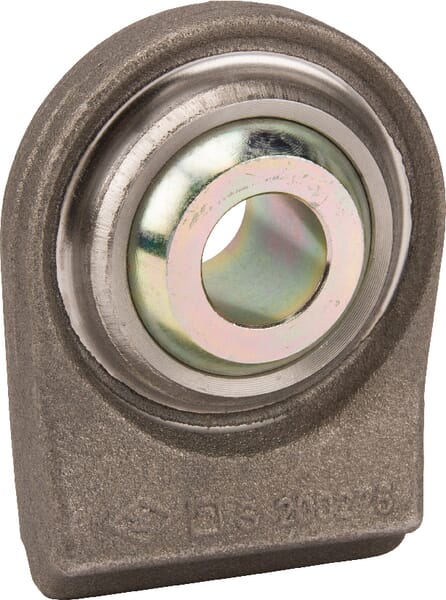

Walterscheid Ball end cat. 3/2 202296
£140.84 excl.
£169.01 incl.
In stock
Expected to ship on Friday 18 September
BPA000084029

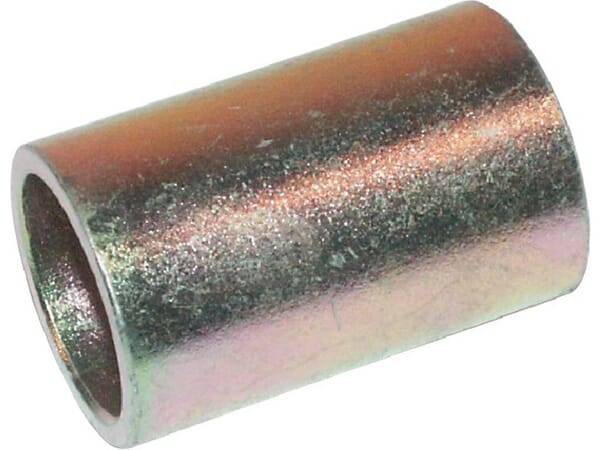

Walterscheid Adaptor bush 28.7 - 37.0mm 305280
£7.47 excl.
£8.96 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000029520

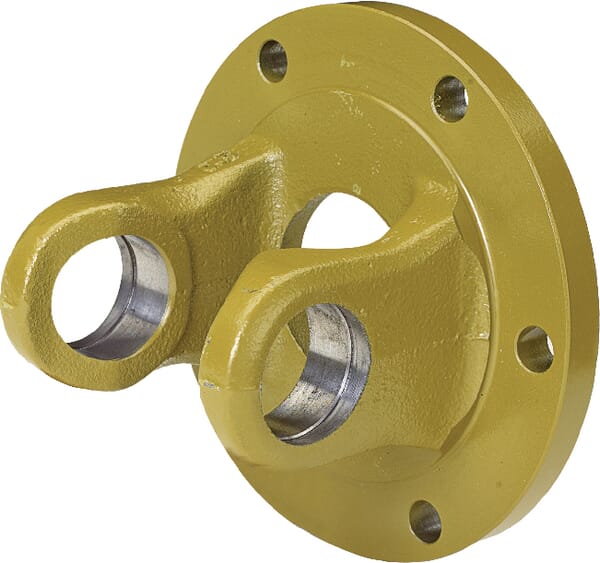

Walterscheid Yoke, flange, W2500/P500 1115611
