£849.57
excl. VAT
£1,019.48 incl. VAT
£1,019.48
incl. VAT
£849.57 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Broad spreader, Slurry wagon, Big baler, Silage wagon |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | n/a |
| Benefits | Longer service life than standard pto shaft, Lower maintenance costs, Faster coupling |
| Consists of | Wide angle pto-shaft, 1 sided, with guard tube, Declaration of conformity, Instruction manual, Delivered without yokes |
| Cross joint bush diameter by machine side | 36 mm |
| Cross joint bush diameter by machine side - longer part | 32 mm |
| Cross joint bush diameter by tractor side | 36 mm |
| Cross joint bush diameter by tractor side - longer part | 32 mm |
| Cross joint length by machine side | 89 mm |
| Cross joint length by machine side - longer part | 106 mm |
| Cross joint length by tractor side | 89 mm |
| Cross joint length by tractor side - longer part | 106 mm |
| Details | Robust, radial spherical plain bearing integrated in centring system, Profiled guard tube prevents turning., Sealed profile tube prevents infiltration of dirt., Quickly removable shielding, No safety chain on tractor side required |
| Inner tube profile | S4GA |

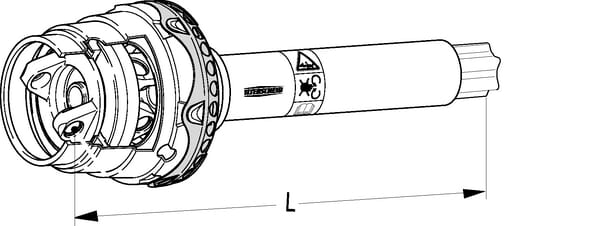

| Length | 1114 mm |
| Original number equivalent | 1113276 |
| Properties | Lubrication interval: max. 60 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | PG20 |
| Size code | PWH 580 |
| Technical info | Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm, Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm, Values at working angle 10° and service life 1000 hours, LZ = closed length centre distance of outer intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 25000 g |
| Dimensions | 1170 × 260 × 260 mm |
| Dangerous goods | No |
You might also like
BPA000038062
Walterscheid Releasing lever 1205576
£40.96 excl.
£49.15 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000084542
Walterscheid Clamp 307982
£17.10 excl.
£20.52 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000067476
Walterscheid Yoke, hub, 35mm, W2380 2124827
£832.71 excl.
£999.25 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000189289

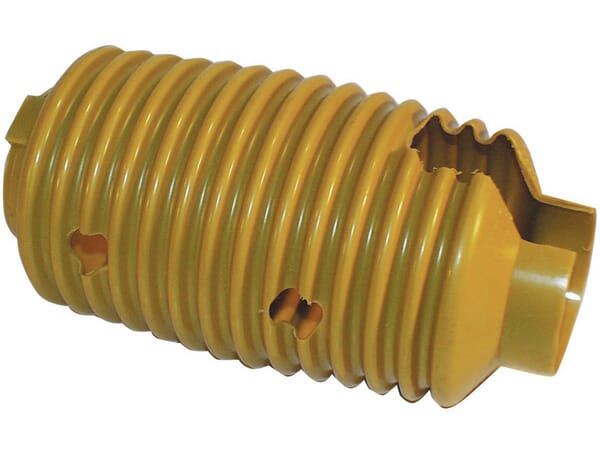

Walterscheid Guard cone SC15 RP12 double 8515101
£31.91 excl.
£38.29 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000098378

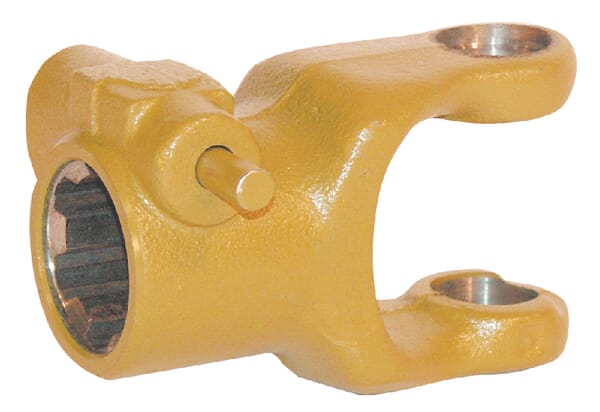

Walterscheid Yoke, quick disconnect, 1-3/8"-21 spline, W2400/P400/W400E 3579101
