£593.77
excl. VAT
£712.52 incl. VAT
£712.52
incl. VAT
£593.77 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Heavy-duty soil cultivating machinery, Wood shredders, Stump grinders |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | n/a |
| Consists of | PTO shaft with shielding, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 42 mm |
| Cross joint bush diameter by tractor side | 42 mm |
| Cross joint length by machine side | 104 mm |
| Cross joint length by tractor side | 104 mm |
| Details | Delivery without yokes. |
| Includes | Half PTO shaft with guard, Declaration of conformity, User instructions, Supplied without yokes |
| Inner tube profile | S5H |

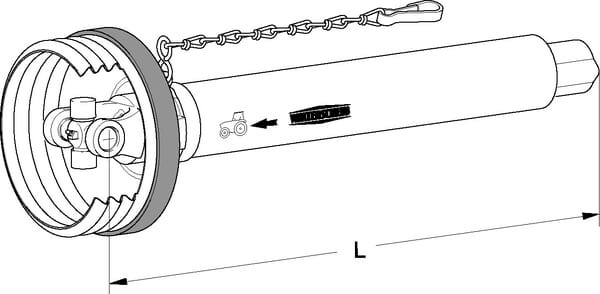

| Length | 1107 mm |
| Long description | Coupling shafts standard series W 2600 without yokes suitable for various agricultural machines |
| Original number equivalent | 1113186 |
| Product details | Half PTO shaft with guard, Declaration of conformity, User instructions, Supplied without yokes, Lubricating interval of 50 to 100 hours, Meets the requirements according to EC 89/392 EEC, Meets safety standard EN12965, Provided with "CE" marking, Observe Walterscheid instruction manual, Max. dyn. power 540 rpm: 79kW - 1400Nm, Max. dyn. power 1000 rpm: 122kW - 1165Nm, Values at bending angle 5° and service life 1000 hours |
| Properties | Lubrication frequency from 50 to 100 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Fulfilling the safety standard EN12965, CE marking available |
| Pros | Heavy-duty soil cultivating machinery, Wood chipper, Stump grinder etc. |
| Protection type | SG35 |
| Size code | W2600 |
| Technical info | See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 79 kW, 1400 Nm, Max. dynamic capacity 1000 rpm: 122 kW, 1165 Nm, Values at working angle 5° and service life 1000 hours, LZ = slid in length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 13100 g |
| Dimensions | 1150 × 200 × 200 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000146898

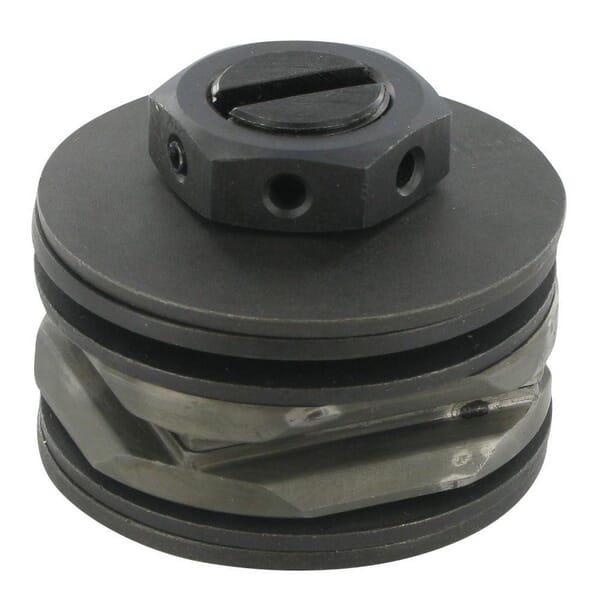

Walterscheid Spring set K64/24 380daNm 592700380
£146.80 excl.
£176.16 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000244789

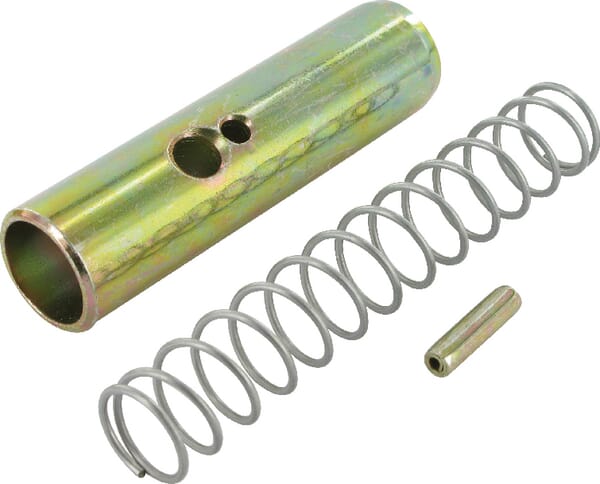

Walterscheid Lock pin 22x85mm Cramer CK43359022
£102.94 excl.
£123.53 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000096152

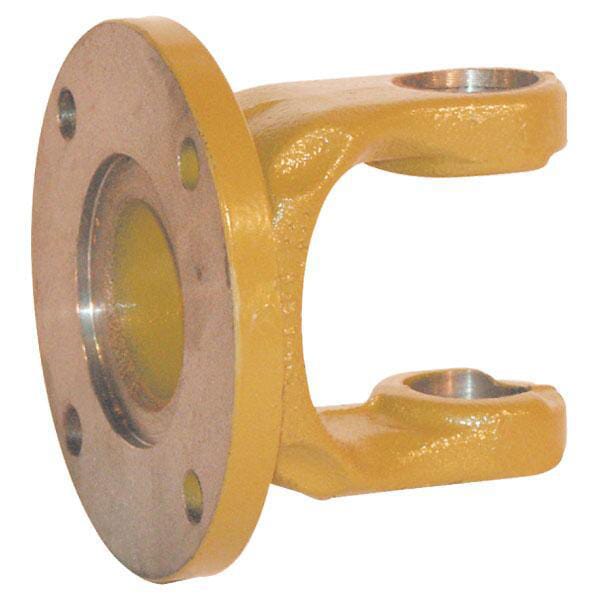

Walterscheid Yoke, Flange, W2500/P500 362700
£318.35 excl.
£382.02 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000144254

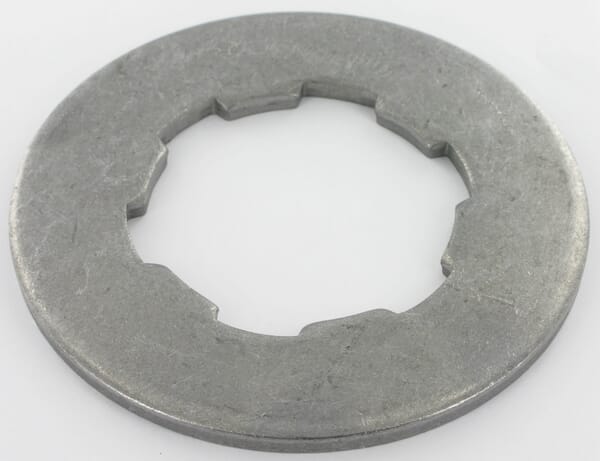

Walterscheid Drive plate K90/4 569400
