£324.14
excl. VAT
£388.97 incl. VAT
£388.97
incl. VAT
£324.14 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Small crop sprayers, Artificial fertiliser spreaders, Tedders, Windrowers |
|---|---|
| Attachment machine side | Friction clutch |
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | K94/1 |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with joint and guard tube, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 22 mm |
| Cross joint bush diameter by tractor side | 22 mm |
| Cross joint length by machine side | 55 mm |
| Cross joint length by tractor side | 55 mm |
| Inner tube large outside diameter | 31 mm |
| Inner tube profile | OOc |
| Inner tube wall thickness | 3.4 mm |
| Length | 1010 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Max. clutch torque | 400 N·m |
| Max static torque | 1000 N·m |
| Original number equivalent | 1800020 |
| Outer tube large outside diameter | 39 mm |
| Outer tube profile | Oa |
| Outer tube wall thickness | 2.8 mm |
| Power 1000 rpm | 18 kW |
| Power 540 rpm | 12 kW |
| Profile tube shape | Lemon |
| Properties | Tractor side 1-3/8" (6) shaft collar kit, Machinery side 1-3/8" (6) quick release coupling, Lubrication interval: 8 hours, CE marking awarded |
| Protection type | SD05 |
| Size code | W100E |
| Technical info | Follow the Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 12 kW, 210 Nm, Max. dynamic capacity 1000 rpm: 18 kW, 175 Nm, Values at a working angle of 5° and service life 700 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 9350 g |
| Dimensions | 1300 × 125 × 125 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000029594

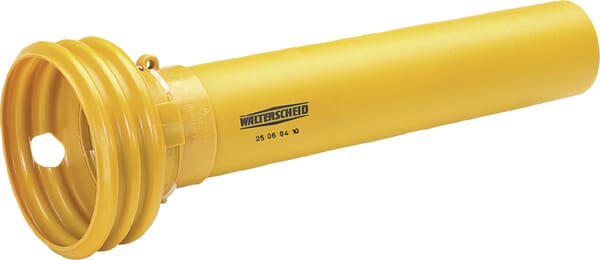

Walterscheid PTO outer half guard, L: 1500mm 1116438
£136.47 excl.
£163.76 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000400125
Walterscheid Wide angle PTO shaft WWE 2580 L: 1610mm, WWE25801610
£1,521.15 excl.
£1,825.38 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000021424

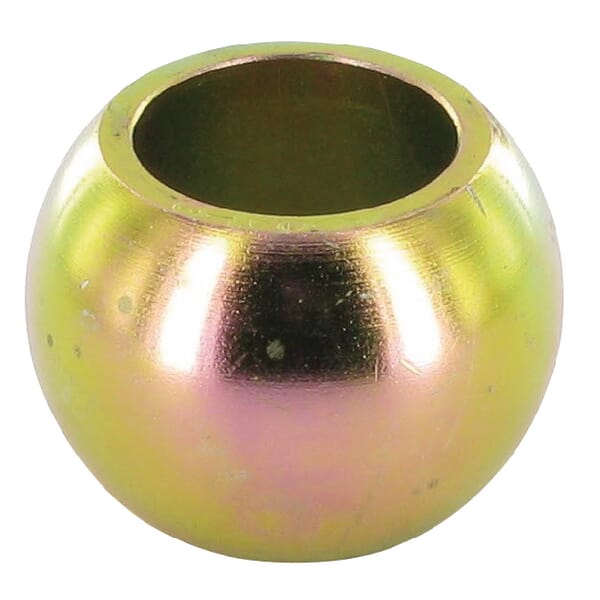

Walterscheid Lower link ball Cat.3/3 diameter 37.3/64x45mm 099038
£17.38 excl.
£20.86 incl.
In stock
Expected to ship on Wednesday 23 September
Free shipping
BPA000076529

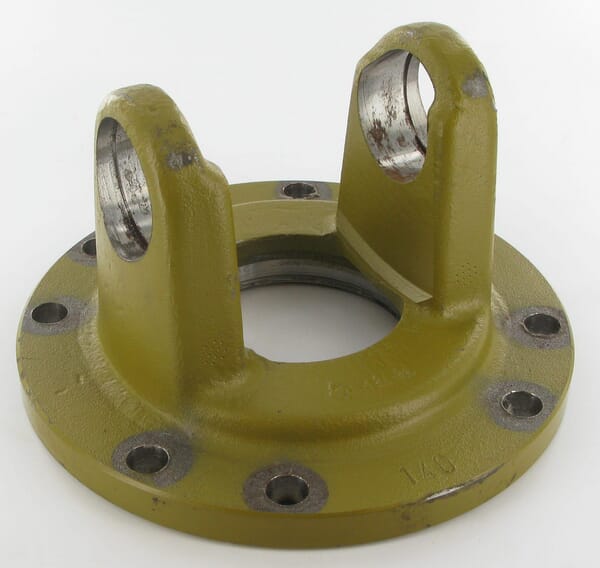

Walterscheid Yoke, Flange, W2600/P600 267301
£469.30 excl.
£563.16 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000178282

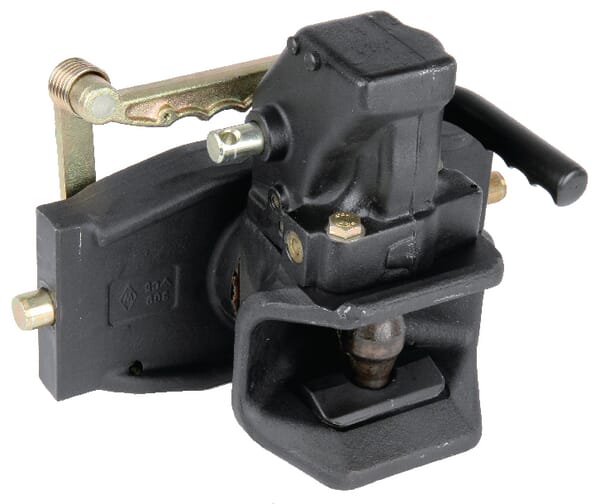

Walterscheid Trailer coupling 309mm 8004187
£1,661.58 excl.
£1,993.90 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000140348

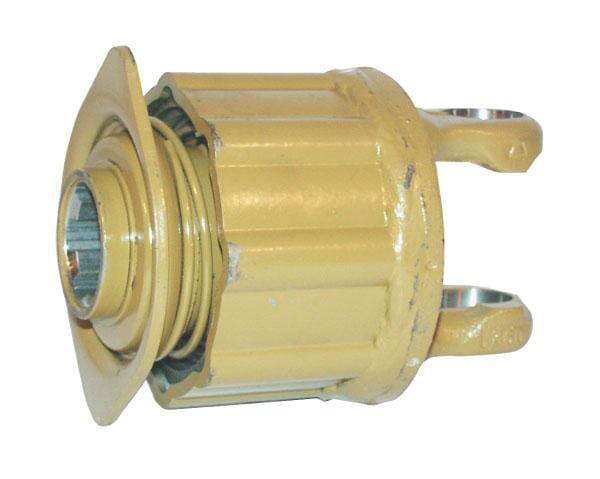

Walterscheid Radial pin clutch K31B 553690326
