£502.48
excl. VAT
£602.98 incl. VAT
£602.98
incl. VAT
£502.48 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September

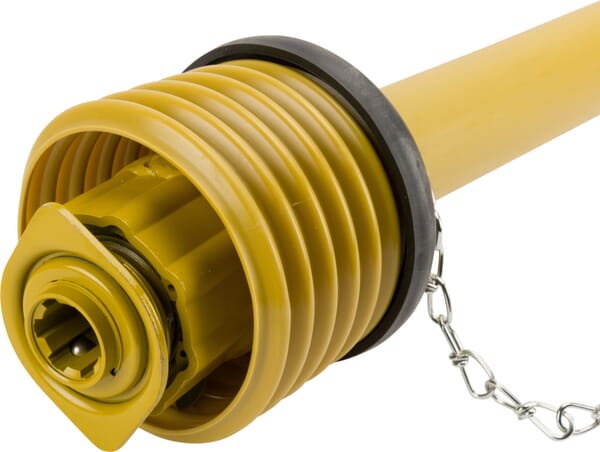

Product details

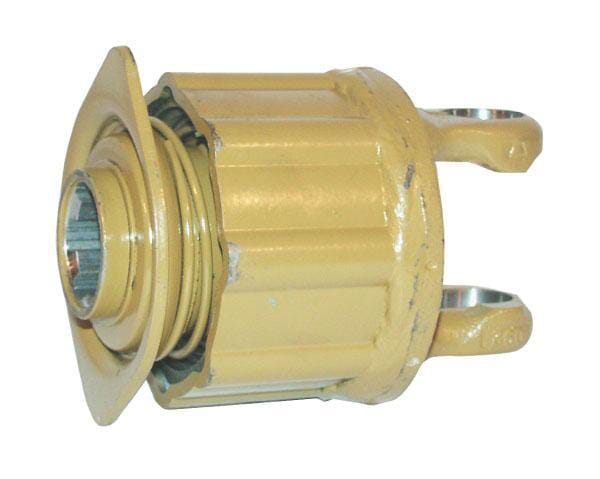

| Attachment machine side | Radial pin clutch |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | K32B |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | Pto shaft with shield and slip clutch K32B (60 daNm), Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 24 mm |
| Cross joint bush diameter by tractor side | 24 mm |
| Cross joint length by machine side | 61 mm |
| Cross joint length by tractor side | 61 mm |
| Inner tube large outside diameter | 40 mm |
| Inner tube profile | Ov |
| Inner tube wall thickness | 4 mm |
| Length | 710 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Long description | PTO drive shafts complete for various machines series W 2200 |
| Max. clutch torque | 600 N·m |
| Max static torque | 1850 N·m |
| Original number equivalent | 1690179 |
| Outer tube large outside diameter | 48 mm |
| Outer tube profile | 1 |
| Outer tube wall thickness | 3 mm |
| Power 1000 rpm | 31 kW |
| Power 540 rpm | 20 kW |
| Profile tube shape | Lemon |
| Properties | Lubrication frequency from 50 to 100 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | SD15 |
| Size code | W2200 |
| Technical info | See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 20 kW, 335 Nm, Max. dynamic capacity 1,000 rpm: 31 kW, 295 Nm, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 10830 g |
| Dimensions | 1000 × 170 × 170 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000095412

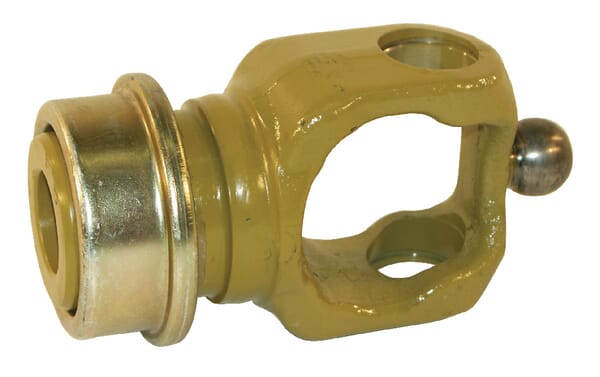

Walterscheid Yoke, quick disconnect, 1-3/4"-20 spline, W2580 3684112M
£447.29 excl.
£536.75 incl.
In stock
Expected to ship on Monday 21 September
BPA000151104

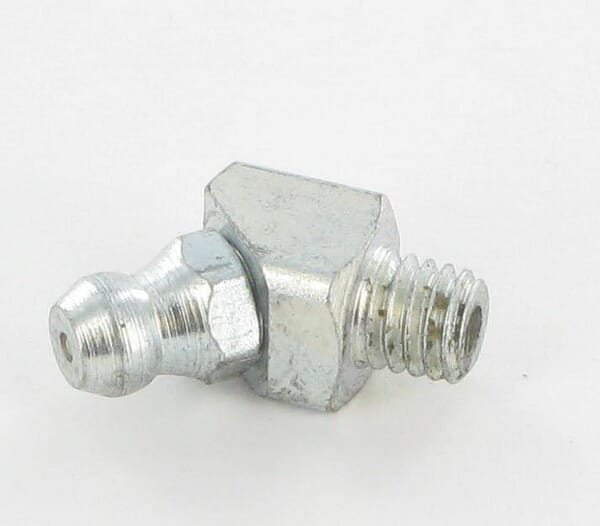

Walterscheid Grease nipple M6 - 45° 632202
£2.04 excl.
£2.45 incl.
In stock
Expected to ship on Monday 21 September
BPA000188414

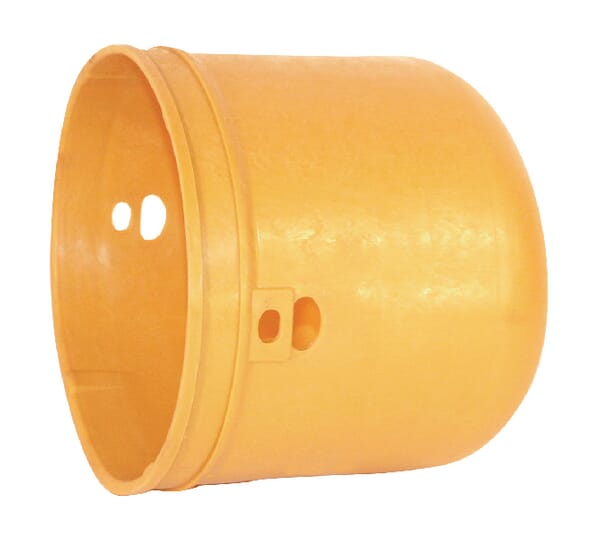

Walterscheid Guard cone-275x217x210 822500
£37.97 excl.
£45.56 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000095360

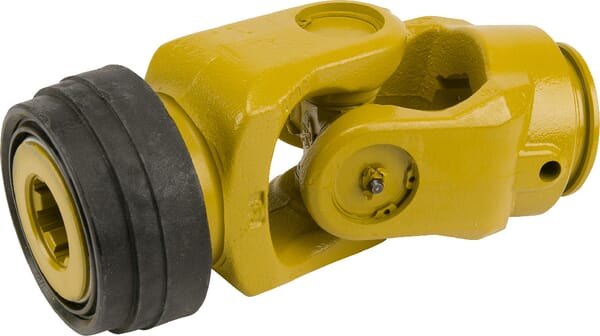

Walterscheid Single joint W2500 - S4 3683003613100
£331.98 excl.
£398.38 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000400118

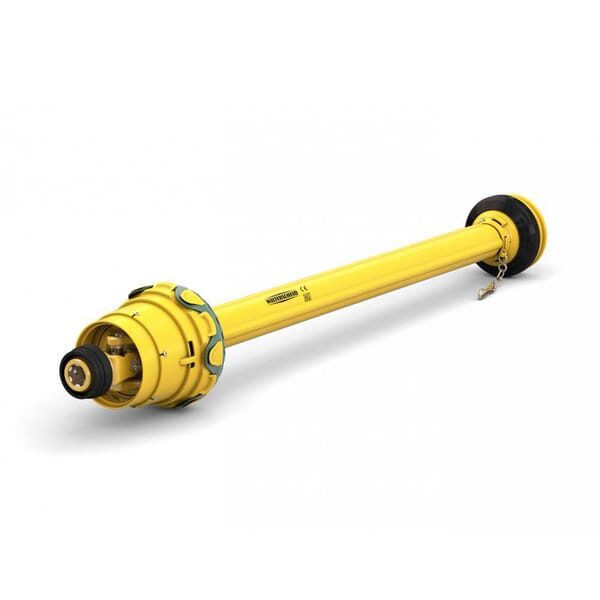

Walterscheid Wide angle PTO shaft WWE 2480 L: 710mm, WWE2480710
