£380.80
excl. VAT
£456.96 incl. VAT
£456.96
incl. VAT
£380.80 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September

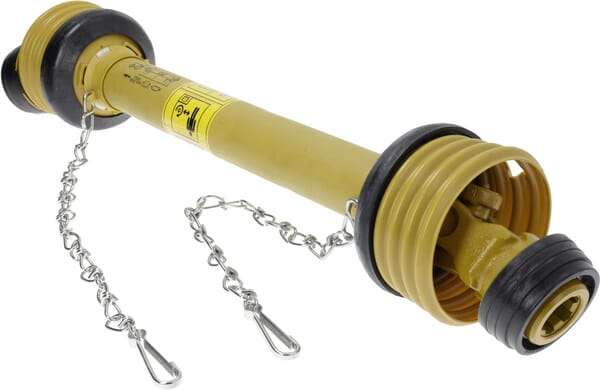

Product details
| Application range | Small crop sprayers, Tedders, Windrowers |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | PTO shaft with shielding, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 24 mm |
| Cross joint bush diameter by tractor side | 24 mm |
| Cross joint length by machine side | 61 mm |
| Cross joint length by tractor side | 61 mm |
| Inner tube large outside diameter | 40 mm |
| Inner tube profile | Ov |
| Inner tube wall thickness | 4 mm |
| Length | 860 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Long description | PTO drive shafts complete standard series W 2200 |
| Max static torque | 1850 N·m |
| Original number equivalent | 1800044 |
| Outer tube large outside diameter | 48 mm |
| Outer tube profile | 1 |
| Outer tube wall thickness | 3 mm |
| Power 1000 rpm | 31 kW |
| Power 540 rpm | 20 kW |
| Profile tube shape | Lemon |
| Properties | Tension side 1-3/8" (6) shaft collar kit, Machine side 1-3/8" (6) slide pin, Lubrication frequency from 50 to 100 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Fulfilling the safety standard EN12965, CE marking available |
| Protection type | ST15 |
| Size code | W2200 |

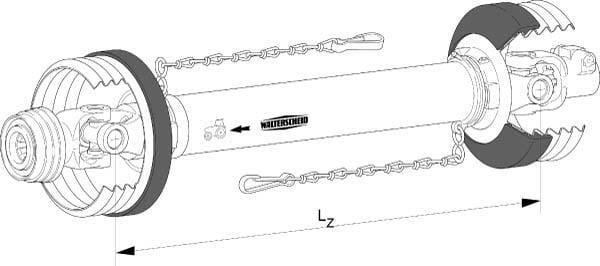

| Technical info | See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 20 kW, 335 Nm, Max. dynamic capacity 1000 rpm: 31 kW, 295 Nm, Values at working angle 5° and service life 1000 hours, LZ = slid in length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 8500 g |
| Dimensions | 1107 × 160 × 160 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000095999
Walterscheid Yoke, Clamp bolt, 1-3/4"-20 spline, W2500/P500 361806
£173.23 excl.
£207.88 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000366255

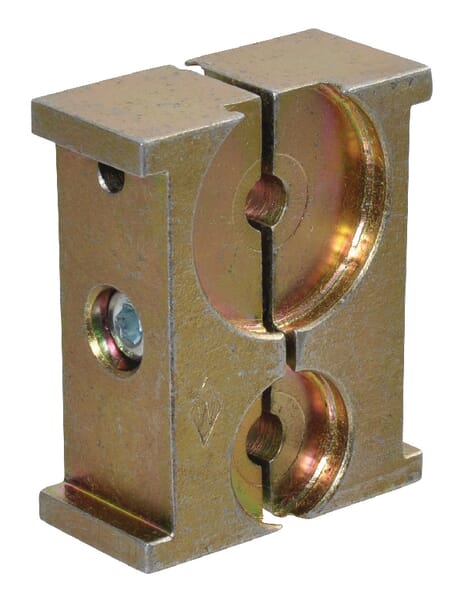

Walterscheid Special tool SW23
£485.67 excl.
£582.81 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000144231

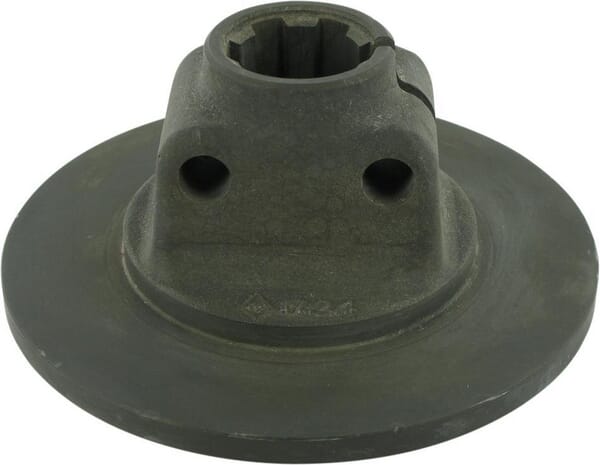

Walterscheid Flange hub K90 1.3/8 569004
£302.30 excl.
£362.76 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000065065
Walterscheid Agraset AG 373 201033
£145.32 excl.
£174.38 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000332695

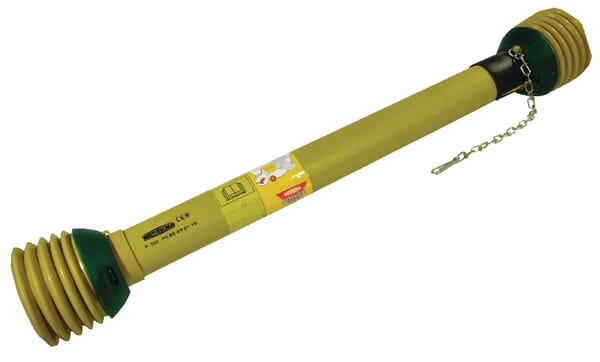

Walterscheid PTO shaft without yokes P500 L: 810mm, P500810OG
£663.69 excl.
£796.43 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000045076
Walterscheid Protective cup 1378019
£90.07 excl.
£108.08 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000222741
Kverneland Hose TH1SC04 with ends FDG0404+FDG0404, mm190 A140692300
£55.22 excl.
£66.26 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000086388

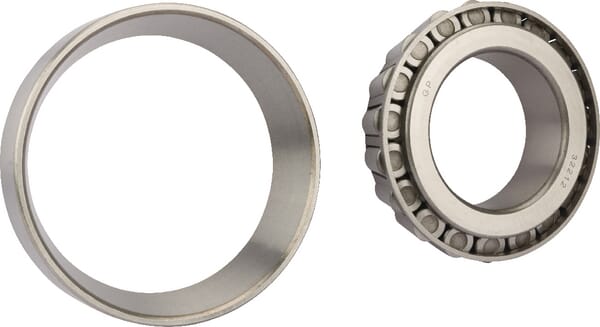

gopart Tapered roller bearing 60x110x29.75mm 32212GP
