£431.27
excl. VAT
£517.52 incl. VAT
£517.52
incl. VAT
£431.27 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Attachment machine side | Quick disconnect yoke |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint length by machine side | 75 mm |
| Cross joint length by tractor side | 75 mm |
| Extra info | Do not use this product at a speed of 1000 rpm. Also consult one of our product specialists for advice. |
| Includes | PTO shaft with shielding, Declaration of conformity, Instruction manual |
| Inner tube large outside diameter | 40 mm |
| Inner tube profile | Ov |
| Inner tube wall thickness | 4 mm |
| Length | 1410 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Max static torque | 2500 N·m |
| Original number equivalent | 1610073 |
| Outer tube large outside diameter | 48 mm |
| Outer tube profile | 1 |
| Outer tube wall thickness | 3 mm |
| Power 1000 rpm | 44 kW |
| Power 540 rpm | 28 kW |
| Product details | Tension side 1-3/8" (6) shaft collar kit, Machine side 1-3/8" (6) collar lock, Lubrication frequency from 50 to 100 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Fulfilling the safety standard EN12965, CE marking available, See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 28 kW, 500 Nm, Values at working angle 5° and service life 1000 hours, LZ = slid in length in mm, from intersection to intersection, Application: Mower, Harvesters, Seeders |
| Profile tube shape | Lemon |
| Protection type | SD15 |
| Size code | W2300 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 15280 g |
| Dimensions | 1700 × 180 × 180 mm |
| Dangerous goods | No |
You might also like
BPA000029200
Walterscheid Cross journal diameter 27x70mm 110300
£51.60 excl.
£61.92 incl.
In stock
Expected to ship on Friday 18 September
BPA000038110

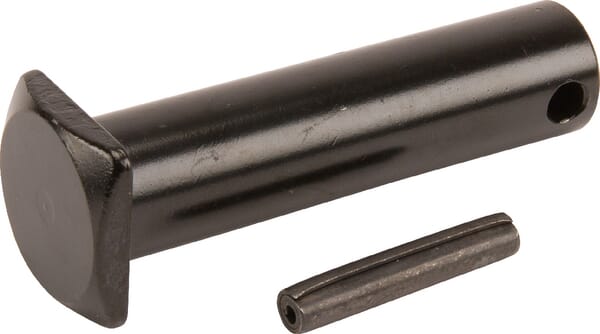

Walterscheid Pin 25x110mm 1206750
