£444.92
excl. VAT
£533.91 incl. VAT
£533.91
incl. VAT
£444.92 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Mower, Harvesters, Soil cultivating machinery |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | PTO shaft with shielding, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 32 mm |
| Cross joint bush diameter by tractor side | 32 mm |
| Cross joint length by machine side | 76 mm |
| Cross joint length by tractor side | 76 mm |
| Inner tube large outside diameter | 49 mm |
| Inner tube profile | 1b |
| Inner tube wall thickness | 4.5 mm |
| Length | 1010 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Max static torque | 4000 N·m |
| Original number equivalent | 1800060 |
| Outer tube large outside diameter | 57.5 mm |
| Outer tube profile | 2a |
| Outer tube wall thickness | 4 mm |
| Power 1000 rpm | 61 kW |
| Power 540 rpm | 39 kW |
| Profile tube shape | Lemon |
| Properties | Tension side 1-3/8" (6) shaft collar kit, Machine side 1-3/8" (6) slide pin, Lubrication frequency from 50 to 100 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Fulfilling the safety standard EN12965, CE marking available |
| Protection type | ST25 |
| Size code | W2400 |

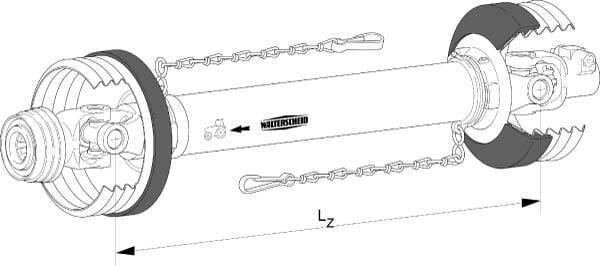

| Technical info | See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 39 kW, 695 Nm, Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm, Values at working angle 5° and service life 1000 hours, LZ = slid in length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 16900 g |
| Dimensions | 1235 × 160 × 160 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000144576

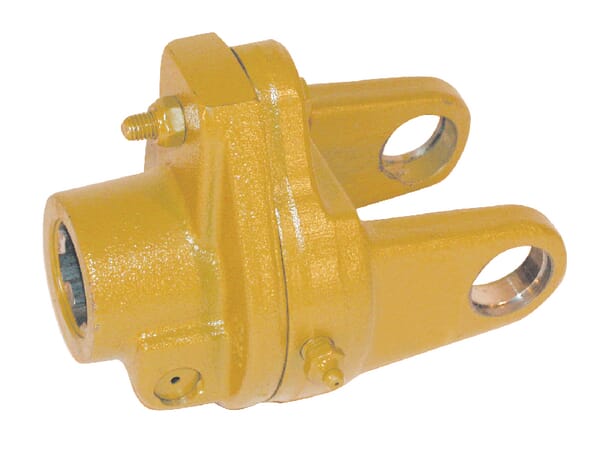

Walterscheid Shearbolt clutch KB61/20 5715718
£367.97 excl.
£441.56 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000084624

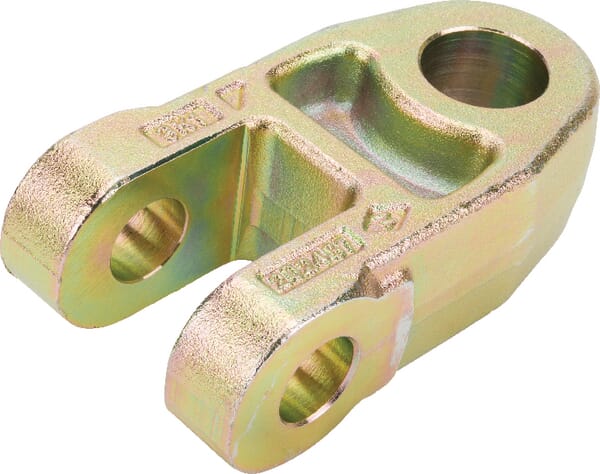

Walterscheid Fork head 35.2x100mm 309144
£161.60 excl.
£193.92 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000244827

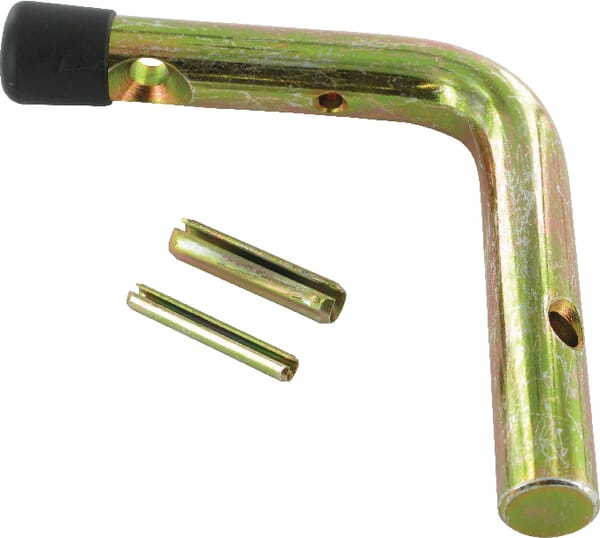

Walterscheid Lever 9100/9400 Cramer CK494005710
£122.16 excl.
£146.59 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000142828
Walterscheid Friction clutch K90 561000890
£722.60 excl.
£867.12 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000400930
Walterscheid PTO shaft W400E L: 1410mm, W400E1410
£373.42 excl.
£448.10 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000244750

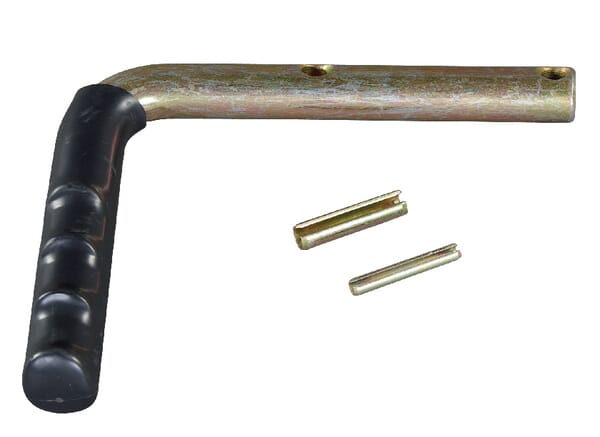

Walterscheid Lever Cramer CK32000070
