£720.12
excl. VAT
£864.14 incl. VAT
£864.14
incl. VAT
£720.12 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Mower, Harvesters, Soil cultivating machinery |
|---|---|
| Attachment machine side | Overrunning clutch |
| Consists of | PTO shaft with shielding, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 32 mm |
| Cross joint bush diameter by tractor side | 32 mm |
| Cross joint length by machine side | 76 mm |
| Cross joint length by tractor side | 76 mm |
| Length | 1060 mm |
| Properties | Tension side 1-3/8" (6) shaft collar kit, Machine side 1-3/8" (6) slide pin, Lubrication frequency from 50 to 100 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Fulfilling the safety standard EN12965, CE marking available |
| Size code | W2400 |

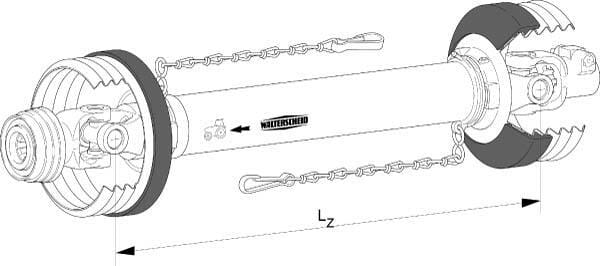

| Technical info | See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 39 kW, 695 Nm, Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm, Values at working angle 5° and service life 1000 hours, LZ = slid in length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 20000 g |
| Dimensions | 1300 × 160 × 160 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000400876

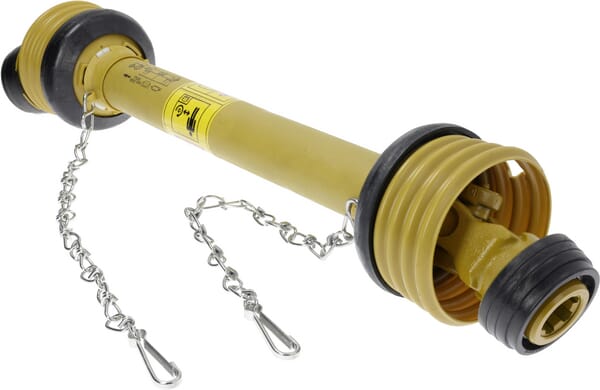

Walterscheid PTO shaft W2600 L: 860mm, W2600860
£1,271.79 excl.
£1,526.15 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000084396

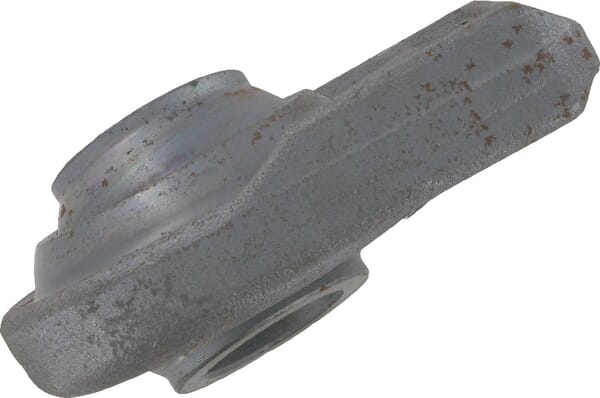

Walterscheid Ball end cat. 2H 28.4 306832
£158.91 excl.
£190.69 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000178287

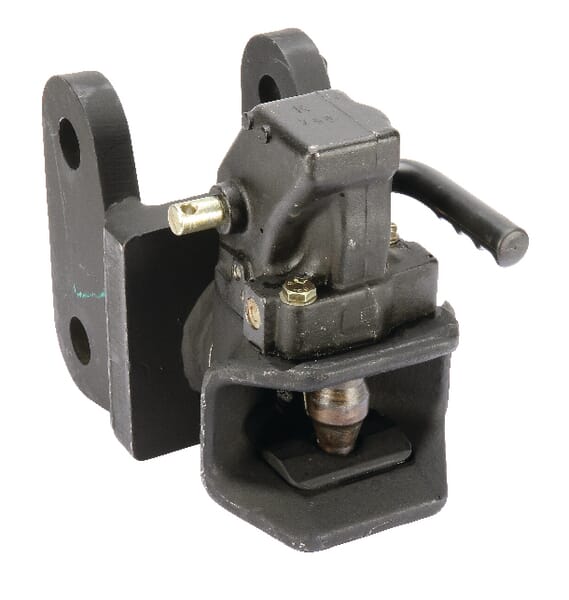

Walterscheid Trailer coupling 142mm 8004199
£2,114.21 excl.
£2,537.05 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000051553
Walterscheid Back-up ring 162016
£13.29 excl.
£15.95 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000172181
Walterscheid Profile tube coated lemon 1G diameter in: 42.6 diameter out: 48x41x2.7mm L: 1610 mm 7516161610
£111.63 excl.
£133.96 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000226134

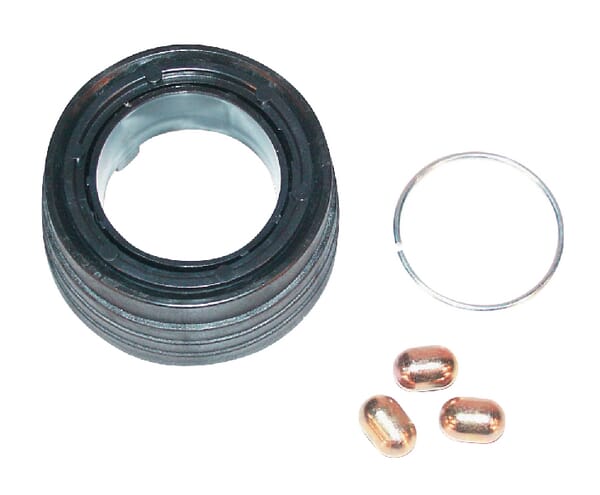

Walterscheid Agraset plastic slide collar (automatic) AG121
