£550.50
excl. VAT
£660.60 incl. VAT
£660.60
incl. VAT
£550.50 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Mower, Harvesters, Soil cultivating machinery |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | PTO shaft with shielding, Declaration of conformity, Instruction manual |
| Cross joint bush diameter by machine side | 32 mm |
| Cross joint bush diameter by tractor side | 32 mm |
| Cross joint length by machine side | 76 mm |
| Cross joint length by tractor side | 76 mm |
| Inner tube large outside diameter | 49 mm |
| Inner tube profile | 1b |
| Inner tube wall thickness | 4.5 mm |
| Length | 1210 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Max static torque | 4000 N·m |
| Original number equivalent | 1800061 |
| Outer tube large outside diameter | 57.5 mm |
| Outer tube profile | 2a |
| Outer tube wall thickness | 4 mm |
| Power 1000 rpm | 61 kW |
| Power 540 rpm | 39 kW |
| Profile tube shape | Lemon |
| Properties | Tension side 1-3/8" (6) shaft collar kit, Machine side 1-3/8" (6) slide pin, Lubrication frequency from 50 to 100 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Fulfilling the safety standard EN12965, CE marking available |
| Protection type | ST25 |
| Size code | W2400 |

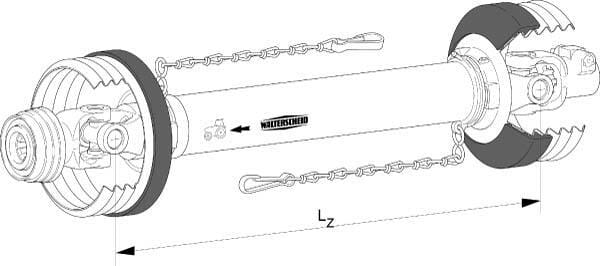

| Technical info | See Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 39 kW, 695 Nm, Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm, Values at working angle 5° and service life 1000 hours, LZ = slid in length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 18900 g |
| Dimensions | 1460 × 175 × 175 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000173893
Walterscheid Profile tube lemon Ov diameter in: 32 diameter out: 40x34.5x4mm L: 2.9m 751100
£107.44 excl.
£128.92 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000029427
Walterscheid Clutch 1114409
£1,379.11 excl.
£1,654.93 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000157588

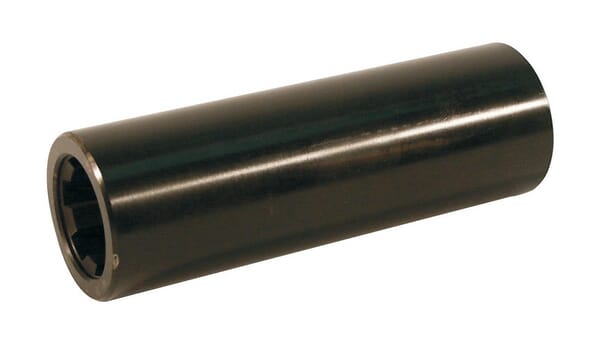

Walterscheid Splined hub 80L 1.3/4-6 6740123
£97.06 excl.
£116.47 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000065739
Walterscheid Toplink retainer 285mm 203616
£119.80 excl.
£143.76 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000400721
Walterscheid PTO shaft W2100 L: 560mm, W2100560
£335.22 excl.
£402.26 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000043829

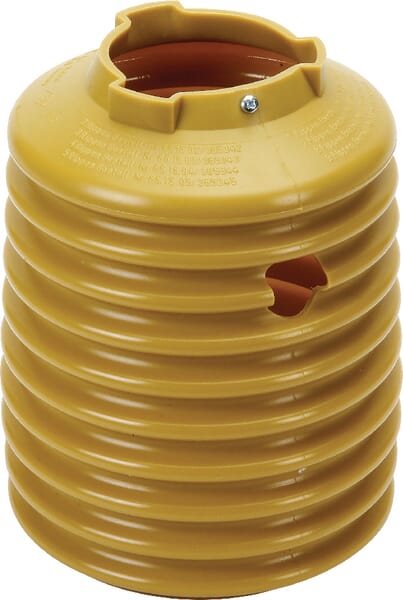

Walterscheid Guard cone 1365350
