Product details
| Attachment machine side | Quick disconnect yoke |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 32 mm |
| Cross joint bush diameter by tractor side | 32 mm |
| Cross joint length by machine side | 76 mm |
| Cross joint length by tractor side | 76 mm |
| Inner tube large outside diameter | 51 mm |
| Inner tube profile | S4LH |
| Inner tube wall thickness | 6 mm |
| Length | 1210 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Max static torque | 4000 N·m |
| Original number equivalent | 1800066 |
| Outer tube large outside diameter | 61 mm |
| Outer tube profile | S5 |
| Outer tube wall thickness | 4.5 mm |
| Power 1000 rpm | 61 kW |
| Power 540 rpm | 39 kW |
| Profile tube shape | Star |
| Protection type | ST25 |
| Size code | W2400 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 22500 g |
| Dimensions | 1650 × 160 × 160 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000342473
Walterscheid Wide angle PTO shaft PWE580910361830
£1,479.94 excl.
£1,775.93 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000067160

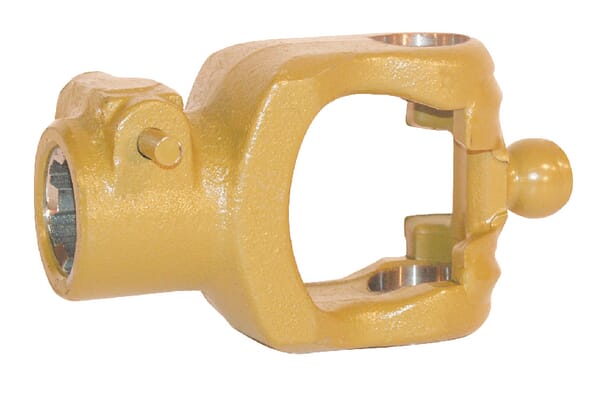

Walterscheid Yoke, quick disconnect, 1-3/8"-6 spline, W2380 2110810
£189.90 excl.
£227.88 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000143531
Walterscheid K96/4 Clamp bolt hub 1.3/4-6 spline 563118
£436.54 excl.
£523.85 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000400155

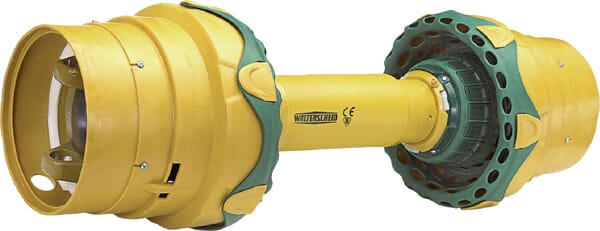

Walterscheid PTO shaft without yokes WWZ 2580 L: 1210mm, WWZ25801210OG
£1,256.34 excl.
£1,507.61 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000147327
Walterscheid Spring set K64/1 80 daNM 59450080
£200.52 excl.
£240.62 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000038010

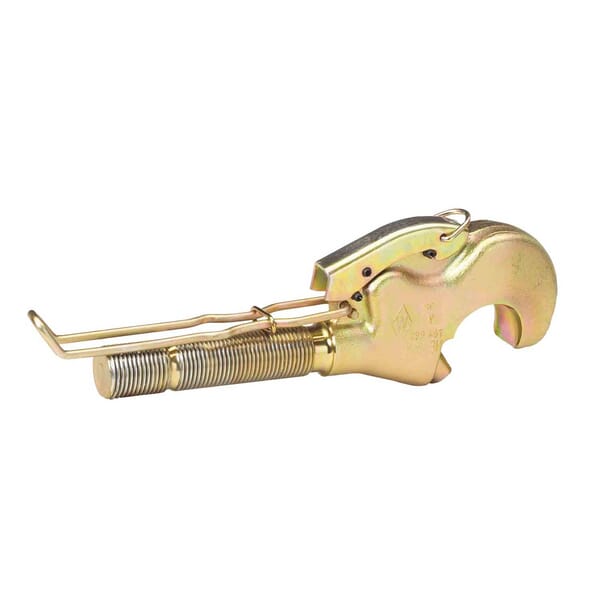

Walterscheid Toplink hook 1204899
